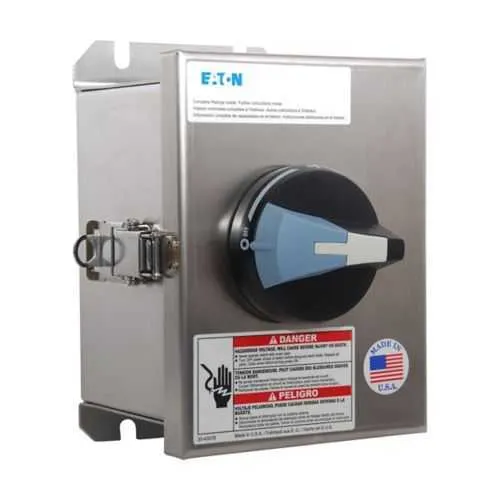

Eaton ER54016UW Enclosed Rotary Disconnect Switch - 600 V
Part Number: ER54016UW
Quick Summary
Eaton enclosed rotary disconnect switch provides safe electrical isolation for industrial control panels and equipment. This design addresses downtime and safety concerns by delivering a rugged, sealed solution that keeps operators protected from dust, moisture, and arc exposure. The unit carries CSA Certification and UL Listing, coupled with a NEMA 4X stainless steel enclosure, ensuring reliability in harsh environments. With the R-Series platform and a 600 V rating, it offers scalable protection for motor loads while supporting common control architectures. For OEMs and integrators, the compact footprint and robust construction translate to easier installation, reduced panel space, and consistent performance across multiple line voltages.
Product Information
Extended Description
ER54016UW Eaton: Eaton enclosed rotary disconnect switch, 16A, NEMA 4X, Stainless steel, Max HP:3, 5, 10, 10 hp (@208,240,480,600 V), Four-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER54016UW
UPC
786685493695
Product Length/Depth
10.4 in
Product Height
6.7 in
Product Width
7.2 in
Product Weight
6.1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Enclosure
NEMA 4X
Enclosure material
Stainless steel
Number of poles
Four-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
16A
HP rating - max
3, 5, 10, 10 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER54016UW
Feature → Business Impact → Application: Four-pole, enclosed rotary non-fusible switch delivers clean, definitive circuit isolation, reducing arc flash risk and enabling safe service access for maintenance teams. This translates to improved safety compliance and lower incident-related downtime in packaging lines and conveyors. Application: Use in industrial machinery where precise motor disconnects are required and space within the control panel is at a premium. Feature → Business Impact → Application: 16 A amperage rating with HP up to 3, 5, and 10 at 208–600 V supports a wide range of motor sizes, enabling one disconnect for multi-voltage drives and reducing inventory costs. Application: Ideal for pumps and fans in process industries that run at several voltages. Feature → Business Impact → Application: NEMA 4X stainless steel enclosure provides washdown and corrosion resistance, extending service life in rugged environments. Application: Food, beverage, and chemical processing lines where cleanliness and durability matter. Feature → Business Impact → Application: R-Series enclosure and four-pole configuration simplify installation and interoperability with standard motor starters and motor control centers. Application: OEM panels and retrofit projects seeking reliable, field-proven isolation devices. Feature → Business Impact → Application: Compact dimensions (10.4 in depth, 6.7 in height, 7.2 in width) and 6.1 lb weight support easy panel mounting and modular upgrading without large enclosure changes. Application: Space-constrained control panels in OEM equipment. Feature → Business Impact → Application: CSA Certified and UL Listed provide regulatory confidence and supplier qualification benefits. Application: Automotive, packaging, and process industries requiring formalized compliance and traceability. These benefits are realized through straightforward installation, proven protection, and a product roadmap that aligns with safety and reliability objectives.
Get a Quick Quote for a Eaton ER54016UW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER54016UW?
Enquire Now
FAQs
The ER54016UW is designed for industrial control panels requiring safe isolation with a four-pole design and a 600 V rating. It fits standard panel spaces and its compact dimensions (10.4 in depth, 6.7 in height, 7.2 in width) simplify mounting alongside other motor control components. Its stainless steel NEMA 4X enclosure is ideal for washdown environments, reducing enclosure-related clearance concerns during retrofit or OEM installations.
ER54016UW provides a 16 A amperage rating and HP compatibility of 3, 5, and 10 hp at 208, 240, 480, and 600 V. This enables versatile motor control across multiple line voltages, allowing a single disconnect device to support diverse equipment such as conveyors, pumps, and fans within the same installation or across a family of machines.
Yes. The unit is CSA Certified and UL Listed, confirming regulatory compliance and supplier reliability. Its NEMA 4X enclosure and stainless steel construction further reinforce suitability for harsh environments, helping to meet industry safety and quality requirements in sectors like manufacturing, packaging, and process industries.
By providing definitive, lockable isolation with a robust NEMA 4X enclosure, the ER54016UW reduces arc flash exposure and protects against dust, moisture, and corrosion. The four-pole design simplifies wiring and maintenance, while its warranty provisions align with Eaton's service policy, offering one year from installation or eighteen months from shipment to support lifecycle planning.
Considerations include ensuring the panel space accommodates the 10.4 in length, 6.7 in height, and 7.2 in width, and that your motor load aligns with the 16 A / up to 10 hp ratings at the intended voltages. The four-pole, R-Series device integrates with standard motor control components and fits within washdown environments due to its 4X enclosure and stainless steel construction.
