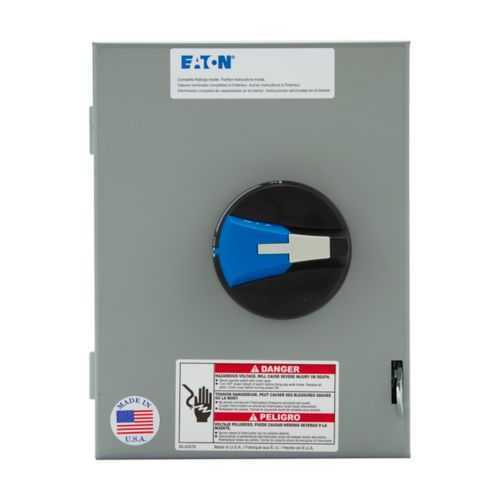

Eaton ER54016UX Enclosed Rotary Disconnect - UL Listed
Part Number: ER54016UX
Quick Summary
The Eaton enclosed rotary disconnect switch ER54016UX delivers safe isolation for three-phase motor and control circuits in industrial panels. This device helps prevent accidental energization during maintenance by providing robust, weather-resistant isolation in a compact form. With UL Listed and CSA Certified marks, it demonstrates reliability and regulatory compliance for demanding environments. Rated at 16A and 600V, it supports multiple motor HP ranges up to 10 hp at higher voltages, while its NEMA 4X, non-metallic enclosure offers corrosion resistance and long service life. The combination of safety, durability, and straightforward wiring translates to reduced downtime and a lower total cost of ownership in automation and control applications.
Product Information
Extended Description
ER54016UX Eaton: Eaton enclosed rotary disconnect switch, 16A, NEMA 4X, Non-metallic, Max HP:3, 5, 10, 10 hp (@208,240,480,600 V), Four-pole, Product category: enclosed rotary non-fusible, R-Series, 600 V
Product Name
Eaton enclosed rotary disconnect switch
Catalog Number
ER54016UX
UPC
786685493732
Product Length/Depth
10.4 in
Product Height
6.7 in
Product Width
7.8 in
Product Weight
5.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Enclosure
NEMA 4X
Enclosure material
Non-metallic
Number of poles
Four-pole
Series
R-Series
Type
Enclosed rotary disconnect
Amperage Rating
16A
HP rating - max
3, 5, 10, 10 hp (@208,240,480,600 V)
Voltage rating
600 V
Product Category
Enclosed rotary non-fusible
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Switching Devices Flex Center
Eaton Specification Sheet - ER54016UX
Feature → Business Impact → Application: The ER54016UX is a four-pole enclosed rotary disconnect with a non-fusible design that ensures safe, deliberate de-energization of motor circuits. This enhances personnel safety and reduces the risk of arc flash during maintenance, which translates to safer plant operations and improved compliance in electrical safety programs. In practice, it supports machine control cabinets and panel installations where reliable isolation is essential for servicing and startup sequences. Feature → Business Impact → Application: The NEMA 4X enclosure is non-metallic and weather-resistant, delivering protection in both indoor and exposed environments. This reduces enclosure corrosion and maintenance costs while extending service life in harsh locations, such as wash-down areas or dusty production lines. It is well-suited for food & beverage, chemical processing, and outdoor machinery control panels. Feature → Business Impact → Application: With 600 V voltage rating and HP ratings up to 10 hp at 208–600 V, the ER54016UX provides broad motor compatibility for typical industrial drives and equipment, improving installation flexibility and reducing part variety. It streamlines procurement for multiple line applications, including conveyors and packaging systems. Feature → Business Impact → Application: UL Listed and CSA Certified compliance assures customers and inspectors of meeting recognized safety and performance standards, simplifying audits and helping procurement teams justify the purchase as a compliant power-switching device. Feature → Business Impact → Application: The compact 10.4 in x 6.7 in x 7.8 in footprint and 5.5 lb weight enable easy mounting in compact control panels or retrofit projects, improving enclosure utilization and easing field installation for retrofits in aging systems. This is especially beneficial for OEMs integrating new control logic with existing mechanicals. Warranty and support from Eaton further reduce risk by providing standard coverage and access to spec sheets and documentation for installation and maintenance planning.
Get a Quick Quote for a Eaton ER54016UX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ER54016UX?
Enquire Now
FAQs
The ER54016UX is designed for four-pole, non-fusible isolation within NEMA 4X enclosures. Ensure mounting in a suitable control panel or enclosure with adequate clearance for wiring and operation. The device is UL Listed and CSA Certified, supporting compliant installations. Verify terminal accessibility, spacing, and voltage compatibility (up to 600 V) to ensure safe wiring and dependable operation in your automation system.
ER54016UX provides a 16 A amperage rating with HP ratings of 3, 5, 10, and 10 hp across voltages of 208, 240, 480, and 600 V. It has a 600 V voltage rating and a four-pole configuration in an enclosed rotary non-fusible design. This makes it suitable for controlling three-phase motors and associated equipment in industrial environments.
Yes, the ER54016UX uses a NEMA 4X enclosure with non-metallic construction, providing weather and corrosion resistance appropriate for harsh environments. While it is designed for rugged applications, always verify installation conditions such as exposure, wash-down requirements, and chemical exposure to ensure the enclosure type matches site needs.
The ER54016UX is UL Listed and CSA Certified, indicating compliance with recognized safety and performance standards. These certifications streamline regulatory approvals, support safer maintenance practices, and aid in procurement by ensuring the device meets established electrical protection criteria for industrial equipment.
Eaton provides a warranty of one year from installation or eighteen months from shipment, whichever occurs first. Additionally, customers have access to Eaton’s specification sheets and product resources to assist with installation planning, maintenance planning, and troubleshooting, helping to maximize uptime and return on investment.
