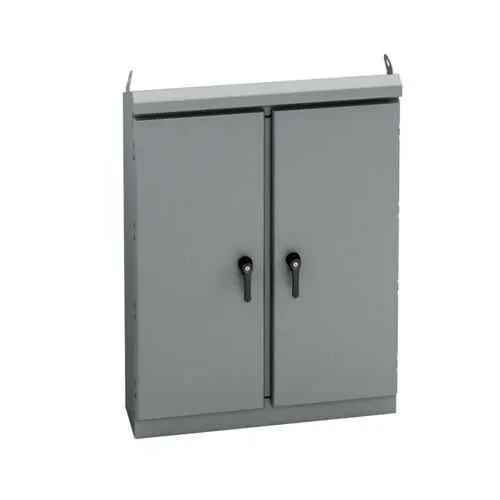

Eaton ES-606012-4 Enclosures for Ground Mount - NEMA 4
Part Number: ES-606012-4
Quick Summary
Eaton ES-606012-4 Enclosures protect electrical control panels in industrial facilities, delivering rugged NEMA 4 protection for demanding environments. Operators often face dust, moisture, and space constraints that threaten uptime during routine maintenance. It carries UL 508A and NEMA ratings, with a weather-sealed gasket and a hinged cover built for outdoor and harsh indoor locations. The ground-mount design, large double doors, and 3-point latching handle support quick service and secure access, while the carbon steel 12-gauge shell offers durability at scale. For procurement and installation teams, this enclosure pairs predictable performance with compatibility to standard mounting accessories and security provisions, reducing downtime and compliance risk.
Product Information
Extended Description
ES-606012-4 Eaton: Eaton B-Line series ground mounted panel enclosure, 60" height, 12" length, 60" width, NEMA 4, Hinged cover, ES4 enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4 panel enclosures
Catalog Number
ES-606012-4
UPC
782051383454
Product Length/Depth
12 in
Product Height
60 in
Product Width
60 in
Product Weight
410 lb
Certifications
UL 508A NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
ES4 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
4
Country of origin
US
Feature: Carbon steel, 12 gauge enclosure shell delivers high structural integrity for demanding environments. Benefit: Withstands impact, vibration, and prolonged exposure in industrial plants, reducing panel damage and service calls. Application: Plant floors and outdoor yards where equipment is subjected to harsh conditions. Long-tail keywords woven in: carbon steel enclosure, 12 gauge wall, rugged electrical housing. Feature: NEMA 4 rating with closed cell neoprene gasket and hinged cover provides effective ingress protection. Benefit: Keeps dust, water and humidity out, extending component life and maintaining system performance. Application: Outdoor switchgear rooms and damp indoor spaces. Long-tail keywords: NEMA 4 enclosure, weather-resistant cabinet, gasket seal. Feature: Ground mounting with large double doors and 3-point latching handle enables fast installation and reliable access. Benefit: Simplifies wiring and maintenance workflows, minimizes downtime, and enhances operator safety. Application: Service panels in tightly spaced plant layouts. Long-tail keywords: ground-mount enclosure, hinged doors, 3-point latching. Feature: Key lock padlock provision adds security without complicating access control. Benefit: Reduces tampering risk while preserving quick service for authorized personnel. Application: Secure electrical panels in shared facilities. Long-tail keywords: lockable enclosure, security features, padlock provision. Feature: UL 508A and NEMA compliance along with ANSI 61 gray finish signal durable, code-aligned installations. Benefit: Lowers compliance risk and streamlines procurement for regulated industries. Application: Electrical protection enclosures for manufacturing and facilities management. Long-tail keywords: UL 508A compliant, NEMA rated, ANSI 61 gray finish.
Get a Quick Quote for a Eaton ES-606012-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-606012-4?
Enquire Now
FAQs
The ES-606012-4 is designed for ground mounting with no internal mounting provisions, simplifying external installation. It supports standard factory or field-installed mounting accessories and accommodates large, heavy panels up to the 410 lb weight. Confirm site clearance and anchor requirements during planning to ensure stable support and service accessibility.
The enclosure measures 60 inches in height and width with a 12 inch depth, providing a tall, wide access opening for easy component installation. The unit weighs approximately 410 pounds, reflecting its robust carbon steel 12-gauge construction and reinforced double-door design for durability in demanding environments.
Yes. With a NEMA 4 rating, weather-sealed gasket, and a hinged cover, this enclosure is designed to resist rain, dust, and hose-directed water in outdoor and semi-exposed spaces. Use in covered outdoor areas or protected indoor locations to maximize service life and minimize maintenance needs.
Security is addressed with a key lock padlock provision and a 3-point latching handle, ensuring secure closure while allowing authorized personnel quick access for maintenance. Large double doors also enhance ease of servicing, reducing downtime when wiring and components need to be accessed.
The enclosure complies with UL 508A and NEMA standards, confirming electrical protection performance and safety. This reduces compliance risk for regulated installations and supports consistent performance across industrial environments where durable enclosures are required.
