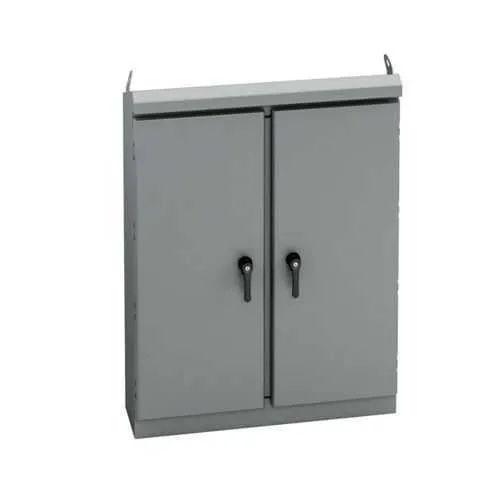

Eaton ES-606016-4 Panel Enclosure - NEMA 4 ES4 Ground Mount
Part Number: ES-606016-4
Quick Summary
ES-606016-4 panel enclosure from Eaton is a rugged, ground-mounted solution for harsh industrial environments. Designers often struggle with weather sealing, limited access, and difficult wiring in space-constrained control panels. This ES4 enclosure delivers UL 508A/NEMA 4 compliance and a robust carbon steel build, finished in ANSI 61 gray for durability. The combination of 60 in height, 60 in width, and 16 in depth supports sizable control wiring and equipment while enabling straightforward maintenance. With a hinged cover, 3-point latching handle, and optional key lock padlock provision, it balances accessibility and security for reliable, long-term operation in manufacturing, processing, and utility applications.
Product Information
Extended Description
ES-606016-4 Eaton: Eaton B-Line series ground mounted panel enclosure, 60" height, 16" length, 60" width, NEMA 4, Hinged cover, ES4 enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4 panel enclosures
Catalog Number
ES-606016-4
UPC
782051383461
Product Length/Depth
16 in
Product Height
60 in
Product Width
60 in
Product Weight
441.1 lb
Certifications
UL 508A NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
ES4 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
4
Country of origin
US
Feature → Business Impact → Application: Large double door with hinged cover enables fast, unobstructed access to interior components, reducing downtime during maintenance and panel wiring. This translates to higher efficiency on the plant floor and easier future upgrades for control systems in facilities using redundant or expandable layouts. Application: factory automation enclosures and process lines requiring frequent wiring changes and quick inspections.Feature → Business Impact → Application: Carbon steel construction with 12 gauge wall thickness provides rigid enclosure integrity and resistance to physical impact, delivering longer service life in demanding environments. This supports lower replacement costs and predictable performance in harsh environments such as oil and gas, metals processing, and packaging lines. Application: rugged industrial control panels near loading docks and production lines.Feature → Business Impact → Application: NEMA 4 rating with closed cell neoprene gasket offers reliable weather and dust resistance, improving component protection and reducing ingress-related faults. This mitigates corrosion risks and reduces unscheduled maintenance in outdoor or semi-enclosed spaces. Application: outdoor electrical rooms, wash-down areas, and near equipment subject to splashing or high humidity.Feature → Business Impact → Application: Ground mounting with no internal mounting provisions simplifies field installation and external bracket integration, saving time and minimizing mounting conflicts. This supports faster project readiness for new lines or retrofits where concrete or structural mounts are already in place. Application: retrofit projects and new-build control panels in manufacturing environments.Feature → Business Impact → Application: 3-point latching handle and key lock padlock provision provide secure access without compromising serviceability, aligning with safety and regulatory requirements while enabling controlled maintenance. This reduces unauthorized access risk and supports OSHA compliance in critical process areas. Application: control cabinets handling sensitive instrumentation and critical drive systems on the plant floor.
Get a Quick Quote for a Eaton ES-606016-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-606016-4?
Enquire Now
FAQs
The ES-606016-4 is designed for ground mounting with no internal mounting provisions. This simplifies installation by allowing external mounting brackets or concrete foundations to be used, enabling straightforward integration into existing plant structures and minimizing internal hardware clearance conflicts during panel setup.
Yes. The enclosure carries UL 508A recognition and a NEMA 4 rating, providing appropriate protection against dust, water ingress, and corrosion in outdoor or wash-down environments. This combination supports safe operation of industrial control panels in demanding facilities while helping meet compliance requirements.
Best suited for factory automation and process control where high visibility, secure access, and durable protection are needed. Its large dimensions accommodate sizable control components, while the NEMA 4 rating and neoprene gasket protect against weather and contaminants in outdoor units, loading docks, or semi-enclosed spaces.
Plan for sufficient installation space to accommodate the 60 in width and height, with room for door clearance and maintenance access. The unit weighs about 441.1 lb, so use adequate lifting equipment. Ensure compatible external mounting brackets and secure the enclosure to a solid base to meet stability and seismic requirements if applicable.
The enclosure’s corrosion-resistant carbon steel body, closed-cell neoprene gasket, and hinged doors reduce ingress-related faults and maintenance frequency. Its secure 3-point latch and padlock provisions support safer, longer service life for critical controls, lowering downtime and replacement costs over the asset life.
