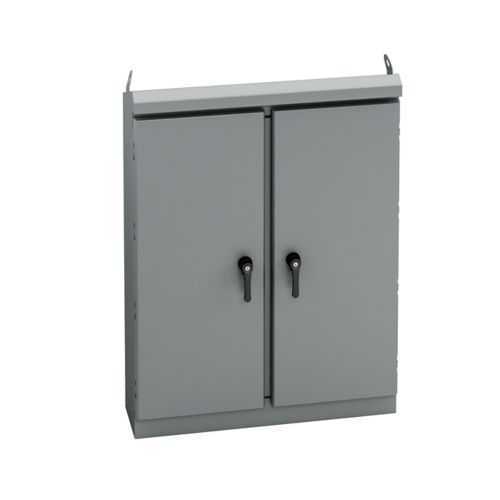

Eaton ES-606024-4 Panel Enclosures - NEMA 4 Rated
Part Number: ES-606024-4
Quick Summary
The Eaton ES-606024-4 panel enclosure protects electrical gear in rugged environments, offering a reliable ground-mounted solution for industrial control panels. Engineers often struggle with weatherproofing, theft risk, and difficult site access; this enclosure mitigates those pains with a hinged cover and a 3-point latching handle. UL 508A certification and a NEMA 4 rating back safety and compliance, while carbon steel construction provides long-term durability in harsh environments. In addition, its large double doors and ground-mount design support quick wiring, easy maintenance, and secure installations, helping to maximize uptime and streamline panel upgrades. This enclosure aligns with industrial automation needs while supporting efficient, scalable control system deployment.
Product Information
Extended Description
ES-606024-4 Eaton: Eaton B-Line series ground mounted panel enclosure, 60" height, 24" length, 60" width, NEMA 4, Hinged cover, ES4 enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4 panel enclosures
Catalog Number
ES-606024-4
UPC
782051383485
Product Length/Depth
24 in
Product Height
60 in
Product Width
60 in
Product Weight
504.4 lb
Certifications
UL 508A NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
ES4 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
4
Country of origin
US
Feature: Ground-mounted ES4 enclosure with hinged cover. Business Impact: Simplifies site prep and installation while providing secure, accessible access for maintenance. Application: Outdoor process facilities and manufacturing floors where floor mounting is preferred. Feature: Large 60 in x 60 in x 24 in footprint with large double doors. Business Impact: Enables rapid wiring, testing, and equipment replacement, reducing downtime. Application: Control panels with frequent diagnostics or reconfiguration in production environments. Feature: Carbon steel construction with 12 gauge walls and painted ANSI 61 gray finish. Business Impact: Delivers robust mechanical protection and a durable, low-maintenance exterior that resists corrosion and wear. Application: Harsh industrial spaces, chemical plants, and facilities needing long service life. Feature: NEMA 4 and UL 508A certifications. Business Impact: Ensures regulatory compliance and reliable weather resistance, reducing risk and inspection time. Application: Electrical distribution and automation enclosures in regulated facilities. Feature: Key lock padlock provisions and 3-point latching handle. Business Impact: Strengthens security and seal integrity, lowering tampering risk and routine maintenance time. Application: Plant floors, sub-panels, and critical control cabinets requiring secure access.
Get a Quick Quote for a Eaton ES-606024-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-606024-4?
Enquire Now
FAQs
This unit is designed for ground mounting and does not include internal mounting provisions. For a secure installation on concrete, prepare a clean, level base and anchor through an external base or pad system compatible with the enclosure footprint. Verify clearance for door operation and service access during the design phase to minimize future rework.
The enclosure uses carbon steel with 12 gauge walls and a painted ANSI 61 gray finish. It carries UL 508A certification and a NEMA 4 rating, providing weather resistance and electrical safety suitable for indoor and outdoor industrial environments. The hinged cover with a 3-point latching handle supports secure access and reliable sealing.
Yes. The NEMA 4 rating indicates protection against water ingress and weather elements, making it appropriate for outdoor installations and damp indoor spaces. Pairing the weather-resistant enclosure with a secure locking system helps maintain panel integrity in challenging environments while supporting compliance with industrial standards.
It includes locking provisions for a key lock padlock and a 3-point latching handle, enhancing closure integrity and security against tampering. This combination is ideal for critical control cabinets in manufacturing or process facilities where access control and equipment protection are essential.
The carbon steel construction and weather-resistant finish reduce corrosion and repaint needs, extending service life and lowering lifecycle costs. Large doors improve access for wiring and testing, shortening maintenance windows and downtime. The UL 508A and NEMA 4 compliance also reduce risk during audits and upgrades, supporting a quicker path to ROI.
