Eaton ES-726016-4XSS6 Enclosures - NEMA 4X
Part Number: ES-726016-4XSS6
Quick Summary
Eaton ES-726016-4XSS6 panel enclosures protect control systems in harsh industrial settings. End users often struggle with corrosion, moisture, and unplanned downtime, which can derail production schedules. This unit carries UL 508A, CSA C22.2, and NEMA 4X certifications, underscoring electrical safety, standards compliance, and outdoor readiness. Designed for ground-mount installations with a large double-door configuration and a 316 stainless steel body, it delivers long-term durability. The hinged cover, 3-point latching and stainless handle support reliable access control while protecting critical components. For project teams, this enclosure reduces maintenance cycles and extends service life through corrosion resistance and robust gasket sealing.
Product Information
Extended Description

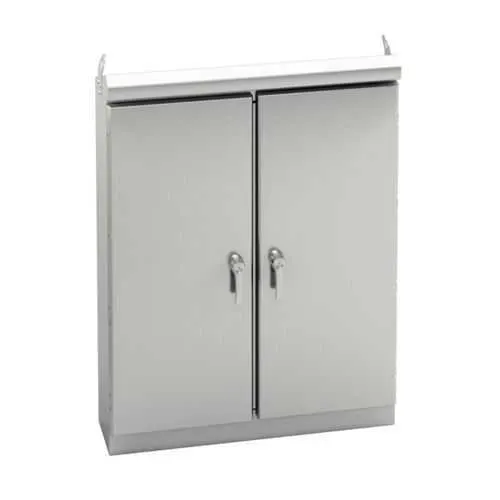

ES-726016-4XSS6 Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 16" length, 60" width, NEMA 4X, Hinged cover, ES-4XSS6 enclosure, Ground mount, Large double door, No mounting provisions, 316 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-726016-4XSS6
UPC
782051383348
Product Length/Depth
16 in
Product Height
72 in
Product Width
60 in
Product Weight
537.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES-4XSS6 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction with 12 gauge wall thickness provides exceptional corrosion resistance in washdown and outdoor environments. Benefit: Prolonged service life and lower total cost of ownership due to reduced corrosion-related failures. Application: Outdoor equipment rooms and coastal facilities where environments demand durable enclosures. Feature: Large double-door, 72 inch tall by 60 inch wide configuration with a 16 inch depth enables easier access and accommodates larger control panels. Benefit: Faster installation, simplified maintenance, and improved operator efficiency during commissioning. Application: Industrial control panels requiring expanded mounting space and straightforward servicing. Feature: Closed-cell neoprene gasket and NEMA 4X rating deliver superior environmental protection. Benefit: Reliable protection against water, dust, and ingress, reducing field service calls. Application: Washdown zones and humid facilities. Feature: Stainless steel handle with 3-point latching and key lock padlock provisions enhance security and tamper resistance. Benefit: Enhanced safety and compliance with access controls for critical systems. Application: Manufacturing floors and utility installations where panel security matters. Feature: Ground mounting with no mounting provisions and a robust 537.1 lb frame signals a rugged, stable installation. Benefit: Predictable performance in rugged environments with fewer mounting failures. Application: Permanent installations in outdoor or semi-enclosed spaces where stability is critical. Feature: UL 508A, CSA C22.2 and NEMA 4X certifications provide recognized compliance and safety assurances. Benefit: Streamlined procurement and faster project approvals. Application: Electrical assemblies in regulated industrial settings where standards adherence is mandatory.
Get a Quick Quote for a Eaton ES-726016-4XSS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-726016-4XSS6?
Enquire Now
FAQs
The ES-726016-4XSS6 is designed for ground mounting with no dedicated internal mounting provisions. External brackets or base frames are typically used to secure the enclosure. This approach often reduces on-site fabrication time and simplifies alignment, contributing to faster commissioning and stable long-term installation.
316 stainless steel resists corrosion from chemicals, saltwater, and harsh washdown environments. For panels housing electrical controls, this material extends service life, reduces maintenance cycles, and minimizes replacement costs, especially in food, beverage, or pharmaceutical facilities where cleanliness and durability are critical.
Yes. UL 508A and CSA C22.2 compliance confirms electrical safety, quality management, and adherence to recognized standards. Coupled with NEMA 4X protection, this support helps you meet regulatory requirements and obtain approvals for outdoor or washdown installations without compromising performance.
Ideal for outdoor control panels, process lines, and utility enclosures exposed to moisture, dust, and cleaning regimes. The 316 stainless body, NEMA 4X rating, and gasket sealing make it suitable for washdown zones, coastal facilities, and harsh industrial plants requiring secure access and long-term durability.
Plan for ground-based mounting with compatible external brackets, ensure gasket integrity during maintenance, and utilize the key lock padlock provisions for tamper resistance. The combination of robust materials, secure latching, and corrosion resistance reduces service frequency and extends the interval between replacements, yielding measurable ROI over the lifecycle.
