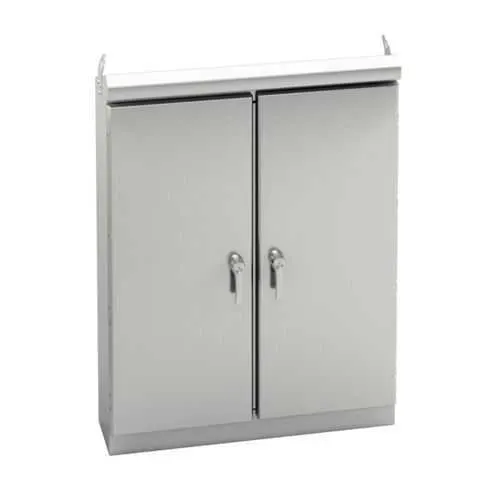

Eaton ES-726020-4XS Panel Enclosures - NEMA 4X
Part Number: ES-726020-4XS
Quick Summary
Eaton ES-726020-4XS panel enclosures protect electrical controls in outdoor, washdown, and harsh production environments. Facility teams often wrestle with corrosion, security concerns, and downtime when selecting enclosures that can endure demanding conditions. With UL 508A, CSA C22.2, and NEMA 4X ratings, this ES4XS unit delivers compliant protection, robust corrosion resistance, and reliable access control. Constructed from 304 stainless steel with a closed cell neoprene gasket and a 12‑gauge wall, it helps reduce maintenance costs and extend service life. Ground mounting supports fast, secure installation, while the large double doors and stainless 3‑point latching streamline wiring, inspection, and routine servicing for system integrators and maintenance teams.
Product Information
Extended Description
ES-726020-4XS Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 20" length, 60" width, NEMA 4X, Hinged cover, ES4XS enclosure, Ground mount, Large double door, No mounting provisions, 304 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-726020-4XS
UPC
782051383195
Product Length/Depth
20 in
Product Height
72 in
Product Width
60 in
Product Weight
573.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES4XS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
The ES-726020-4XS uses 304 stainless steel with a 12 gauge wall, delivering exceptional corrosion resistance and long service life for outdoor and washdown environments, reducing replacement costs and downtime. This enclosure carries a UL 508A and CSA C22.2 certified profile with a NEMA 4X rating, ensuring reliable protection against dust, water, and chemical exposure while meeting essential electrical safety standards. The hinged cover, large double doors, and stainless steel handle with 3-point latching provide secure, easy access for maintenance crews, improving throughput during inspections and wiring tasks. Ground mounting simplifies installation on factory floors or outdoor slabs, while the closed cell neoprene gasket maintains a tight seal in varying temperatures. The absence of mounting provisions gives installers flexibility to design a base solution tailored to site-specific needs, boosting overall project efficiency. In practice, this enclosure supports scalable, compliant, and cost-effective control room or outdoor panel installations across process industries, food and beverage, water treatment, and stakeholders seeking durable, high‑confidence protection.
Get a Quick Quote for a Eaton ES-726020-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-726020-4XS?
Enquire Now
FAQs
This model is designed for ground mounting with no mounting provisions included, so you can integrate it with a base or concrete anchors tailored to your site requirements.
Height 72 in, width 60 in, depth 20 in, with a weight of 573.5 lb. It features 12 gauge 304 stainless steel construction and a #4 brushed finish.
Yes. It carries a NEMA 4X rating and is built from corrosion-resistant 304 stainless steel, with a gasketed hinged cover suitable for washdown and harsh outdoor conditions.
It offers a key lock padlock provision and a stainless steel handle with 3-point latching to secure access during routine maintenance and inspections.
Ideal for outdoor control panels in process industries, water treatment, chemical processing, and food & beverage environments where corrosion resistance, durability, and compliant protection are critical.
