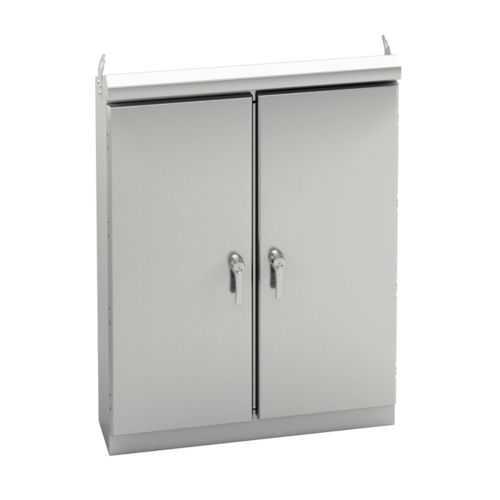

Eaton ES-727212-4XS Enclosures - NEMA 4X 304 Stainless
Part Number: ES-727212-4XS
Quick Summary
Eaton B-Line 4X panel enclosures protect electrical gear in harsh industrial environments. Engineers often wrestle with corrosion, moisture ingress, and difficult service access in outdoor or rugged spaces. UL 508A, CSA C22.2 and NEMA 4X ratings ensure code-compliant, reliable protection for critical controls. This stainless steel enclosure minimizes rust and maintenance while enabling fast, safe servicing. For integrators and maintenance teams, the ground-mounted ES-727212-4XS translates to lower lifecycle costs, fewer field calls, and predictable performance in demanding installations.
Product Information
Extended Description
ES-727212-4XS Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 12" length, 72" width, NEMA 4X, Hinged cover, ES4XS enclosure, Ground mount, Large double door, No mounting provisions, 304 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-727212-4XS
UPC
782051383201
Product Length/Depth
12 in
Product Height
72 in
Product Width
72 in
Product Weight
575.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES4XS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
Material and corrosion resistance drive long service life and reduced replacement costs. The 304 stainless steel construction with a 12-gauge wall delivers durable protection in dirty, wet, or saline environments, enabling equipment to operate reliably with minimal upkeep. Application-wise, this makes it suitable for outdoor control panels, washdown areas, and coastal facilities, where corrosion resistance directly correlates to uptime. The large double doors and 72 in height provide unimpeded access for wiring, improving installation speed and reducing field labor. In dense or complex panels, the 12 in depth balances space with ease of cable routing, boosting installation efficiency and reducing fault-causing tight bends. For projects requiring robust enclosures, the ES4XS's ground-mount design simplifies site integration and supports quick retrofits in existing facilities. Long-term cost of ownership improves due to fewer rust-related service calls and extended intervals between maintenance.
Get a Quick Quote for a Eaton ES-727212-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-727212-4XS?
Enquire Now
FAQs
The ES-727212-4XS is a ground-mounted enclosure with no mounting provisions for wall or pole mounting. This design simplifies outdoor installation on prepared slabs or concrete bases and reduces the need for additional mounting accessories. For retrofit projects, plan a dedicated mounting pad and appropriate anchored fasteners to ensure stable, code-compliant performance in harsh environments.
This model features a 72 inch height and width with a 12 inch depth, accommodating large control assemblies. The enclosure weighs approximately 575.3 lb, indicating substantial structural rigidity for outdoor use. It includes a hinged cover and large double doors for easy access, aiding wiring, maintenance, and panel upgrades without compromising security or weather sealing.
Yes, it is designed for harsh environments and outdoor installations. The combination of 304 stainless steel, 12-gauge walls, a closed-cell neoprene gasket, and a hinged cover with 3-pt latching delivers robust NEMA 4X protection against moisture, dust, and corrosion. A stainless handle and padlock provisions further enhance security without sacrificing sealing performance.
The enclosure carries UL 508A and CSA C22.2 certification marks and a NEMA 4X rating. These align with common electrical and safety standards for industrial control panels, ensuring regulatory compliance, safer operation, and simplified approval processes on commissioning and inspections across North American facilities.
Its 304 stainless steel construction resists rust and corrosion, reducing replacement frequency and maintenance costs in challenging environments. The hinged, lockable door with 3-pt latching ensures secure access with minimal ingress risk, while the stainless steel hardware and gasket system protect against wear, extending service intervals and lowering total cost of ownership over the facility’s lifetime.
