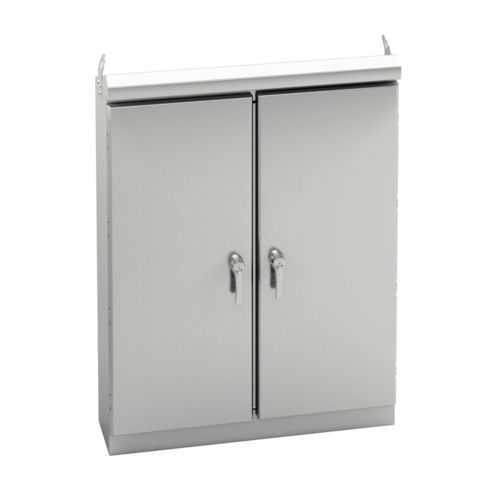

Eaton ES-727212-4XSS6 Panel Enclosures - NEMA 4X
Part Number: ES-727212-4XSS6
Quick Summary
Eaton ES-727212-4XSS6 panel enclosures provide rugged, ground-mounted protection for industrial electrical panels in harsh environments. This design helps maintenance teams avoid downtime by delivering reliable corrosion resistance and secure access, even under frequent washdowns. It carries UL 508A and CSA C22.2 certifications along with a NEMA 4X rating, ensuring electrical safety and weather resistance across demanding installations. Built from 316 stainless steel with a 12‑gauge wall and a closed-cell neoprene gasket, it withstands aggressive atmospheres and routine cleaning. For project teams, this enclosure offers long service life, predictable maintenance cycles, and straightforward compliance, while providing a scalable solution for enabling safe, compliant automation infrastructure.
Product Information
Extended Description
ES-727212-4XSS6 Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 12" length, 72" width, NEMA 4X, Hinged cover, ES-4XSS6 enclosure, Ground mount, Large double door, No mounting provisions, 316 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-727212-4XSS6
UPC
782051383379
Product Length/Depth
12 in
Product Height
72 in
Product Width
72 in
Product Weight
575.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES-4XSS6 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction with 12 gauge walls. Business Impact: Delivers superior corrosion resistance and mechanical strength, reducing maintenance frequency and total cost of ownership. Application: Ideal for washdown zones, chemical processing, and outdoor installations where exposure to moisture and chemicals is constant. Feature: Ground mounting with large double doors and hinged cover. Business Impact: Facilitates rapid, secure access for preventive maintenance and quick fault resolution, minimizing downtime. Application: Suitable for frequent service in panel rooms and outdoor enclosures where space and access are critical. Feature: Closed-cell neoprene gasket and gasketed hinges. Business Impact: Improves ingress protection and seal longevity, lowering ingress-related incidents and extending service intervals. Application: Environments with humidity, dust, and splash exposure. Feature: Stainless steel handle with 3-point latching and key lock padlock provision. Business Impact: Enhances security and tamper resistance while enabling controlled access for authorized personnel. Application: Industrial automation cabinets in regulated facilities. Feature: 72 in height, 72 in width, 12 in depth with no mounting provisions and ground mounting option. Business Impact: Provides robust, scalable footprint for large control panels with secure mounting in open spaces. Application: Ideal for centralized control zones and outdoor installations requiring ground mounting.
Get a Quick Quote for a Eaton ES-727212-4XSS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-727212-4XSS6?
Enquire Now
FAQs
The ES-727212-4XSS6 is designed as a ground-mounted enclosure with no internal mounting provisions. Installation involves anchoring the enclosure to a suitable concrete base or solid foundation using the base mounting features provided by the unit’s four mounting points. For service access, the hinged cover with a large double door design enables easy entry for panels and components inside, reducing installation time and risk during commissioning.
This model uses 316 stainless steel with a 12 gauge wall, finished in #4 brushed, and includes a closed-cell neoprene gasket for sealing. It carries UL 508A and CSA C22.2 certifications and a NEMA 4X rating, indicating suitability for protection from corrosion, water ingress, and harsh environments while supporting industrial electrical installations.
Yes. The 316 stainless steel construction and NEMA 4X rating make it well-suited for washdown and chemical processing environments. The corrosion resistance of 316 stainless steel, combined with a durable gasket seal and secure latching, helps maintain enclosure integrity and electrical safety in demanding facilities.
The enclosure is UL 508A and CSA C22.2 certified, and it carries a NEMA 4X rating. These certifications verify electrical safety standards compliance and environmental protection performance, which is critical for regulatory compliance, risk management, and project acceptance in industrial automation projects.
The 3-point latching stainless handle, hinges, and key lock padlock provision provide secure access control, reducing tampering risk. The corrosion-resistant 316 stainless steel construction minimizes maintenance frequency and component replacement, extending service life and lowering lifecycle costs while ensuring reliable uptime for automated processes.
