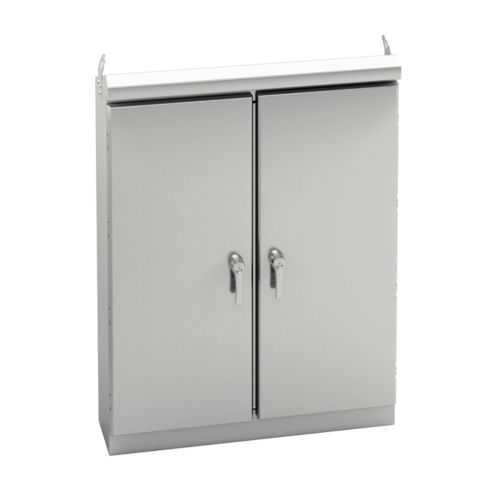

Eaton ES-727216-4XS Panel Enclosures - NEMA 4X
Part Number: ES-727216-4XS
Quick Summary
Eaton ES-727216-4XS panel enclosures protect electrical assemblies in harsh industrial environments. Harsh conditions often drive corrosion, downtime, and escalating maintenance costs. UL 508A, CSA C22.2, and NEMA 4X ratings validate electrical safety and rugged performance for outdoor and demanding sites. This stainless steel enclosure combines secure hinged access with a gasketed seal, offering reliable field installation and long service life while complementing the Eaton B-Line family for scalable, compliant electrical infrastructure.
Product Information
Extended Description
ES-727216-4XS Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 16" length, 72" width, NEMA 4X, Hinged cover, ES4XS enclosure, Ground mount, Large double door, No mounting provisions, 304 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-727216-4XS
UPC
782051383218
Product Length/Depth
16 in
Product Height
72 in
Product Width
72 in
Product Weight
614.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES4XS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
Material and finish provide superior corrosion resistance and durability for demanding environments, reducing maintenance cycles and extending service life in outdoor switchgear applications. The 304 stainless steel, 12 gauge wall, and closed cell neoprene gasket deliver a robust enclosure that withstands moisture, chemicals, and temperature swings, while the #4 brushed finish maintains a professional appearance in visible installations. This translates to lower total cost of ownership and fewer mid-life replacements in mission-critical control panels. The large 72 in x 72 in x 16 in footprint supports substantial interior space for complex wiring, busbars, and devices, enabling easier routine servicing and future expansion without enclosure relocation.
Get a Quick Quote for a Eaton ES-727216-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-727216-4XS?
Enquire Now
FAQs
This model is designed for ground mounting with a hinged cover and large double doors. It features no mounting provisions inside the enclosure, so plan for a compatible floor mounting base or frame. Ensure proper load handling for its 614.5 lb weight and provide secure anchoring to prevent movement during service. Forklift or lifting devices may be required for positioning.
The ES-727216-4XS carries a NEMA 4X rating with a 304 stainless steel construction and a 12 gauge wall. It includes a closed cell neoprene gasket and a stainless steel latch system with a metal handle, offering enhanced sealing, corrosion resistance, and security for outdoor and moisture-prone environments.
Yes. With NEMA 4X protection, US-origin manufacturing, and 304 stainless steel construction, this enclosure is well-suited for outdoor process controls, utility rooms, and other environments where corrosion resistance and secure access are critical. The hinged cover and 3-point latching provide reliable service in wet or dusty industrial settings.
The enclosure conforms to UL 508A and CSA C22.2 standards and carries a NEMA 4X rating. These certifications support compliant electrical installations in North American facilities and help meet safety and environmental requirements for industrial controls and distribution.
The 304 stainless steel construction and gasketed sealing reduce corrosion-related maintenance, extending service intervals and lowering replacement costs. Its secure locking and robust latching minimize tampering and theft-related downtime, contributing to safer, longer-lasting control panels and a lower total cost of ownership in harsh environments.
