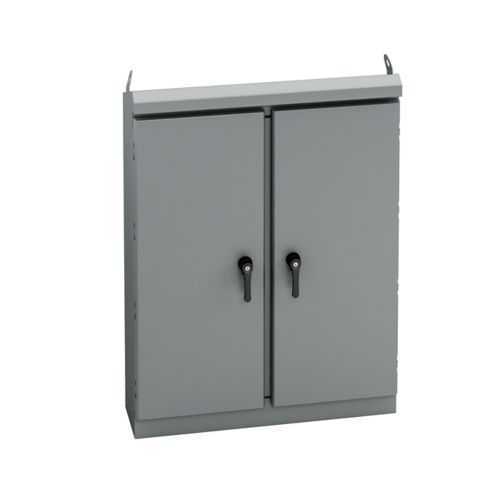

Eaton ES-727224-4 Panel Enclosures - NEMA 4 Ground Mounted
Part Number: ES-727224-4
Quick Summary
The Eaton ES-727224-4 panel enclosure protects electrical systems in rugged outdoor industrial settings. Facilities often struggle with weather ingress, dust, and unauthorized access that disrupts controls and increases downtime. This model carries UL 508A listings and a NEMA 4 rating, signaling reliable code compliance and weatherproof performance. Designed for ground mounting with a large double-door opening and hinged cover, it streamlines installation, maintenance, and component replacement. The painted ANSI 61 gray carbon steel shell, 12-gauge wall thickness, and a 3-point latching handle deliver durable service and long-term cost savings. End-users also benefit from seamless integration with Eaton's B-Line series, improving installation velocity and ongoing asset reliability.
Product Information
Extended Description
ES-727224-4 Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 24" length, 72" width, NEMA 4, Hinged cover, ES4 enclosure, Ground mount, Large double door, No mounting provisions, Carbon steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4 panel enclosures
Catalog Number
ES-727224-4
UPC
782051383560
Product Length/Depth
24 in
Product Height
72 in
Product Width
72 in
Product Weight
650.9 lb
Certifications
UL 508A NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large double door
Model
ES4 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
4
Country of origin
US
The enclosure's 72 in height and 72 in width provide ample interior space for multiple devices, simplifying layout planning and reducing the need for stacked cabinets. This translates to faster installations, easier future upgrades, and lower field labor costs. The NEMA 4 and UL 508A certifications offer confidence in weather resistance, dust exclusion, and electrical safety compliance across outdoor or damp environments, reducing the risk of control faults and unplanned downtime. Built from 12-gauge carbon steel with a painted ANSI 61 gray finish, the shell delivers exceptional mechanical strength and corrosion resistance for prolonged service life in demanding plants. A hinged, large double-door design with a 3-point latching handle and key lock padlock provisioning enhances security while maintaining serviceability, enabling quick access for maintenance without compromising protection. Closed cell neoprene gaskets improve ingress protection by sealing against moisture and particulates, supporting stable operating conditions in challenging environments. Ground mounting aligns with permanent installations on the plant floor, offering robust stability and vibration resistance, though mounting provisions are external to the enclosure. Overall, the ES4 enclosure combines rugged construction with practical features that support fast commissioning, reliable operation, and lower lifecycle costs.
Get a Quick Quote for a Eaton ES-727224-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-727224-4?
Enquire Now
FAQs
The ES-727224-4 is designed for ground mounting. It does not include built-in mounting provisions, so external mounting hardware and mounting plates are typically used to secure the enclosure to a concrete floor or dedicated mounting surface, ensuring a stable, vibration-resistant installation.
NEMA 4 indicates excellent protection against rain, windblown dust, splash, and hose-directed water, suitable for outdoor and damp indoor environments. UL 508A listing confirms compliance for industrial control panels, signaling appropriate electrical safety and reliability for commercial and industrial installations.
The enclosure provides rugged weather and dust protection suitable for outdoor or damp environments. For chemical exposure, verify compatibility with specific chemicals and consider coatings or interior materials. Consulting Eaton’s catalog and your chemical compatibility requirements is recommended before deployment.
Key specs include 72 in height, 72 in width, 24 in depth, carbon steel construction with 12 gauge wall, painted finish in ANSI 61 gray, hinged cover, large double doors, ground mount, no mounting provisions, and a 3-point latching handle with key-lock provision for security.
Its robust carbon steel shell, sealed by a closed-cell neoprene gasket, delivers durable protection against ingress, reducing maintenance frequency. The combination of NEMA 4 protection and a secure locking mechanism minimizes tampering and weather-related faults, contributing to higher uptime and lower total cost of ownership over the system’s life.
