Eaton ES-727224-4XS Panel Enclosures - NEMA 4X
Part Number: ES-727224-4XS
Quick Summary
Eaton ES-727224-4XS panel enclosures protect critical electrical gear in harsh outdoor environments. This type 4X, ground-mounted enclosure addresses corrosion and ingress concerns that can derail uptime and safety. UL 508A, CSA C22.2, and NEMA 4X certifications underpin compliance for industrial control panels in demanding settings. Built with 304 stainless steel and a robust 12 gauge wall, it delivers long-term integrity with minimal maintenance. By combining a hinged cover and a stainless steel handle with 3-point latching, this enclosure reduces field service time while improving protection for motors, drives, and switchgear. For engineers and procurement teams, it aligns with contractor-ready installation and scalable, durable protection across facilities.
Product Information
Extended Description

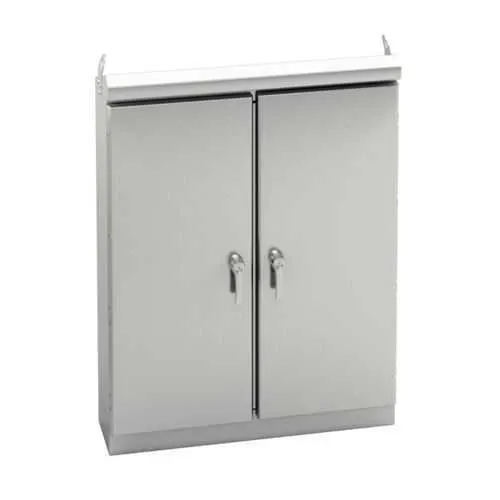

ES-727224-4XS Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 24" length, 72" width, NEMA 4X, Hinged cover, ES4XS enclosure, Ground mount, Large double door, No mounting provisions, 304 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-727224-4XS
UPC
782051383232
Product Length/Depth
24 in
Product Height
72 in
Product Width
72 in
Product Weight
695.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES4XS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
Feature: 304 stainless steel construction with 12 gauge wall thickness → Business impact: Superior corrosion resistance and structural durability reduce replacement costs and maintenance intervals. Application: Outdoor process lines and wash-down areas where moisture and chemicals are present. Feature: Ground mounting with a hinged cover and 3-point latching → Business impact: Quick, secure access reduces downtime during panel servicing and minimizes weather exposure between maintenance events. Application: Outdoor substations and distributed control panels in harsh environments. Feature: Large double-door design and stainless handle → Business impact: Easier access for installation and routine inspections, improving productivity in tight or cramped installations. Application: Control rooms adjacent to industrial floors and outdoor installations. Feature: Key lock padlock provisioning → Business impact: Enhanced security and compliance with access control policies, lowering risk of tampering. Application: Enclosures housing sensitive drives and MCCs. Feature: NEMA 4X, UL 508A, CSA C22.2 certified → Business impact: Streamlined procurement through recognized certifications, accelerating project timelines and ensuring regulatory alignment. Application: Industrial facilities requiring durable, code-compliant outdoor enclosures. Feature: 72 in height, 72 in width, 24 in depth in 304 stainless steel → Business impact: High-capacity protection for large power assemblies and multiple devices, reducing the need for additional housings. Application: Process plants, water/wastewater sites, outdoor electrical rooms. Insight: The ES4XS model’s gasket and closed-cell neoprene sealing have proven reliability in sustaining environmental integrity over long service lives, even under frequent door cycling and temperature swings.
Get a Quick Quote for a Eaton ES-727224-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-727224-4XS?
Enquire Now
FAQs
The ES-727224-4XS is designed for ground mounting and features no mounting provisions in the enclosure body, which simplifies outdoor placement without embedded mounting brackets. For retrofit or integration with existing bases, consider external mounting frames or skid bases designed for large B-Line panels to preserve the enclosure’s protective integrity.
The enclosure uses 304 stainless steel with 12 gauge wall thickness and a closed-cell neoprene gasket for a reliable seal. Its 72 in x 72 in x 24 in footprint supports large assemblies, while the hinged cover with 3-point latching ensures a secure, weather-tight closure and repeatable service access in demanding environments.
Yes. With NEMA 4X protection, UL 508A and CSA C22.2 certifications, this enclosure is well-suited for outdoor substations and wash-down areas. The stainless interior finish, gasket integrity, and corrosion resistance help maintain electrical reliability and reduce maintenance overhead in harsh conditions.
This enclosure carries UL 508A, CSA C22.2, and NEMA 4X certifications, reflecting compliance with electrical safety and protection standards for industrial control panels. These certifications simplify project approvals, ensure safety requirements are met, and support ongoing regulatory adherence across multiple jurisdictions.
The combination of 304 stainless steel with a 12 gauge wall, gasket sealing, and a robust 3-point latch reduces corrosion-related maintenance and downtime. Long-term, this translates to lower replacement costs, fewer field service calls, and improved uptime for critical equipment in outdoor or challenging environments.
