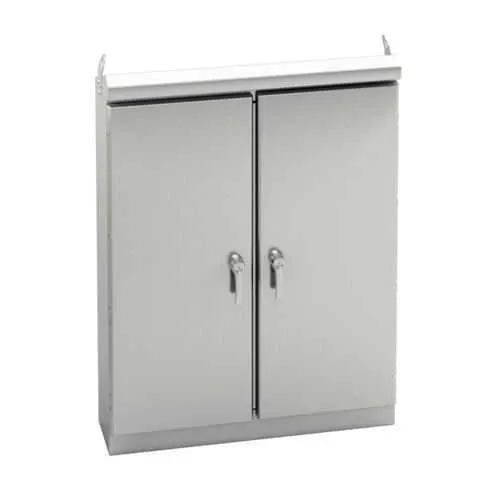

Eaton ES-727224-4XSS6 Panel Enclosures - NEMA 4X
Part Number: ES-727224-4XSS6
Quick Summary
ES-727224-4XSS6 is a rugged panel enclosure built by Eaton for outdoor and harsh industrial environments. Enterprises often struggle with corrosion, weather exposure, and access control in electrical cabinets, which drives maintenance and downtime. This unit carries UL 50, CSA C22.2, and NEMA 4X certifications, reinforcing safety and compliance in demanding settings. Constructed from 316 stainless steel with a 12-gauge wall and a closed-cell neoprene gasket, it stands up to harsh conditions while preserving internal equipment. For process automation and data center infrastructure, this ground-mounted enclosure combines durability with secure, hinged access, reducing maintenance cycles and extending uptime for your critical systems.
Product Information
Extended Description
ES-727224-4XSS6 Eaton: Eaton B-Line series ground mounted panel enclosure, 72" height, 24" length, 72" width, NEMA 4X, Hinged cover, ES-4XSS6 enclosure, Ground mount, Large double door, No mounting provisions, 316 stainless steel, Closed cell neoprene gasket
Product Name
Eaton B-Line series type 4X panel enclosures
Catalog Number
ES-727224-4XSS6
UPC
782051383409
Product Length/Depth
24 in
Product Height
72 in
Product Width
72 in
Product Weight
695.1 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
12 gauge
Finish color
#4 brushed
Color
Gray
Style
Large double door
Model
ES-4XSS6 enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
Stainless handle with 3-pt latching
NEMA Rating
4X
Country of origin
US
Feature — 316 stainless steel construction with 12 gauge walls provides outstanding corrosion resistance in outdoor and washdown environments. Business Impact — Reduces maintenance costs and extends service life, delivering predictable performance in harsh facilities. Application — Outdoor substations, food & beverage processing lines, and coastal plants. Feature — NEMA 4X rating with UL 50 and CSA C22.2 certifications ensures proven enclosure protection against water, dust, and chemical exposure. Business Impact — Improves compliance, minimizes non-conformance risk, and supports safer, more reliable installations. Application — Industrial automation control panels in outdoor or damp locations. Feature — Hinged cover with large double doors and a stainless steel 3-point latching system enhances secure, fast access. Business Impact — Shortens maintenance cycles and improves operator safety. Application — Routine diagnostics, panel upgrades, and firmware maintenance in busy production lines. Feature — Ground mounting with no mounting provisions simplifies installation and reduces hardware requirements. Business Impact — Faster on-site deployment and reduced total installed cost. Application — Permanent outdoor installations and fixed process-control cabinets. Feature — Key lock padlock provisioning improves security and access control for sensitive panels. Business Impact — Mitigates unauthorized access and protects critical control equipment. Application — Restricted-area automation cabinets in manufacturing facilities. Feature — Generous internal footprint with 72 in height, 72 in width, and 24 in depth supports complex wiring and component layouts. Business Impact — Enables scalable configurations and easier cable management, reducing rework. Application — Motor drives, PLC racks, and multi-panel installations in large automation setups.
Get a Quick Quote for a Eaton ES-727224-4XSS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ES-727224-4XSS6?
Enquire Now
FAQs
This enclosure is designed for ground mounting with no internal mounting provisions. Installers should anchor to a solid rated base or concrete pad using appropriate fasteners. Plan for a robust anchor system to support the 695.1 lb weight and ensure the hinged door can operate without obstruction. Verify gasket seating and door clearance during site commissioning.
The ES-727224-4XSS6 carries UL 50, CSA C22.2, and NEMA 4X ratings, confirming electrical enclosure performance, safety, and corrosion resistance in demanding environments. These certifications support compliance for outdoor installations, washdown areas, and industrial automation panels, reducing audit risk and enabling broader use across facilities.
Ideal for outdoor process control, wastewater and water treatment, and coastal or harsh industrial settings, the 316 stainless steel enclosure provides robust corrosion resistance. The large double-door design and secure latching support reliable housing for controllers, drives, and panel assemblies while accommodating complex cabling and future upgrades.
Regular inspection of the neoprene gasket, hinges, and locking hardware is recommended. Clean surfaces to prevent oxidation or residue buildup and check for any door misalignment. The 12-gauge wall thickness and stainless construction resist corrosion, but routine cleaning and seal inspection help sustain protective performance in challenging environments.
NEMA 4X protection denotes resistance to corrosion, wind-blown dust, rain, splashing water, and hose-directed water, making it suitable for outdoor and washdown environments. For industrial facilities, this rating provides assurance that critical electrical components remain protected from environmental exposure and contaminants, supporting reliable operation and reduced downtime.
