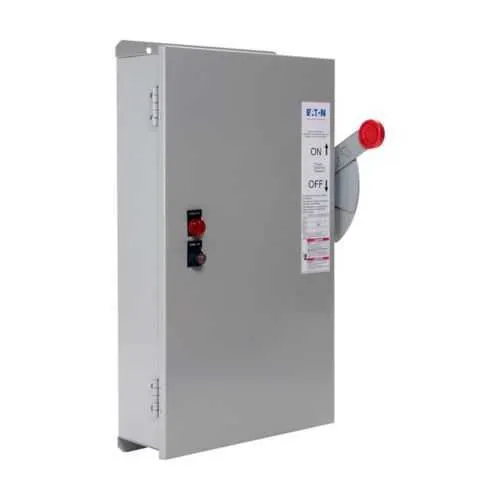

Eaton ES4T3R1R Elevator Control Switch - UL 98 Listed

Feature: High current capability at 200 A. Benefit: Supports demanding elevator control circuits with fewer parallel contacts, enhancing reliability and reducing wiring complexity. Application: Ideal for commercial building elevators where load management is critical and downtime costs are high. Feature: 240 V operating voltage with a 120 Vac coil. Benefit: Simplifies integration with common building power systems and fire-safety interlock logic. Application: Elevator control panels that require seamless interlock coordination and a clear control signal. Feature: 11.28 in depth, 32.63 in height, 20.38 in width in a NEMA 1 enclosure. Benefit: Indoor protection against dust and incidental moisture while providing ample space for transformers and terminal blocks. Application: New installations and retrofit projects in retrofit-ready control rooms. Feature: Main lug capability for #6-250 kcmil Al/Cu conductors. Benefit: Reduces splice points and supports large feeders, cutting installation time and labor costs. Application: Heavy-duty feeder connections to the elevator controller. Feature: Red pilot light and no neutral lug by default. Benefit: Immediate status indication and simplified wiring; optional neutral lug offers installation flexibility. Application: Practical for visibility in control rooms and when balancing line/load requirements. Feature: Optional neutral lug size same as line and load. Benefit: Maintains symmetry in neutral distribution and simplifies transformer integration. Application: Fire-safety interface retrofit scenarios. This combination of specifications supports compliance, reduces commissioning risk, and improves lifecycle cost for elevator control systems by delivering reliable current handling, straightforward installation, and clear status indication, all while maintaining alignment with industry practices for elevator protection and control.
