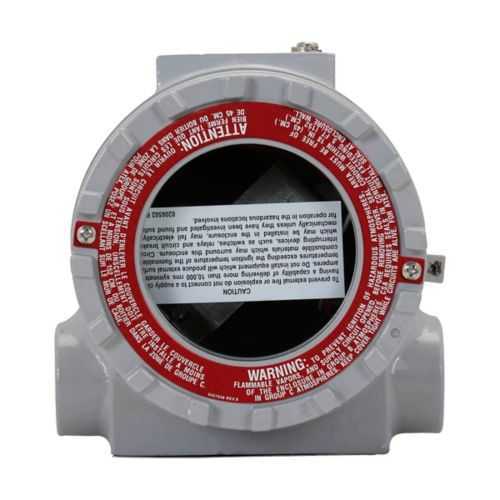

Eaton EV2IH20 Photocell in EIH Enclosure - Hazardous Areas
Part Number: EV2IH20
Quick Summary
The EV2IH20 photocell from Eaton provides precise dusk-to-dawn control for hazardous-location luminaires. This remote sensor simplifies wiring and compliance in Class I and Class II environments. With NEC/CEC adherence and hazardous-area ratings, it supports safe, future-ready installations. Engineered for LMV, DMV, and VMV luminaires at 120 Vac and 50/60 Hz, it delivers reliable performance with minimal maintenance. By combining rugged enclosure protection with flexible mounting options, engineers can reduce project risk and accelerate deployment. This makes it an ideal choice for hazardous-area lighting control where reliability and compliance matter most. Leverage this solution to meet energy management goals while maintaining safety-critical operation.
Product Information
Extended Description
EV2IH20 Eaton: Eaton Crouse-Hinds series EV2IH photocell, 50/60 Hz, Photocell in EIH enclosure, Used with LMV, DMV, VMV series luminaires, 120 Vac
Product Name
Eaton Crouse-Hinds series EV2IH photocell
Catalog Number
EV2IH20
UPC
782274901619
Product Length/Depth
5.25 in
Product Height
4.54 in
Product Width
5 in
Product Weight
3.62 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9
Type
Photocell in EIH enclosure
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Used with
LMV, DMV, VMV series luminaires
Crouse-Hinds series Photocells catalog page
Photocells for Champ HID and Fluorescent Hazardous Area Light Fixtures Canadian certification
Photocells for Champ HID and Fluorescent Hazardous Area Light Fixtures Canadian certification
IF 1308 - EV2IH Explosionproof Remote Photocell
Eaton Specification Sheet - EV2IH20
Explosion-proof remote photocell resides in an EIH enclosure, delivering rugged protection in hazardous areas. This design reduces ignition risk and helps meet Class I Division 1 and Division 2 requirements, enabling safer remote sensing for industrial luminaires. It is well-suited for outdoor, chemical plant, and refinery applications where reliability matters. Integrated compatibility with LMV, DMV, and VMV luminaires streamlines installation and reduces field wiring. The 120 Vac supply and 50/60 Hz operation mean plug-and-play integration with existing power systems, lowering commissioning time and labor costs. This compatibility supports efficient retrofits and scalable new-build projects. Operating at 120 Vac and 50/60 Hz, the EV2IH20 fits common industrial distribution while maintaining precise dusk-to-dawn control. The remote photocell works across a range of hazardous-area luminaires, enabling consistent lighting levels and energy savings. This electrical robustness translates into dependable performance in harsh environments. Certification coverage, including Class I/II/III ratings and NEC/CEC standards, provides regulatory assurance for compliant installations. The enclosure’s rugged construction minimizes maintenance, downtime, and replacement costs in demanding sites. Installation instructions IF 1308 and the rugged EIH remote assembly facilitate straightforward mounting in challenging spaces. The enclosure exposure rating and protective features minimize maintenance intervals and downtime. Overall, the solution delivers lower total cost of ownership through durable construction and reliable performance.
Get a Quick Quote for a Eaton EV2IH20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EV2IH20?
Enquire Now
FAQs
To install the EV2IH20, mount the unit in the Crouse-Hinds EV2IH enclosure and connect to the LMV/DMV/VMV luminaire circuit per IF 1308 installation instructions. Use proper conduit, seals, and wiring practices suitable for hazardous areas, and follow NEC/CEC standards. The 120 Vac supply and 50/60 Hz rating simplify panel integration and commissioning.
EV2IH20 is designed for use with LMV, DMV, and VMV luminaires. The 120 Vac, 50/60 Hz remote photocell in an EIH enclosure provides dusk-to-dawn control for these fixtures in hazardous locations, ensuring consistent light levels and energy efficiency. Compatibility with these families simplifies project planning and reduces field programming.
EV2IH20 carries Hazardous/Classified Locations area classification with NEC/CEC standards. It is rated Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, plus NEMA ratings 3, 4, 7, and 9. This certification suite supports compliance audits, insurance requirements, and safe operation in oil refineries, chemical plants, and mining sites.
EV2IH20 operates at 120 Vac and 50/60 Hz, compatible with standard industrial power and lighting circuits. It is a photocell in an EIH enclosure designed for remote sensing with LMV, DMV, and VMV luminaires. Key physical data include 5.25 in length, 4.54 in height, 5 in width, and a weight of 3.62 lb to aid mounting.
Using EV2IH20 for dusk-to-dawn control reduces energy consumption by turning luminaires off during daylight, delivering measurable savings on large-site electricity budgets. The rugged EIH enclosure minimizes maintenance in harsh environments, lowering downtime and replacement costs. Combined with quick installation and NEC/CEC compliance, it accelerates project ROI for hazardous-location lighting projects.
