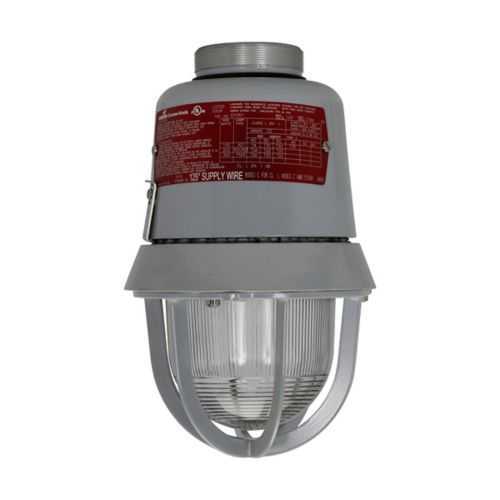

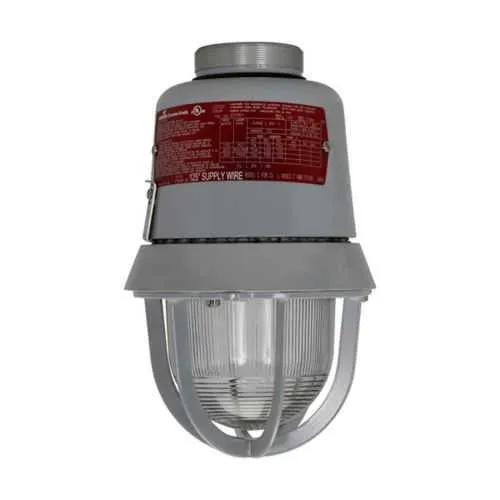

Eaton EVI301 Light Fixture - Hazardous IP66
Part Number: EVI301
Quick Summary
The Eaton EVI301 light fixture provides reliable illumination for hazardous locations in industrial facilities. Maintaining performance in sealed, heat and dust-prone environments can be costly and risky. It meets NEC/CEC standards, offers IP66 ingress protection, and uses a NEMA 4X enclosure along with hazardous-location approvals (Class I, Division 1; Zone 1; Zone 2). For end users, this translates to longer service life, reduced maintenance cycles, and safer operations in a wide range of facilities. This model also leverages a copper-free aluminum guard and heat and impact resistant globe to resist corrosion and impact, while remaining compatible with standard 120 V AC circuits. In short, it blends reliability with compliance for industrial lighting.
Product Information
Extended Description
EVI301 Eaton: Eaton Crouse-Hinds series EVI light fixture, Medium base, Heat and impact resistant glass globe, With cast copper-free alum guard, Incandescent, Copper-free aluminum, PS-25 max. lamp size, No mounting module, Factory sealed, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series EVI light fixture
Catalog Number
EVI301
UPC
782274198699
Product Length/Depth
7.25 in
Product Height
13.33 in
Product Width
7.25 in
Product Weight
10.9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Incandescent
Base type
Medium
Wattage
300W
Mounting Method
No mounting module
Guard type
With cast guard
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Guard material
Copper-free aluminum
Voltage rating
120 Vac
Lamp size - max
PS-25
Special features
Factory sealed
EVI Explosionproof Incandescent Light Fixtures catalog page
EVI Explosionproof Incandescent Light Fixtures UL certification
EVI Explosionproof Incandescent Light Fixtures UL certification
EVI Explosionproof Incandescent Light Fixtures UL certification
IF 1452 - EVI Explosionproof Incandescent Light Fixtures
Eaton Specification Sheet - EVI301
Feature: Incandescent lamp with a medium base and 300W rating, housed inside a factory-sealed unit. Business Impact: Uses familiar, readily available lamps and predictable maintenance costs, reducing downtime and procurement complexity. Application: Ideal for existing installations that rely on standard lamp replacements in hazardous locations. Feature: Heat and impact resistant glass globe with a copper-free aluminum guard. Business Impact: Enhanced durability against heat, vibration, and impact translates to longer service life and lower replacement frequency. Application: Harsh environments such as chemical plants, refineries, and mining operations benefit from this protection. Feature: IP66 ingress protection and NEMA 4X enclosure with hazardous-location approvals (Class I Division 1; Zone 1; Zone 2). Business Impact: Strong environmental sealing and explosion-proof compliance reduce corrosion risk and compliance costs, lowering total cost of ownership. Application: Suitable for indoor and damp spaces with potential gas or vapor hazards. Feature: Mounting compatibility and electrical design (120 VAC, PS-25 max lamp size) with no mounting module. Business Impact: Simplifies retrofits and minimizes wiring changes, accelerating project timelines. Application: Fits standard electrical environments and reduces installation friction in retrofit projects. Feature: Factory sealed housing and copper-free components. Business Impact: Lower maintenance needs and easier cleaning in hazardous areas; reduces downtime and service interventions. Application: Industries requiring rigorous contamination control and long intervals between servicing—chemical, oil & gas, mining—benefit from this reliability.
Get a Quick Quote for a Eaton EVI301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EVI301?
Enquire Now
FAQs
The EVI301 is designed for hazardous locations with a factory-sealed housing and no mounting module required, simplifying retrofits. Ensure a compliant 120 VAC supply and compatible mounting hardware. Follow NEC/CEC requirements and local codes for Class I Division 1 and Zone 1/Zone 2 classifications. Use appropriate gland seals and grounding per your facility standards.
IP66 protects against dust and heavy water exposure, while NEMA 4X provides corrosion resistance in wet or harsh conditions. These ratings reduce frequent cleaning needs, minimize ingress-related faults, and extend service intervals. The result is lower maintenance labor, fewer unplanned outages, and longer intervals between lamp replacements in challenging environments.
Yes, the EVI301 uses a medium base and 120 VAC supply, with a PS-25 lamp size compatibility. It features a mounting method described as no mounting module, meaning you can integrate it with standard mounting provisions already present in many facilities. Copper-free aluminum guard and sealed housing also support retrofit in diverse plant layouts.
The EVI301 aligns with NEC/CEC standards and carries hazardous-location approvals including Class I Division 1, Zone 1, and Zone 2 ratings, along with a NEMA 4X enclosure and IP66 ingress protection. This combination supports compliance in a broad range of hazardous environments and helps with insurance and auditing processes.
Lifecycle benefits include reduced downtime due to a factory-sealed design and robust globe/guard assembly, lower maintenance frequency, and fewer spare parts thanks to durable materials like copper-free aluminum. While incandescent at 300W, the fixture’s reliability and hazardous-location certification can lower total cost of ownership by minimizing outages and accelerating regulatory compliance.
