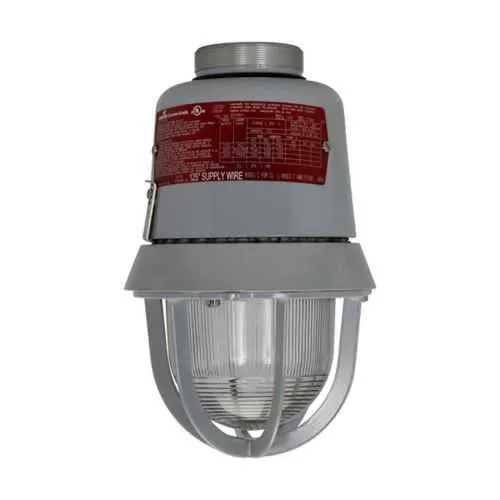

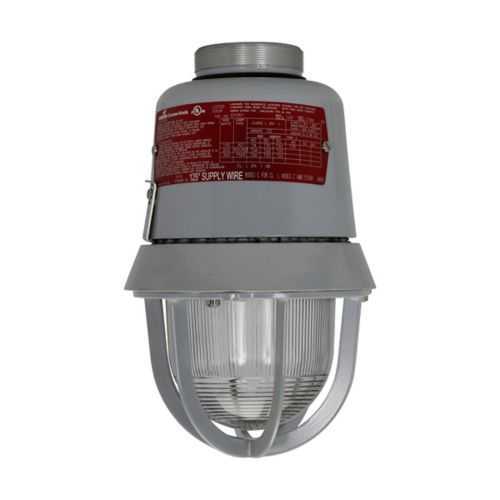

Eaton EVI301/250 Light Fixture - IP66
Part Number: EVI301/250
Quick Summary
Eaton EVI301/250 light fixture is designed to deliver reliable explosionproof illumination for hazardous locations in industrial plants. Maintenance crews struggle with re-lamping, ingress of dust and moisture, and unplanned outages that halt production. This fixture meets NEC/CEC requirements and hazardous-location ratings, including Class I Division 1 and Zone 1, plus IP66 and NEMA 4X protection. By leveraging a copper-free aluminum guard and factory sealed design, the solution reduces downtime and simplifies service in tough environments. This makes it a strong fit for hazardous-location lighting programs, improving safety, maintenance planning, and total cost of ownership. Engineered for long service life, it supports predictive maintenance initiatives.
Product Information
Extended Description
EVI301/250 Eaton: Eaton Crouse-Hinds series EVI light fixture, Medium base, Heat and impact resistant glass globe, With cast copper-free alum guard, Incandescent, Copper-free aluminum, PS-25 max. lamp size, No mounting module, Factory sealed, 250 Vac, 300W
Product Name
Eaton Crouse-Hinds series EVI light fixture
Catalog Number
EVI301/250
UPC
782274270074
Product Length/Depth
7.25 in
Product Height
13.33 in
Product Width
7.25 in
Product Weight
11.75 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Incandescent
Base type
Medium
Wattage
300W
Mounting Method
No mounting module
Guard type
With cast guard
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Guard material
Copper-free aluminum
Voltage rating
250 Vac
Lamp size - max
PS-25
Special features
Factory sealed
EVI Explosionproof Incandescent Light Fixtures catalog page
EVI Explosionproof Incandescent Light Fixtures UL certification
EVI Explosionproof Incandescent Light Fixtures UL certification
EVI Explosionproof Incandescent Light Fixtures UL certification
IF 1452 - EVI Explosionproof Incandescent Light Fixtures
Eaton Specification Sheet - EVI301/250
Explosionproof incandescent luminaire design for hazardous locations provides safe operation in flammable atmospheres, reducing ignition risk and extending service life. This contributes to fewer unplanned outages and easier regulatory alignment for oil and gas facilities, refineries, and chemical plants. The IP66 and NEMA 4X protection shield against dust, water ingress, and corrosion, cutting maintenance costs and extending mean time between failures in offshore platforms and industrial plants. Copper-free aluminum guard and housing resist harsh environments, lowering replacement costs while maintaining structural integrity in marine facilities, refineries, and mining sites. The medium base and PS-25 lamp compatibility simplify lamp changes, shortening maintenance windows and reducing spare-part inventories. Factory sealed design and absence of mounting module streamline installation, enabling faster retrofit and new-build deployments with fewer installation steps. Heat and impact resistant glass globe withstands vibrations and impacts typical in heavy industry, improving long-term reliability and asset uptime.
Get a Quick Quote for a Eaton EVI301/250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EVI301/250?
Enquire Now
FAQs
The EVI301/250 carries NEC/CEC compliance and hazardous-location ratings including Class I Division 1 and Zone 1, as well as IP66 ingress protection and a NEMA 4X enclosure. It is designed for Class II and III environments as indicated by its hazardous-location classifications, ensuring compliance across multiple industrial regions.
The fixture is factory sealed and designed with no mounting module, reducing on-site assembly steps. Its copper-free aluminum guard and robust construction allow quick installation in rugged locations, while the 250 Vac, PS-25 lamp-size compatibility supports rapid lamp replacements during preventive maintenance.
Key specs include incandescent lamp type at 300W, voltage rating of 250 Vac, medium base, PS-25 max lamp size, overall dimensions around 7.25 in by 13.33 in, weight about 11.75 lb, and an IP66/NEMA 4X-rated enclosure with a heat and impact resistant glass globe and copper-free aluminum guard.
Best suited for hazardous-location lighting in oil and gas facilities, refineries, chemical processing plants, mining operations, and offshore platforms where reliable, compliant illumination is critical for safety and production uptime.
Installers can access the Eaton Explosionproof Incandescent Light Fixtures catalog page, UL certification profiles, IF 1452 installation sheets, and the Eaton specification sheet from the provided downloads section to support design decisions and compliant installations.
