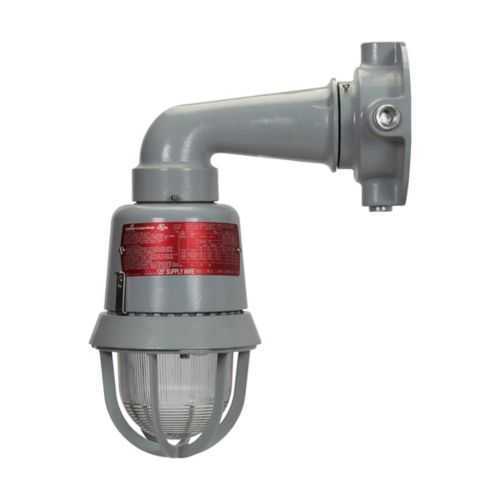

Eaton EVIBX3301 Light Fixture - IP66
Part Number: EVIBX3301
Quick Summary
The Eaton EVIBX3301 light fixture provides rugged illumination for hazardous locations in industrial plants. Engineers often struggle with brittle seals, corrosion, and unreliable lighting in challenging environments. This unit carries NEC/CEC compliance, NEMA 4X protection, and IP66 ingress rating, ensuring safety and uptime. Designed for wall-mounted hazardous area lighting and compatible with standard 1" bases, it helps facilities reduce maintenance and extend service life.
Product Information
Extended Description
EVIBX3301 Eaton: Eaton Crouse-Hinds series EVI light fixture, Medium base, Heat and impact resistant glass globe, With cast copper-free aluminum guard, Incandescent, Copper-free aluminum, PS-25 max. lamp size, Wall mount, Factory sealed, 1", 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series EVI light fixture
Catalog Number
EVIBX3301
UPC
782274244426
Product Length/Depth
12.56 in
Product Height
16.81 in
Product Width
6.75 in
Product Weight
15.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Incandescent
Base type
Medium
Wattage
300W
Mounting Method
Wall
Trade size
1"
Guard type
With cast guard
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Guard material
Copper-free aluminum
Voltage rating
120 Vac
Lamp size - max
PS-25
Special features
Factory sealed
EVI Explosionproof Incandescent Light Fixtures catalog page
EVI Explosionproof Incandescent Light Fixtures Canadian certification
EVI Explosionproof Incandescent Light Fixtures Canadian certification
EVI Explosionproof Incandescent Light Fixtures Canadian certification
IF 1452 - EVI Explosionproof Incandescent Light Fixtures
Eaton Specification Sheet - EVIBX3301
Feature ā Copper-free aluminum guard and heat and impact resistant glass globe protect the luminaire from corrosion and physical damage. Business Impact ā Longer service life in harsh environments reduces maintenance downtime and replacement costs. Application ā Suitable for hazardous areas in chemical plants, refineries, and mining where durability and reliability matter. Feature ā Hazardous location ratings and certifications: NEC/CEC compliance, Class I Division 1, Zone 1, Class I Zone 2, Class II Division 1, Class III, NEMA 4X, IP66. Business Impact ā Regulatory compliance and safer operation minimize risk and insurance exposure. Application ā Supports installation in hazardous and classified locations across oil/gas, petrochemical, and mining facilities. Feature ā Medium base with 1" trade size and PS-25 max lamp size; 120 VAC, 300W incandescent. Business Impact ā Aligns with legacy incandescent inventories and power systems while delivering strong illumination. Application ā Simple retrofit in existing systems; compatible with standard electrical wiring and control gear. Feature ā Wall mounting and factory sealed design with copper-free aluminum guard. Business Impact ā Fast, reliable installation with proven sealing against dust and water ingress; reduced service calls. Application ā Wall-mounted lighting in process areas, machine rooms, and control panels requiring protected lighting. Feature ā Globe material is heat and impact resistant glass; guard material is copper-free aluminum. Business Impact ā Enhanced safety margins and reduced risk of glass breakage. Application ā Environments with vibration or high impact potential, such as loading docks and plant floors.
Get a Quick Quote for a Eaton EVIBX3301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EVIBX3301?
Enquire Now
FAQs
EVIBX3301 is designed for wall mounting with a 1 inch trade size and medium base lamp. It operates at 120 VAC and up to 300 watts, making it compatible with standard industrial wiring. The fixture features an IP66 rating and a NEMA 4X enclosure, suitable for Class I Division 1/Zone 1 and related hazardous locations. Ensure proper wiring in accordance with local codes and install a suitable enclosure gasket to maintain its sealed integrity.
The EVIBX3301 carries NEC/CEC compliance, NEMA 4X enclosure protection, and IP66 ingress protection. It is suitable for Hazardous/ Classified Locations, including Class I, Division 1, Zone 1, Class I, Zone 2, Class II, Division 1, and Class III environments. These certifications support safe operation in oil refineries, chemical plants, and other demanding industrial settings.
Yes. The EVIBX3301 is purpose-built for hazardous locations often found in oil refineries. With Class I Division 1/Zone 1 ratings, a rugged copper-free aluminum guard, heat and impact resistant glass, and a sealed IP66/NEMA 4X enclosure, it delivers reliable illumination while meeting stringent safety and compliance requirements.
Maintenance is simplified by a factory-sealed design that minimizes ingress of dust and moisture. The unit uses a standard 300W incandescent lamp with a medium base (PS-25 max), facilitating lamp replacements from common inventories. Regular inspections should focus on seal integrity, guard condition, and replacing the lamp per operating cycles and ambient conditions to maintain achieved lumen output.
The EVIBX3301 supports straightforward wall-mounted installation with a 1" trade size, accommodating existing mounting hardware. Its copper-free aluminum guard and glass globe provide durability in vibration-prone environments, while factory sealing minimizes commissioning adjustments. For retrofit projects, the 120 VAC, 300W incandescent specification aligns with many legacy electrical systems, reducing the need for power conversion or rewiring.
