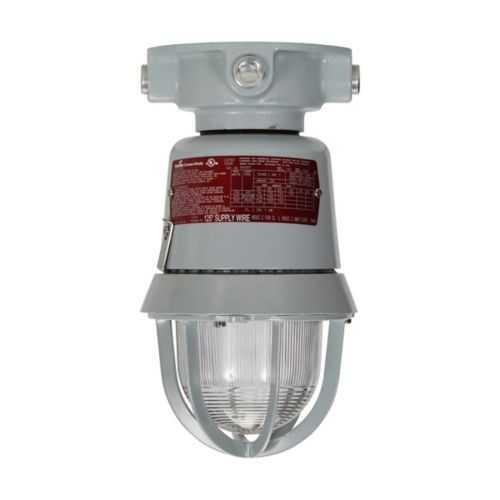

Eaton EVICX2301 Light Fixture - IP66, NEMA 4X, Hazardous
Part Number: EVICX2301
Quick Summary
The Eaton EVICX2301 light fixture is an explosionproof luminaire for hazardous locations in industrial facilities. This rugged solution addresses the challenge of maintaining reliable illumination in harsh environments where ingress, heat, and vibration can drive downtime. It carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 1, Zone 1 and Zone 2, plus NEMA 4X and IP66 protection, ensuring dependable operation in challenging spaces. For engineers and procurement teams, the EVICX2301 offers compatibility with 120 V systems, a medium base, and a factory-sealed design that reduces maintenance cycles, lowers replacement costs, and supports compliant installation across refinery, chemical processing, and mining sites. The combination of copper-free aluminum construction and heat-resistant glass further enhances longevity in aggressive environments.
Product Information
Extended Description
EVICX2301 Eaton: Eaton Crouse-Hinds series EVI light fixture, Medium base, Heat and impact resistant glass globe, With cast copper-free alum guard, Incandescent, Copper-free aluminum, PS-25 max. lamp size, Ceiling mount, Factory sealed, 3/4", 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series EVI light fixture
Catalog Number
EVICX2301
UPC
782274235851
Product Length/Depth
7.25 in
Product Height
13.75 in
Product Width
7.25 in
Product Weight
13 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Incandescent
Base type
Medium
Wattage
300W
Mounting Method
Ceiling
Trade size
3/4"
Guard type
With cast guard
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Guard material
Copper-free aluminum
Voltage rating
120 Vac
Lamp size - max
PS-25
Special features
Factory sealed
EVI Explosionproof Incandescent Light Fixtures catalog page
EVI Explosionproof Incandescent Light Fixtures Canadian certification
EVI Explosionproof Incandescent Light Fixtures Canadian certification
EVI Explosionproof Incandescent Light Fixtures Canadian certification
IF 1452 - EVI Explosionproof Incandescent Light Fixtures
Eaton Specification Sheet - EVICX2301
Rugged housing and protective materials deliver durability in harsh environments, reducing downtime and maintenance costs for critical lighting. The copper-free aluminum guard and heat resistant glass globe protect against corrosion and thermal stress, extending service intervals in refineries and chemical plants. This translates to fewer unplanned outages and improved uptime for essential process lighting. The fixture’s IP66 and NEMA 4X ratings provide reliable ingress protection in dusty, wet, and chemically aggressive areas, enabling safe operation in oil & gas, mining, and manufacturing settings. With a medium base and 120 VAC compatibility, it supports standard electrical infrastructure while delivering up to 300 W of incandescent illumination for high-visibility work areas. The factory-sealed design minimizes field maintenance, while the cast guard and durable globe support long service life in demanding environments. Ceiling mounting and a 3/4" trade size simplify installation in existing fixtures and new builds alike, reducing retrofit time. PS-25 lamp size compatibility ensures easy lamp replacement workflows and predictable light performance, while copper-free aluminum construction aids ongoing maintenance and corrosion resistance. This combination of protection, compatibility, and performance aligns with industry best practices for hazardous-location lighting and supports compliant, cost-efficient asset management.
Get a Quick Quote for a Eaton EVICX2301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EVICX2301?
Enquire Now
FAQs
EVICX2301 is designed for ceiling mounting with a 3/4 inch trade size and a medium base. It operates from 120 VAC and accepts up to a 300 W incandescent lamp (PS-25). The unit is factory sealed and copper-free aluminum, providing IP66 and NEMA 4X protection. When installing in Class I Division 1 or Zone 1/2 environments, ensure wiring complies with NEC/CEC and local codes, and use proper explosionproof connectors and enclosure suitability.
EVICX2301 carries NEC/CEC standards for hazardous locations and a Class I Division 1, Zone 1 and Zone 2 rating, plus Class II and Class III classifications. It is NEMA 4X rated and IP66 sealed, ensuring protection against dust, water, and corrosion. These certifications support safe operation in oil and gas, chemical, and mining applications while meeting stringent industrial compliance requirements.
The EVICX2301 is specified as incandescent with a 300 W maximum and PS-25 lamp size. It is designed around a medium base for this lamp configuration. LED retrofit options are not indicated for this exact fixture; for hazardous locations, refer to Eaton’s catalog or specification sheet for approved LED equivalents or replacement luminaires that maintain same protection levels (IP66, NEMA 4X) and certifications.
The EVICX2301 measures 7.25 inches in length, 7.25 inches in width, and 13.75 inches in height, with an approximate weight of 13 pounds. This compact, robust form factor supports installation in constrained ceilings and equipment rooms while maintaining the protective features required for hazardous locations such as Class I Division 1 and Zone 1.
Helpful resources include the IF 1452 instruction sheet and the Eaton EVI catalog page for explosionproof incandescent luminaires, along with the EVICX2301 specification sheet. The product line also provides certification reports and a detailed spec overview. Access to these documents supports compliant installation, proper lamp selection, and maintenance planning to minimize downtime.
