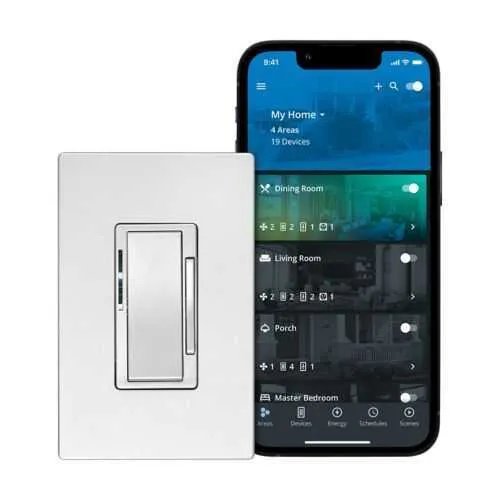

Eaton EWACD-C6-BX-L Wi-Fi smart dimmer - cULus Listed
Part Number: EWACD-C6-BX-L
Quick Summary
Eaton EWACD-C6-BX-L Wi-Fi smart dimmer enables wireless control of 120V lighting in homes and light commercial spaces. This device helps prevent cluttered switches and manual adjustments by delivering reliable dimming from a connected app or control system. For installers, integrating smart functionality into legacy 120V circuits without extensive rewiring can be a major hurdle. The unit is cULus Listed with NOM certification, reinforcing safety and regulatory compliance across multiple markets. With flush mounting and back and side wiring, it supports quick retrofits and tidy installations. Multi-location capability, plus color options, delivers flexible, scalable lighting control while reducing energy use and improving occupant comfort.
Product Information
Extended Description
EWACD-C6-BX-L Eaton: Eaton Wi-Fi smart dimmer, Flush, 120V, Back and side wire, White, Silver Granite, Oil Rubbed Bronze, 32°F to 104°F (0°C to 40°C), Single-phase, Multi-location, Used with EWFD30, ES
Product Name
Eaton Wi-Fi smart dimmer
Catalog Number
EWACD-C6-BX-L
UPC
032664005329
Product Length/Depth
1.75 in
Product Height
4.25 in
Product Width
1.8 in
Product Weight
0.28 lb
Compliances
cULus Listed
Certifications
NOM
Voltage rating
120 V
Mounting method
Flush
Color
White Silver granite Oil rubbed bronze
Phase
Single-phase
Switch type
Multi-location
Wi-Fi smart devices brochure
Wi-Fi smart devices sell sheet
How to install: Eaton's Wi-Fi smart universal dimmer (WFD30) and accessory dimmer (WACD)
Feature: Flush mounting and back/side wiring support for 120V lighting ecosystems. Business Impact: Enables clean retrofits with minimal wall disruption and faster installation timelines, reducing labor costs on demand. Application: Ideal for retrofits in residential kitchens and office corridors where discreet dimming is required. Feature: Single-phase, 120V operation with multi-location dimming. Business Impact: Enables centralized control across zones, improving energy management and user experience in open-plan spaces. Application: Suitable for homes, apartments, and light commercial environments needing coordinated lighting scenes. Feature: Color options White, Silver Granite, and Oil Rubbed Bronze. Business Impact: Easier alignment with interior design and project branding, reducing post-install adjustments and replacement cycles. Application: Retrofit projects and new builds where aesthetics matter. Feature: Compatibility with EWFD30 and ES control platforms. Business Impact: Accelerates deployment in Eaton Wi‑Fi smart devices ecosystems, reducing integration risk and support needs. Application: Streamlined deployment for scalable smart lighting networks in facilities. Feature: Regulatory compliance with cULus Listed and NOM. Business Impact: Ensures safety, market access, and ongoing compliance across regions, limiting regulatory delays. Application: Suitable for regulated environments and spec-driven procurement in engineering projects. Feature: Operating range 32°F to 104°F (0°C to 40°C). Business Impact: Reliable performance in typical building environments, lowering failure risk and warranty calls. Application: Commercial offices and residential spaces with variable temperatures.
Get a Quick Quote for a Eaton EWACD-C6-BX-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EWACD-C6-BX-L?
Enquire Now
FAQs
To install the EWACD-C6-BX-L, ensure the electrical box is a standard 120 V single‑phase circuit. Use flush mounting with back or side wiring as supported. Connect the dimmer to the EWFD30 controller per the EWAT wiring diagram, secure the faceplate, and test multi-location dimming in a controlled environment. Follow cULus Listed and NOM safety guidelines throughout the process.
Key specs include 120 V voltage rating, single‑phase operation, and height/width/depth of 4.25 in × 1.8 in × 1.75 in with a weight of 0.28 lb. Operating temperature range is 32°F to 104°F (0°C to 40°C). It supports flush mounting and has back and side wiring for flexible installation in standard 120 V lighting circuits.
Yes. The EWACD-C6-BX-L is designed for single‑phase 120 V lighting and supports multi‑location dimming. It is suitable for residential applications like living spaces and kitchens as well as light commercial settings such as offices and retail spaces seeking centralized dimming control and energy management.
The unit carries cULus Listed compliance and NOM certification, indicating conformance with safety and regulatory requirements in North American markets. These certifications support broad adoption in regulated projects and procurement processes.
Using the EWACD-C6-BX-L enables remote control, scheduling, and multi‑location dimming, contributing to energy savings and improved occupant comfort. Its compatibility with Eaton’s Wi‑Fi smart devices ecosystem reduces integration risk, accelerates deployments, and helps realize faster payback in retrofit projects.
