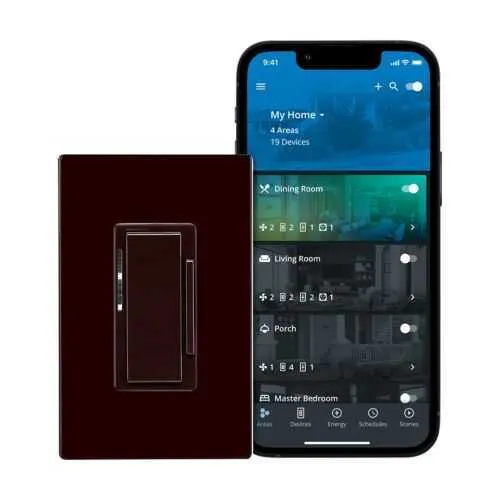

Eaton EWACD-C7-BX-L Wi-Fi smart dimmer - cULus Listed
Part Number: EWACD-C7-BX-L
Quick Summary
Eaton EWACD-C7-BX-L is a Wi-Fi smart dimmer designed for precise, remote lighting control in residential and light commercial applications. Too often, teams struggle with manual dimming, inconsistent light levels, and missed schedules, leading to energy waste and unhappy occupants. The device carries cULus Listed safety certification and NOM compliance, with a 120 V rating and flush-mount design to support single-phase, multi-location configurations. By enabling remote control, automation, and gateway integrations, it delivers energy savings, improved occupancy comfort, and easier maintenance in modernization projects and retrofit campaigns.
Product Information
Extended Description
EWACD-C7-BX-L Eaton: Eaton Wi-Fi smart dimmer, Flush, 120V, Back and side wire, Brown, Black, Gray, 32°F to 104°F (0°C to 40°C), Single-phase, Multi-location, Used with EWFD30, ES
Product Name
Eaton Wi-Fi smart dimmer
Catalog Number
EWACD-C7-BX-L
UPC
032664005336
Product Length/Depth
1.75 in
Product Height
4.25 in
Product Width
1.8 in
Product Weight
0.28 lb
Compliances
cULus Listed
Certifications
NOM
Voltage rating
120 V
Mounting method
Flush
Color
Brown Gray Black
Phase
Single-phase
Switch type
Multi-location
Wi-Fi smart devices brochure
Wi-Fi smart devices sell sheet
How to install: Eaton's Wi-Fi smart universal dimmer (WFD30) and accessory dimmer (WACD)
Feature: Wi‑Fi connectivity and multi-location support enable remote dimming, scheduling, and zone-based control. Business Impact: reduces energy waste and improves comfort across areas, leading to lower operating costs. Application: suitable for conference rooms, classrooms, and open-plan offices with centralized lighting management. Feature: Flush mount and compact dimensions provide a clean, code-compliant installation that integrates with standard wall plates. Business Impact: faster retrofits and a neater finish, reducing labor time and call-backs. Application: retrofit projects in existing enclosures requiring a low-profile dimmer. Feature: Back and side wiring compatibility offers flexible installation paths with minimal rewiring. Business Impact: lowers installation time and risk, preserving existing wiring strategies. Application: upgrades in older buildings or mixed-wiring environments. Feature: 120 V single‑phase operation and compatibility with EWFD30/WACD devices support reliable multi-location dimming. Business Impact: proven performance in typical North American circuits, enabling scalable lighting control. Application: large offices, classrooms, and hospitality spaces. Feature: Certifications and safety ratings—including cULus Listed and NOM—boost compliance and market readiness. Business Impact: simplifies procurement for regulated projects and accelerates project approvals. Application: regulated facilities and distributed architectures in North America and Mexico.
Get a Quick Quote for a Eaton EWACD-C7-BX-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EWACD-C7-BX-L?
Enquire Now
FAQs
Install EWACD-C7-BX-L as the accessory dimmer in a multi-location configuration with an EWFD30 master and WACD accessory. Connect to line and load per standard wiring practices, ensure proper back or side wiring, and mount flush to the wall. Verify compatibility with the Eaton dimming kit and test communication between master and accessory locations to confirm reliable dimming signals across zones.
EWACD-C7-BX-L operates at 120 V and is designed for single-phase circuits. It features flush mounting with a compact footprint (approximately 1.75 in depth, 4.25 in height, 1.8 in width) and supports back and side wiring. The device is built for a wide operating range (32°F to 104°F) and is cULus Listed with NOM certification for safety and regulatory compliance.
Yes. The EWACD-C7-BX-L is intended for multi-location dimming in single-phase circuits and works with Eaton’s WFD30 master and WACD accessory dimmers. Its flush-mount design and 120 V rating make it ideal for retrofits in offices, classrooms, and small commercial spaces where centralized lighting control and energy efficiency are priorities.
The device is cULus Listed and NOM certified, signaling compliance with North American safety standards and Mexican market requirements. These certifications support safer installation, reliability in operation, and smoother procurement for regulated projects in complex building environments.
Expect improved energy efficiency through dimming-enabled scheduling and occupancy-based control, reduced maintenance via remote monitoring, and faster changeouts through compatibility with existing Eaton master/accessory dimmer systems. The result is lower operating costs, enhanced occupant comfort, and a path to scalable lighting automation across multiple zones.
