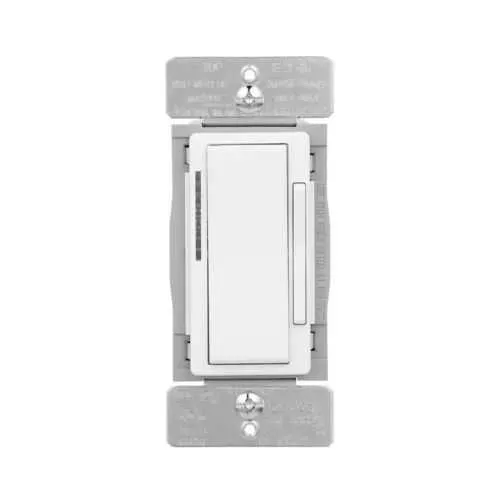

Eaton EWACD-W-BX-T Wi-Fi Smart Dimmer - cULus Listed
Part Number: EWACD-W-BX-T
Quick Summary
The Eaton EWACD-W-BX-T is a Wi-Fi smart dimmer that enables remote, multi-location lighting control in commercial and industrial spaces. When dimming performance or wiring compatibility slows projects, you need a reliable, standards-based solution that integrates with your EWFD30 ecosystem and existing electrical infrastructure. This device carries cULus Listed compliance and NOM certification, demonstrating regulatory alignment for North American installations, while its 120 V, single-phase design fits standard industrial circuits. With straightforward setup and multi-location control, it helps facilities teams monitor energy use and adjust lighting across zones. It operates from 32°F to 104°F (0°C to 40°C), expanding suitability for typical facility environments. The product carries regulatory support with cULus Listed compliance and NOM certification, helping you meet North American safety and performance standards while delivering reliable operation.
Product Information
Extended Description
EWACD-W-BX-T Eaton: Eaton Wi-Fi smart dimmer, Flush, 120V, Back and side wire, White, 32°F to 104°F (0°C to 40°C), Single-phase, Multi-location, ES, Used with EWFD30, Tray
Product Name
Eaton Wi-Fi smart dimmer
Catalog Number
EWACD-W-BX-T
UPC
032664005343
Product Length/Depth
1.75 in
Product Height
4.25 in
Product Width
1.8 in
Product Weight
0.28 lb
Compliances
cULus Listed
Certifications
NOM
Voltage rating
120 V
Mounting method
Flush
Color
White
Phase
Single-phase
Switch type
Multi-location
Wi-Fi smart devices brochure
Wi-Fi smart devices sell sheet
How to install: Eaton's Wi-Fi smart universal dimmer (WFD30) and accessory dimmer (WACD)
Feature: Wi-Fi connectivity for remote dimming control. Business Impact: Enables centralized energy management and scheduling, reducing on-site visits. Application: Office campuses and manufacturing floors requiring zone-based lighting control. Feature: Multi-location capability in a 120 V single-phase system. Business Impact: Consistent lighting across multiple zones with simplified wiring, lowering installation time. Application: Warehouses and distribution centers with multiple loading areas. Feature: Flush mounting and EWFD30 tray compatibility. Business Impact: Space-saving installations and faster retrofits in existing panels. Application: Retrofit projects in compact electrical enclosures. Feature: Regulatory compliance with cULus Listed and NOM certification. Business Impact: Regulatory risk mitigation and smoother approvals for North American builds. Application: Industrial facilities adhering to UL safety standards. Feature: Back and side wiring options with precise dimensions. Business Impact: Flexible wiring choices and a compact footprint that fits tight spaces. Application: Retrofit in congested control panels and wall boxes.
Get a Quick Quote for a Eaton EWACD-W-BX-T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EWACD-W-BX-T?
Enquire Now
FAQs
Start by confirming 120 V single-phase supply and turning off power. Use the flush-mount method and connect via back or side wiring as supported. Mount the dimmer in the appropriate enclosure, then align with the EWFD30 tray for multi-location control. Verify commissioning with local controls and perform a functional dimming test across zones.
EWACD-W-BX-T is designed for multi-location dimming on a single 120 V circuit and is compatible with EWFD30 trays, enabling synchronized control across zones. Its flush-mount form factor simplifies installation in crowded panels, reducing wiring complexity and enabling consistent lighting levels in offices, warehouses, and production areas.
The EWACD-W-BX-T carries cULus Listed compliance and NOM certification, ensuring UL-based safety certification for North American use and compliance with applicable international standards, which helps streamline approvals for new installations and retrofits.
The dimmer supports back and side wiring, providing flexible connection options for existing wiring configurations. Its flush mounting and compact dimensions (1.75 in depth, 4.25 in height, 1.8 in width) facilitate retrofits in tight spaces without sacrificing performance, making it suitable for panel upgrades and new installations alike.
Expect improved energy management through remote dimming and zone control, reduced maintenance visits due to reliable Wi-Fi connectivity, and faster retrofit timelines thanks to easy EWFD30 compatibility. These gains translate to lower operating costs and more predictable lighting performance across multi-zone facilities.
