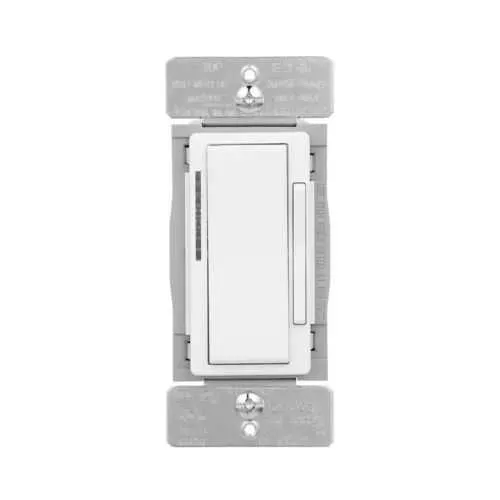

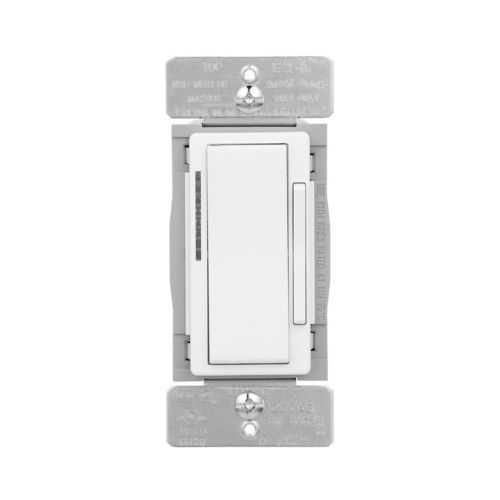

Eaton EWACD-W-BX-TC Wi-Fi Smart Dimmer - cULus Listed
Part Number: EWACD-W-BX-TC
Quick Summary
Eaton Wi‑Fi smart dimmer EWACD-W-BX-TC enables wireless lighting control for residential and commercial applications. This compact, flush-mount device addresses the common pain points of retrofit projects where wiring complexity and inconsistent dimming frustrate users. The unit carries cULus Listed and NOM certifications, underscoring regulatory compliance across North American and Mexican markets. With 120 V single‑phase operation and multi-location capability, it offers centralized dimming control without sacrificing installation simplicity. Designed to integrate with existing Eaton devices and ecosystems, it delivers meaningful business value through energy management, improved occupant comfort, and scalable smart-building deployment.
Product Information
Extended Description
EWACD-W-BX-TC Eaton: Eaton Wi-Fi smart dimmer, Flush, 120V, Back and side wire, White, 32°F to 104°F (0°C to 40°C), Single-phase, Multi-location, Used with EWFD30, EF, Tray, CAN
Product Name
Eaton Wi-Fi smart dimmer
Catalog Number
EWACD-W-BX-TC
UPC
032664005350
Product Length/Depth
1.75 in
Product Height
4.25 in
Product Width
1.8 in
Product Weight
0.28 lb
Compliances
cULus Listed
Certifications
NOM
Voltage rating
120 V
Mounting method
Flush
Color
White
Phase
Single-phase
Switch type
Multi-location
Wi-Fi smart devices brochure
Wi-Fi smart devices sell sheet
How to install: Eaton's Wi-Fi smart universal dimmer (WFD30) and accessory dimmer (WACD)
Wireless, Wi‑Fi connectivity enables remote control and integration with building management systems, reducing site visits and enabling real-time dimming adjustments. Business impact: faster commissioning and lower operational costs in offices, classrooms, and retail environments. Application: multi-location dimming across stairwells or conference rooms with EWFD30 compatibility. Flush mounting and compact dimensions deliver a cleaner electrical installation and easier retrofits, improving aesthetics and reducing enclosure space requirements. Business impact: less remodeling work and faster project timelines. Application: new builds and renovations in tight wall boxes. 120 V single‑phase operation and back/side wiring support ensure compatibility with standard North American electrical systems, minimizing rewiring and intermediate adapters. Business impact: lower installation risk and enhanced reliability. Application: residential and light commercial installations. Compatibility with EWFD30, EF, Tray, CAN enables scalable dimming schemes across multiple devices, simplifying control logic and maintenance. Business impact: consistent user experience and streamlined support. Application: multi-device dimming in classrooms, retail displays, and office suites. Regulatory compliance with cULus Listed and NOM certification provides proven safety and regional acceptance, reducing risk during inspections. Business impact: smoother approvals and fewer project delays. Application: commercial lighting retrofit and new construction in regulated environments. Operating from 32°F to 104°F (0°C to 40°C) ensures reliable performance in variable environments, expanding placement options. Business impact: dependable dimming in HVAC-adjacent spaces and outdoor-adjacent indoor areas. Application: industrial parks, warehouses, and healthcare facilities with fluctuating temperatures.
Get a Quick Quote for a Eaton EWACD-W-BX-TC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EWACD-W-BX-TC?
Enquire Now
FAQs
The EWACD-W-BX-TC is designed for flush mounting with back and side wiring so it can drop into standard wall boxes used in residential and commercial spaces. When integrating with a compatible EWFD30 or other Eaton dimming devices, follow the device’s wiring schematic to establish a multi-location control network. Ensure the circuit is 120 V single-phase and within the operating temperature range for reliable performance.
Yes. The EWACD-W-BX-TC is designed to be used with EWFD30 and other Eaton lighting control components, enabling scalable multi-location dimming across zones or rooms. This compatibility supports consistent user experiences and simplified maintenance across a campus or commercial space.
Key ratings include 120 V voltage and single-phase operation. The unit supports flush mounting and has an operating temperature range of 32°F to 104°F (0°C to 40°C). These specifications ensure reliable dimming performance in typical indoor environments and standard North American electrical systems.
The product is cULus Listed and NOM certified. These certifications indicate product safety and regulatory compliance for use in North American and Mexican markets, helping to streamline inspections and reduce deployment risk in commercial facilities.
Benefits include energy savings from dimming control, reduced maintenance through centralized Wi‑Fi management, and faster commissioning via remote configuration and monitoring. The multi-location capability and compatibility with EWFD30 enable scalable deployments across rooms or zones, lowering total cost of ownership over time.
