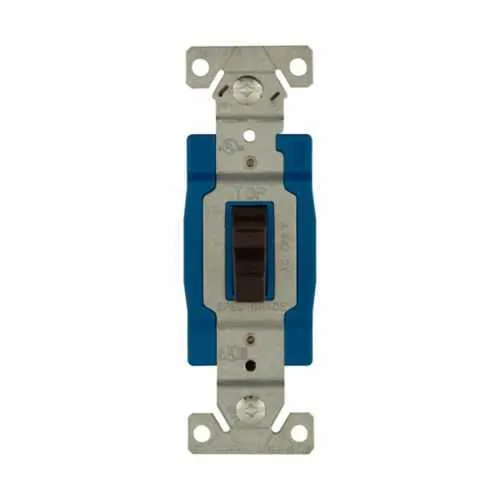

Eaton EZ1201B EZLink Toggle Switch - cULus Listed
Part Number: EZ1201B
Quick Summary
EZ1201B EZLink modular toggle switch is a compact control device designed to reliably switch 120–277 Vac circuits in commercial panels. Engineers often struggle with limited space, inconsistent wiring schemes, and the need for quick, compliant installations. This device carries cULus Listed, NOM, and Federal Specification Classification W-C-596G certifications, providing safety and regulatory alignment for panel-mounted control. Its modular design supports wiring devices within Eaton EZLink families, delivering dependable performance, reduced installation time, and lower long-term operating costs in industrial automation projects. With a 15A amperage rating and 60 Hz operation, it handles typical control loads while its brown finish integrates with standard electrical aesthetics.
Product Information
Extended Description
EZ1201B Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, single-pole, three-wire, brown
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1201B
UPC
032664009303
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
Brown
Feature: 15A amperage rating. Benefit: Handles standard control loads without overheating or nuisance trips, enabling reliable operation of feeders and signaling circuits. Application: Use in panel assemblies controlling motors or actuators in manufacturing lines. Feature: 120-277 Vac, 60 Hz. Benefit: Wide compatibility across equipment designed for North American power standards, reducing the need for multiple variants. Application: Ideal for modular devices in control panels used in packaging and process lines. Feature: Single-pole, three-wire configuration. Benefit: Simplified wiring reduces assembly errors and commissioning time. Application: Streamlined integration in compact control enclosures. Feature: Brown color and compact footprint. Benefit: Color-coding and space efficiency facilitate quick identification and dense panel layouts. Application: Suitable for panel-mounted installations in automation cabinets. Feature: Certifications cULus Listed, NOM, W-C-596G. Benefit: Regulatory compliance and safety assurances for regulated environments. Application: Critical for OEM equipment and serviceable automation assets. Feature: Dimensions and weight (1.91 in depth, 1.75 in width, 4.4 in height, 0.192 lb). Benefit: Small footprint enables dense panel design and easy handling during installation. Application: Used in space-constrained wiring closets and modular device assemblies. Feature: Compatibility with EZLink modular devices. Benefit: Reduces procurement complexity and accelerates rollout of modular automation solutions. Application: Ideal for scalable control systems in industrial automation and commercial facilities.
Get a Quick Quote for a Eaton EZ1201B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1201B?
Enquire Now
FAQs
The EZ1201B is designed for single-pole, three-wire operation at 120-277 Vac and 60 Hz, making it fully compatible with Eaton EZLink modular devices. Its compact dimensions (1.91 in depth, 1.75 in width, 4.4 in height) support dense panel layouts and straightforward field wiring, reducing installation time and risk of wiring errors.
EZ1201B provides a 15A amperage rating with a 120-277 Vac, 60 Hz voltage range. This combination covers most standard control loads in commercial and light industrial equipment, enabling a single switch solution for diverse devices without needing multiple variants or special wiring schemes.
Yes. The EZ1201B is designed for panel-mounted control within modular devices. Its single-pole configuration supports common signaling and control circuits, and its UL/NOM/W-C-596G certifications ensure regulatory compliance for automation panels in manufacturing and process environments.
EZ1201B carries cULus Listed, NOM, and Federal Specification W-C-596G certifications. These attest to electrical safety, performance under typical service conditions, and adherence to government specifications, which is critical for approved use in regulated facilities and OEM integrations.
The EZ1201B offers reliable, long-lasting switching with a compact form factor that reduces panel real estate and installation time. Its modular compatibility minimizes spare part variety, lowering procurement costs. Routine maintenance is minimal due to standard wiring practices, contributing to lower downtime and faster maintenance cycles in production lines.
