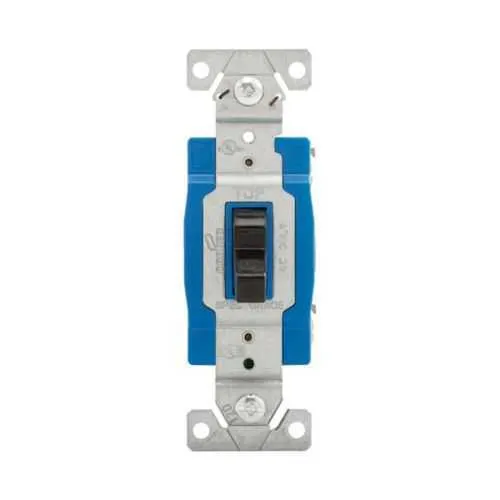

Eaton EZ1201BK EZLink modular toggle switch - cULus Listed
Part Number: EZ1201BK
Quick Summary
The Eaton EZLink modular toggle switch is a reliable on/off control device designed for electrical panels. It addresses common wiring complexity and space constraints by offering a compact, modular solution that simplifies panel layouts and reduces installation time. This device carries critical certifications to support safe, compliant operation in regulated environments, including cULus Listed, NOM, and Federal Specification Classification W-C-596G. With its 15 A, 120-277 Vac rating and single-pole configuration, it delivers predictable performance for standard control circuits while aligning with broader automation and safety strategies. For procurement and integration, its compatibility with modular devices and standard panel practices helps streamline sourcing and installation workflows.
Product Information
Extended Description
EZ1201BK Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, single-pole, three-wire, black
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1201BK
UPC
032664009310
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
Black
Feature: 15 A amperage rating. Benefit: Handles typical control loads without oversizing equipment, reducing component counts and lifecycle cost. Application: General purpose control in industrial panels where reliable switching is required.Feature: 120-277 Vac voltage rating. Benefit: Supports diverse supply environments, enabling broader deployment across machines and lines. Application: Control circuits in facilities with varying mains voltages while maintaining single-pole simplicity.Feature: Single-pole, three-wire configuration. Benefit: Simplified wiring reduces installation time and potential miswiring during field assembly. Application: Main control circuits in compact panel enclosures where straightforward on/off control is needed.Feature: Compact dimensions (1.91 in depth, 4.4 in height, 1.75 in width) and weight (0.192 lb). Benefit: Space-efficient footprint fits tighter panels and enclosures, enabling cleaner layouts. Application: Retrofit and new-build panels with limited mounting depth.Feature: Black housing for visibility and aesthetics. Benefit: Improves operator recognition and panel aesthetics, supporting clear status indication in busy environments. Application: Control stations and equipment enclosures where readability matters.Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Benefit: Regulatory compliance reduces sourcing risk and accelerates approval cycles. Application: Industrial and commercial equipment requiring verified safety and standardization.
Get a Quick Quote for a Eaton EZ1201BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1201BK?
Enquire Now
FAQs
EZ1201BK is a single-pole, 15A toggle switch designed for 120-277 Vac systems. Its compact dimensions (1.91 in depth, 4.4 in height, 1.75 in width) and modular form support straightforward mounting in standard panels. For best results, pair with compatible EZLink modular devices and follow enclosure mounting guidelines to maintain clear wiring, accessibility, and compliance.
Key specs include 15A amperage rating, voltage range 120-277 Vac at 60 Hz, and a single-pole, three-wire configuration. Confirm panel supply voltage matches 120-277 Vac and that the control circuit load remains within 15A to ensure safe operation and regulatory compliance.
Yes. The device is cULus Listed with NOM and Federal Specification Classification W-C-596G, signaling adherence to recognized safety and performance standards. While it is designed for general control tasks, always verify your specific regulatory requirements, including local codes and industry standards, before deployment.
Ideal for general control tasks in automation panels, machine control loops, and equipment enclosures where a compact, reliable on/off switch is required. Use in applications demanding quick wiring, standard panel mounting, and compatibility with modular EZLink devices to streamline control architecture and maintenance.
Its modular form and lightweight footprint simplify installation, reducing wiring time and error potential. The reliable 15A, 120-277 Vac operation minimizes failures and maintenance downtime, contributing to faster commissioning and improved uptime, which translates to lower total cost of ownership over the equipment lifecycle.
