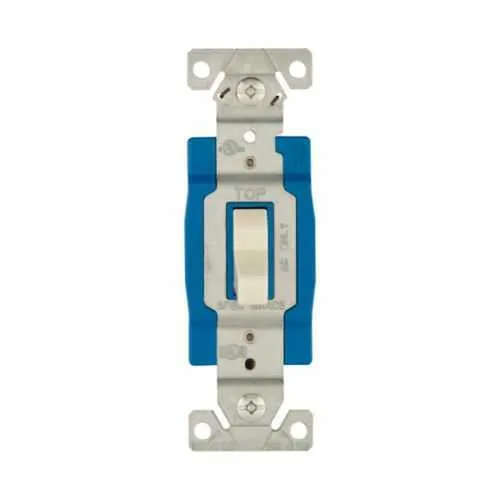

Eaton EZ1201LA EZLink modular toggle switch - cULus Listed
Part Number: EZ1201LA
Quick Summary
Eaton EZ1201LA modular toggle switch provides fast, reliable control for lighting and equipment in electrical control panels. Engineers often struggle with bulky devices, space constraints, and wiring errors in compact control envelopes. Its cULus listing, NOM certification, and Federal Specification W-C-596G support safety compliance across North America while you scale operations. This module's 15A, 120-277 Vac rating and single-pole design deliver dependable performance with a simple installation footprint, and it fits Eaton's modular devices ecosystem to reduce spare-part variety and streamline procurement.
Product Information
Extended Description
EZ1201LA Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, single-pole, three-wire, light almond
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1201LA
UPC
032664009334
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
Light Almond
Feature: 15A, 120-277 Vac rating provides broad load capability with a single device. Business Impact: Supports diverse lighting and equipment circuits without needing multiple switches, reducing part counts and inventory. Application: Control panels in industrial facilities requiring reliable load handling. Feature: Single-pole, three-wire configuration simplifies wiring and reduces installation time. Business Impact: Faster wiring, lower labor costs, and easier troubleshooting. Application: Panel assemblies for lighting and auxiliary control circuits. Feature: Compact footprint—1.91 in depth, 1.75 in width, 4.4 in height—maximizes enclosure space. Business Impact: Higher areal efficiency in tight control panels and better thermal management. Application: Small to mid-size electrical enclosures with modular devices. Feature: Light Almond color and modular device compatibility support visibility and aesthetic integration. Business Impact: Improved operator identification and standardized labeling across equipment. Application: Control room panels and equipment housings. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G ensure regulatory compliance. Business Impact: Reduced compliance risk and simplified audits. Application: Marine, industrial, and commercial installations with strict safety requirements. Feature: Compatibility with Eaton’s EZLink modular devices ecosystem enables scalable configurations. Business Impact: Faster deployment, streamlined maintenance, and consistent performance across devices. Application: New installations and retrofits in facilities using Eaton modular devices.
Get a Quick Quote for a Eaton EZ1201LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1201LA?
Enquire Now
FAQs
EZ1201LA is designed for modular device installations in control panels and works within Eaton’s modular devices ecosystem. Its compact footprint and single-pole, three-wire configuration simplify wiring, making it suitable for many standard electrical enclosures without requiring special mounting adapters.
Key specs include a 15A amperage rating and a voltage range of 120-277 Vac at 60 Hz, configured as a single-pole, three-wire device. This combination supports a broad set of lighting and control circuits while maintaining safe, reliable operation.
Yes. The EZ1201LA is a modular toggle switch built for panel installations. Its compact dimensions and compatibility with Eaton’s modular devices make it suitable for industrial panels where space, wiring simplicity, and standardized components are prioritized.
The device is cULus Listed and NOM certified with Federal Specification W-C-596G. These certifications support compliance with safety and regulatory requirements in North America, facilitating audits and ensuring suitability for regulated industrial and commercial applications.
Physical specs are: length/depth 1.91 in, width 1.75 in, height 4.4 in, and weight 0.192 lb. These compact dimensions enable easy fitment in limited spaces and contribute to streamlined installation and panel layout.
