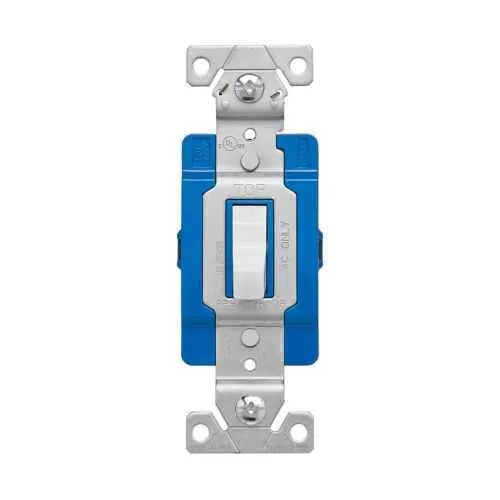

Eaton EZ1201W EZLink modular toggle switch - cULus Listed
Part Number: EZ1201W
Quick Summary
Eaton EZ1201W modular toggle switch provides reliable panel control for 120–277 VAC circuits. Engineers often struggle with miswiring, lengthy commissioning, and inconsistent performance across control panels and environments. The device carries cULus listing, NOM compliance, and Federal Specification W-C-596G, delivering robust regulatory approvals for diverse industrial settings. Designed for modular installations in control cabinets, it offers a compact footprint and straightforward wiring. With a 15 A rating and single-pole, three-wire configuration, it supports common field wiring practices while reducing downtime. This combination delivers predictable operation, lower lifecycle costs, and compliance peace of mind for manufacturers pursuing safer, more efficient panel automation.
Product Information
Extended Description
EZ1201W Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, single-pole, three-wire, white
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1201W
UPC
032664009365
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
White
Feature: 15 A, 120–277 VAC single-pole operation. Business Impact: Handles standard industrial loads with reliable switching and minimal voltage drop, reducing nuisance trips and downtime. Application: Ideal for control panels in manufacturing lines where dependable power control is critical. Feature: Compact 1.91 in depth, 4.4 in height, 1.75 in width footprint. Business Impact: Saves panel space, simplifies wiring, and lowers cabinet redesign costs during upgrades. Application: Suitable for retrofit projects and new installations with tight enclosure envelopes. Feature: White color for easy visibility and wiring color-coding compatibility. Business Impact: Improves operator clarity and reduces misidentification in high-risk environments. Application: Enclosures with mixed device types and color-coding schemes. Feature: cULus Listed, NOM, and Federal Specification W-C-596G certifications. Business Impact: Ensures regulatory compliance, simplifies procurement audits, and lowers supplier risk. Application: Heavy-duty industrial environments requiring traceable approvals. Feature: EZLink modular compatibility and easy wiring. Business Impact: Speeds installation, minimizes field errors, and supports modular device ecosystems. Application: Control panels where modular devices enable scalable automation and straightforward maintenance.
Get a Quick Quote for a Eaton EZ1201W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1201W?
Enquire Now
FAQs
For proper installation, ensure a single-pole, three-wire configuration is used with a 120–277 VAC supply. Check panel cutouts to accommodate the 1.75 in width, 4.4 in height, and 1.91 in depth profile. Use appropriate enclosures and provide secure wiring termination to minimize loose connections and potential arcing in high-traffic panels.
Yes. EZ1201W is rated for 120–277 VAC at 15 A. This makes it suitable for common industrial control circuits in panelboards, machines, and equipment where a robust single-pole switching solution is required, providing reliable operation within the standard current and voltage ranges used in manufacturing and automation environments.
EZ1201W is cULus Listed, NOM compliant, and classified under Federal Specification W-C-596G. These certifications confirm meeting widely recognized safety, performance, and procurement standards, facilitating audits, reducing supply chain risk, and ensuring compatibility with regulated industrial installations across North America.
EZ1201W is designed to integrate with Eaton's EZLink modular devices, offering straightforward wiring and a compact footprint that simplifies expansion in control panels. Its standardized form factor reduces field errors during substitution or upgrades and enables scalable panel architectures without extensive rewiring.
Typical applications include control panels for conveyors, machine tools, and processing equipment where reliable on/off control is needed. Its 15 A rating, white finish for visibility, and modular compatibility make it suitable for new panel builds, retrofits, and situations requiring fast commissioning and regulatory compliance in harsh industrial environments.
