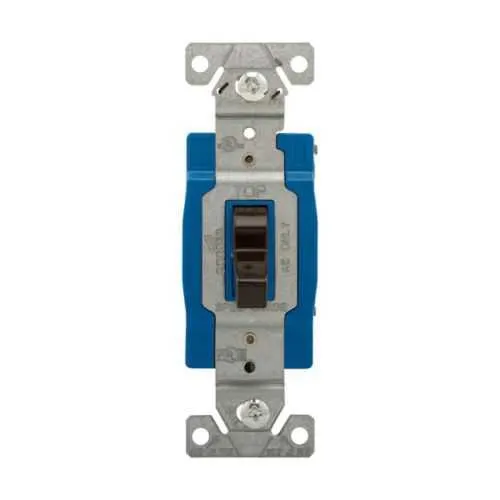

Eaton EZ1203B EZLink modular toggle switch - cULus Listed
Part Number: EZ1203B
Quick Summary
EZLink modular toggle switch by Eaton is a compact control device enabling reliable manual switching in panel installations. Engineers often contend with cramped enclosures, bulky devices, and inconsistent safety ratings that slow assemblies and raise risk. This model carries cULus Listed, NOM-certified, and Federal Specification W-C-596G to help you meet rigorous North American requirements in procurement and compliance. Its modular design supports quick replacement and scalable control architectures across multiple machines, while a broad 120–277 Vac range and 15 A rating cover mainstream automation tasks. In practice, you gain faster commissioning, reduced wiring errors, and lower ongoing maintenance costs, with enhanced visibility and compatibility across Eaton’s EZLink modular devices for streamlined panel integration.
Product Information
Extended Description
EZ1203B Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, three-pole, four-wire, brown
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1203B
UPC
032664009372
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Brown
Feature → Business Impact → Application. The EZ1203B delivers a 15 A rating at 120–277 Vac, enabling reliable switching for common industrial loads without oversizing control panels, reducing component counts and energy waste in panelized systems; this speeds wiring and improves thermal management in machine enclosures. Three-pole, four-wire configuration provides precise, interlocked control for multi-circuit applications, simplifying logic wiring and improving safety interlocks in automated lines. Its compact footprint—1.91 in length, 1.75 in width, 4.4 in height—and light 0.192 lb weight minimize panel cutouts and enclosure space, enabling denser control layouts and easier field service. Certifications (cULus Listed, NOM, W-C-596G) translate to faster approvals and consistent performance in harsh environments, while brown color aids visibility in busy panels. The design is compatible with EZLink modular devices, easing upgrade paths and spare-parts planning for maintenance teams. Installation benefits include reduced wiring errors, faster stock replenishment, and predictable lifecycle costs in manufacturing environments requiring reliable manual controls.
Get a Quick Quote for a Eaton EZ1203B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1203B?
Enquire Now
FAQs
Yes. The EZ1203B is designed as a modular toggle switch that integrates with Eaton EZLink modular devices. Its compact dimensions (1.91 in depth, 1.75 in width, 4.4 in height) fit common panel cutouts, and the three-pole, four-wire configuration supports standard control circuits. When integrating with existing panel hardware, ensure the enclosure has adequate clearance for safe operation and that wiring harnesses are rated for 120–277 Vac. Field replacement is simplified due to the modular design, reducing downtime during maintenance or upgrades.
The EZ1203B is rated for 15 A at 120–277 Vac with a three-pole, four-wire configuration. This makes it suitable for common industrial loads, including lighting control and motor circuits within typical automation panels. The device’s brown finish aids visibility in busy panels, and its cULus Listing, NOM certification, and W-C-596G compliance support regulatory acceptance and procurement requirements in North America.
Yes, for many standard automation scenarios. With a 15 A rating and broad 120–277 Vac range, the EZ1203B supports a wide array of control tasks in machine panels and automation lines. Its three-pole, four-wire design enables robust interlocking and interconnection across multiple control circuits. While it isn’t intended for high-power motor starting, it excels in user-interface controls, signal switching, and light-load switching within a modular, scalable EZLink ecosystem.
The EZ1203B carries cULus Listed, NOM certification, and Federal Specification W-C-596G. These certifications indicate compliance with recognized safety and performance standards in North America, streamline procurement with government and large-scale buyers, and reduce risk during audits. For panel builders, this means faster approvals, fewer redesigns, and better support for regulatory labeling and documentation in industrial environments.
The EZLink modular design simplifies assembly and maintenance by enabling straightforward replacement and scalable expansion across panels. The compact footprint reduces cabinet depth and enables higher packing density, which lowers initial wiring time and future upgrade costs. Compatibility with existing EZLink modular devices means spare parts are interchangeable, leading to lower total cost of ownership and quicker mean time to repair in busy manufacturing environments.
