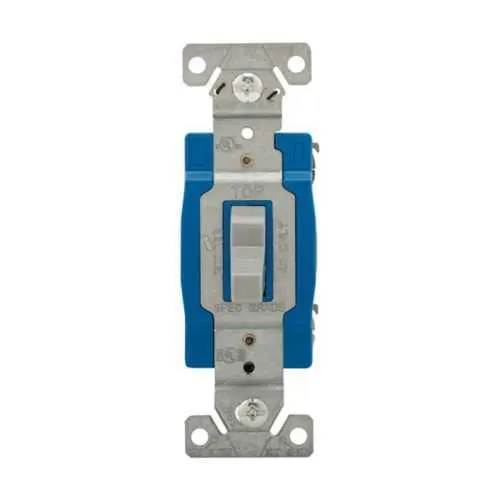

Eaton EZ1203GY EZLink modular toggle switch - cULus Listed
Part Number: EZ1203GY
Quick Summary
The Eaton EZLink modular toggle switch is a reliable control device for 120-277 Vac circuits in industrial panels. Engineers often battle wiring complexity, space constraints, and downtime during panel updates. This modular design reduces both footprint and effort, enabling faster installation and easier field maintenance. It carries cULus Listed, NOM, and Federal Specification Classification W-C-596G certifications, underscoring safety and regulatory compliance across North American markets. By aligning with standard modular frames, EZ1203GY supports scalable control strategies and reduced spare-part diversity. For teams pursuing consistent performance and lifecycle cost savings, this switch pairs a compact footprint with robust electrical ratings and clear documentation, making it a prudent choice for automation projects and control panel modernization.
Product Information
Extended Description
EZ1203GY Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, three-pole, four-wire, gray
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1203GY
UPC
032664009396
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Gray
Amperage and voltage handling: The EZ1203GY is rated for 15 A and 120-277 Vac, enabling reliable control of common automation loads without overspecifying the circuit. Business impact: reduces part proliferation while ensuring compliance with typical industrial requirements; Application: control panels and machine interfaces operating on standard automation voltages. Modular frame compatibility: As a part of Eaton’s EZLink modular devices, it installs quickly within standard modular enclosures, minimizing field wiring and enabling scalable panel design. Business impact: faster project delivery and lower installation labor; Application: multi-machine automation systems and centralized control cabinets. Three-pole, four-wire configuration: This topology provides robust handling of live lines and neutral references, improving fault tolerance and safety. Business impact: simplifies wiring schemes and enhances predictability in coordination with other control devices; Application: motor control circuits and process automation where reliable switching is essential. Gray color and compact footprint: The 1.75 in width and 1.91 in depth enable dense panel layouts without sacrificing clearance. Business impact: higher panel density, easier labeling, and cleaner installations; Application: compact control panels in automated lines. Certifications and traceability: cULus Listed, NOM, and W-C-596G compliance ensure regulatory alignment and audit readiness. Business impact: reduces compliance risk and supports procurement standards; Application: regulated manufacturing environments. UPC and cataloging: UPC 032664009396 and catalog EZ1203GY streamline ordering and inventory control. Business impact: improves procurement accuracy and reduces part-number confusion; Application: large-scale install bases and distribution environments.
Get a Quick Quote for a Eaton EZ1203GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1203GY?
Enquire Now
FAQs
The EZ1203GY is designed for use with Eaton EZLink modular frames, enabling straightforward installation in standard panel cutouts. It supports a three-pole, four-wire configuration and aligns with common modular device spacings, reducing the need for custom mounting arrangements and speeding up panel modernization projects.
This switch is rated for 15 A at 120-277 Vac with a 60 Hz frequency. It is a three-pole, four-wire device, designed for control circuits in industrial automation and machine control panels. Plan wiring to accommodate neutral and ground references as appropriate for your load and safety requirements.
Yes. The three-pole, four-wire configuration and 15 A rating make EZ1203GY appropriate for selecting and interlocking control signals in automation panels, motor control centers, and process-control interfaces, while its gray modular form-factor supports dense panel layouts.
The device is cULus Listed, NOM, and carries Federal Specification Classification W-C-596G. These certifications confirm compliance with North American electrical safety and product standards, aiding regulatory audits and ensuring compatibility with established procurement requirements for industrial facilities.
The modular EZLink design reduces wiring complexity, speeds up installation, and simplifies future maintenance or expansion. With robust electrical ratings and established certifications, it lowers lifecycle costs by reducing spare parts diversity and enabling quicker panel upgrades without compromising safety or performance.
