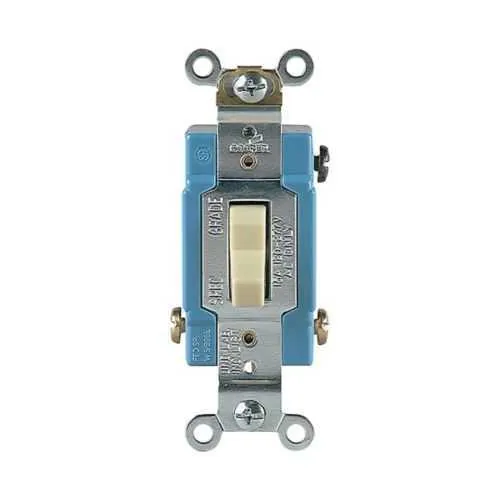

Eaton EZ1203V EZLink toggle switch - cULus Listed
Part Number: EZ1203V
Quick Summary
The Eaton EZ1203V EZLink modular toggle switch provides reliable control for lighting and motor circuits in industrial panels. Design engineers often wrestle with compact form factors that meet 15 A, 120–277 Vac requirements while keeping wiring simple. This device is cULus Listed and NOM certified, with Federal Specification W-C-596G, ensuring safety compliance, traceability, and field acceptance. Its modular design and ivory finish support quick installations in tight spaces, while its three-pole, four-wire configuration suits complex control schemes. For panel builders and integrators, this combination translates to faster builds, reduced error potential, and stronger regulatory alignment across automation projects.
Product Information
Extended Description
EZ1203V Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, three-pole, four-wire, ivory
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1203V
UPC
032664009426
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Ivory
Feature: 15A amperage rating and 120–277 Vac voltage range. Business Impact: Enables safe, single-device control of diverse loads without stocking multiple variants, reducing procurement complexity. Application: Lighting and motor control circuits in factory automation environments. Feature: Three-pole, four-wire configuration. Business Impact: Supports multi‑circuit control with improved wiring management and fault isolation. Application: Complex control panels requiring coordinated switching. Feature: Compact footprint (1.91 in depth, 1.75 in width, 4.4 in height). Business Impact: Easier fit in crowded enclosures and ease retrofit in existing panels, lowering installation time. Application: Panel upgrades and new machine builds where space is at a premium. Feature: Ivory color and modular EZLink design. Business Impact: Enhanced visibility and streamlined field substitutions with compatible modular devices. Application: Standardized human-machine interfaces and clear device identification. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Strong regulatory compliance and safer, auditable installations. Application: Industrial and commercial control environments requiring robust safety approvals.
Get a Quick Quote for a Eaton EZ1203V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1203V?
Enquire Now
FAQs
EZ1203V fits standard panel footprints with a compact 1.91 in depth and 1.75 in width, allowing straightforward retrofits and new builds. It supports a three-pole, four-wire configuration and 120–277 Vac operation, helping maintain clean wiring while meeting space constraints and accessibility requirements in control enclosures.
The device is rated at 15A and operates over 120–277 Vac, 60 Hz, suitable for lighting and motor control in industrial panels. Its modular EZLink design simplifies wiring schematics, reduces harness complexity, and supports reliable switching performance within typical automation environments.
Best suited for control panels in manufacturing, packaging lines, and facility automation where space is limited and robust switching is required. The three-pole, four-wire configuration supports multi-circuit control, while the ivory finish enhances visibility in crowded control stations.
EZ1203V carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, ensuring safety, compliance with US and NOM standards, and reliable performance in regulated industrial environments. These certifications help with documentation, audits, and field approvals during system integration.
The modular design reduces downtime during replacements or upgrades by enabling easier substitutions and standardized parts. Compliance certifications lower risk and rework costs, while the compact footprint speeds installation, contributing to lower labor time and a faster return on investment in automation projects.
