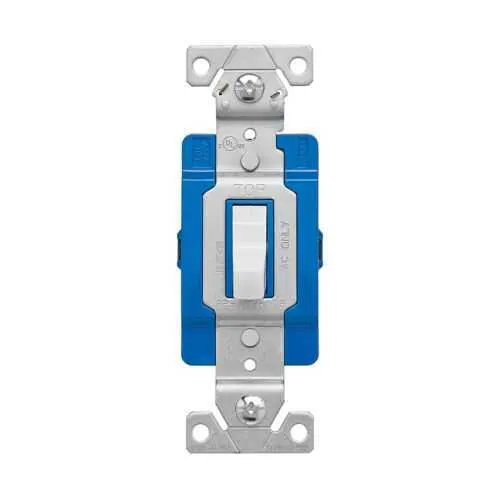

Eaton EZ1203W EZLink modular toggle switch - cULus Listed
Part Number: EZ1203W
Quick Summary
EZLink modular toggle switch from Eaton is a compact control device for 15 A, 120–277 Vac circuits in industrial panels. Engineers often face wiring complexity and compatibility challenges when upgrading legacy equipment, risking downtime and costly rework. This EZ1203W unit is built as a three-pole, four-wire modular switch that fits standard EZLink devices for streamlined field installation. It is cULus Listed, NOM certified, and carries Federal Specification Classification W-C-596G, supporting robust safety and regulatory compliance across North American applications. By leveraging modular design and a clearly defined cataloging system, maintenance teams can reduce spare-part inventories while accelerating commissioning. The result is improved reliability, safer operation, and lower total cost of ownership for panel builders and integrators.
Product Information
Extended Description
EZ1203W Eaton: Eaton EZLink modular toggle switch, 15 A, 120-277 Vac, 60 Hz, three-pole, four-wire, white
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1203W
UPC
032664009433
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
White
Feature: Amperage and voltage rating enables direct control of common loads in industrial panels. Business Impact: Simplifies panel design and reduces part variety, leading to faster assembly and lower inventory costs. Application: Use in control circuits for machine tools and process lines without upsizing components. Feature: Three-pole, four-wire configuration improves control and fault isolation. Business Impact: Enhances safety and reliability in multi-wire and three-phase systems, lowering the risk of miswiring. Application: Suitable for standard control panels and interlocking circuits in manufacturing lines. Feature: Compact footprint and white finish for visibility. Business Impact: Maximizes enclosure efficiency and improves operator awareness in busy control rooms. Application: Fits within standard modular enclosures and faceplates where space is at a premium. Feature: cULus Listed, NOM, and W-C-596G certifications. Business Impact: Streamlines compliance across US and international projects, reducing QA cycles and risk. Application: Ideal for regulated environments in automation and process industries. Feature: Compatibility with EZLink modular devices. Business Impact: Enables rapid upgrades and standardized installation practices, cutting commissioning time. Application: Panel refurbishment projects and new equipment installations across OEMs and integrators. Insight: In contemporary industrial settings, modular toggle switches like EZ1203W align with lean installation practices, minimizing wiring errors and enabling faster downtime recovery for line changeovers and routine maintenance.
Get a Quick Quote for a Eaton EZ1203W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1203W?
Enquire Now
FAQs
EZ1203W is designed for standard modular EZLink devices and accepts typical panel mount configurations in compatible enclosures. It fits within common faceplates and DIN-rail mounted assemblies used in industrial control panels. For best results, verify enclosure depth and mounting clearances (1.91 in depth, 4.4 in tall) and plan wire routing to maintain the four-wire, three-pole configuration. This approach minimizes install time and reduces risk of wiring errors during retrofits.
EZ1203W is a three-pole, four-wire toggle switch rated for 15 A at 120–277 Vac, 60 Hz. This makes it suitable for direct control of typical control circuits in industrial environments without needing additional transformers or step-down devices. The three-pole design supports multi-wire control schemes, enabling clean separation of control paths and improved fault isolation in panel assemblies.
Yes, the EZ1203W is cULus Listed and also carries NOM certification with Federal Specification Classification W-C-596G. These certifications indicate compliance with recognized safety standards for North American electrical systems, facilitating regulatory approvals for panel builds and reducing QA cycles during compliance testing.
Absolutely. EZ1203W is specified for 60 Hz operation within a 120–277 Vac range, which covers most standard industrial control circuits and machine interfaces. Its rugged, modular construction is designed for panel-mounted applications in typical factory environments, offering reliable switching performance with minimal maintenance and straightforward replacement if needed.
Official resources include the EZ Link modular devices brochure from Eaton, which provides datasheets, installation guidance, and wiring diagrams. The brochure link is available in the product downloads section, along with the catalog number EZ1203W and UPC 032664009433, to help you verify compatibility and plan upgrades efficiently.
