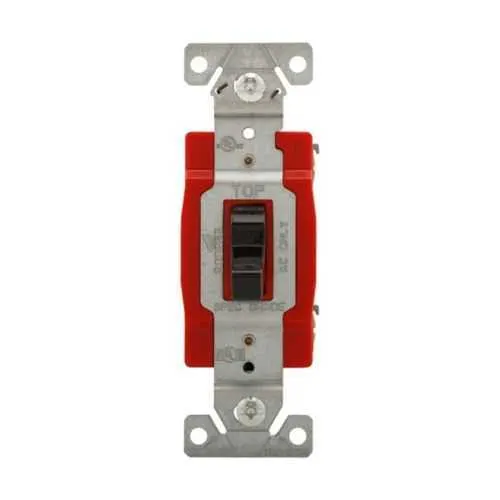

Eaton EZLink toggle switch EZ1221BK - cULus Listed
Part Number: EZ1221BK
Quick Summary
Eaton EZLink toggle switch EZ1221BK provides reliable control for lighting and machine panels. Engineers often contend with wiring complexity, limited panel space, and tight project timelines. This device is cULus Listed, NOM certified, and aligned with Federal Specification W-C-596G to support safety, compatibility, and regulated environments. With a compact footprint and a 20A, 120–277 VAC rating, it accelerates installation, simplifies procurement, and enables scalable, modular integration within EZLink systems. The black finish provides clear visibility in control stations, while the modular design reduces wiring complexity and stock diversity. Together, these features offer measurable business value through reduced downtime, faster changes, and improved regulatory compliance.
Product Information
Extended Description
EZ1221BK Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, single-pole, three-wire, black
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1221BK
UPC
032664009457
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
Black
Feature: 20A, 120-277 VAC, single-pole, three-wire design. Business Impact: Supports common industrial loads with safe, predictable switching, reducing panel-space conflicts and wiring mistakes. Application: Ideal for lighting and equipment control in industrial control panels. The durable rating translates to fewer field failures and lower maintenance costs over the life of the system.Feature: Compact physical footprint (1.91 in L, 1.75 in W, 4.4 in H) and weight of 0.192 lb. Business Impact: Enables higher device density in crowded control panels and easier retrofit projects. Application: Panel upgrades and new installations where space is at a premium.Feature: EZLink modular compatibility. Business Impact: Streamlines wiring topology and simplifies kit assembly for modular devices, reducing installation time and risk of mis-wiring. Application: Modular control schemes in conveyors, fans, and step-by-step automation panels.Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: Improves regulatory compliance, enables easier supplier qualification, and minimizes qualification testing for regulated environments. Application: Aerospace, food and beverage, and general industrial facilities with strict safety standards.Feature: Color and visibility (Black) for intuitive operation. Business Impact: Enhances operator confidence and reduces misoperation in busy control rooms. Application: Panel-mounted switches in machine rooms and production lines for quick identification.
Get a Quick Quote for a Eaton EZ1221BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1221BK?
Enquire Now
FAQs
When integrating the EZ1221BK, ensure the panel cut-out accommodates the 1.91 in length, 1.75 in width, and 4.4 in height footprint. Use proper single-pole wiring with a three-wire configuration and verify compatibility with the EZLink modular devices. Follow standard torque recommendations for the mounting screws and maintain proper insulation clearances to avoid arcing or heat buildup in high-load applications.
The 20A, 120-277 VAC rating enables reliable switching of typical lighting loads and several low to medium horsepower motors in industrial panels. This rating supports standard commercial and industrial circuits, reduces the need for overspecification, and helps maintain safe operating temperatures under normal duty. For high inrush loads, consider matching with appropriate circuit protection and wiring gauge per code.
Yes. The EZ1221BK is cULus Listed, NOM certified, and aligned with Federal Specification W-C-596G, ensuring acceptance in regulated environments and broad compatibility with safety and quality requirements. This combination simplifies procurement, reduces qualification testing, and supports compliance during audits in industries such as manufacturing and facilities management.
EZLink modular devices offer a compact, scalable platform that simplifies wiring topology and module-to-module integration. For panel designers, this reduces wiring density, shortens installation time, and enhances maintainability. The EZ1221BK’s single-pole configuration fits many common control schemes, and its modular approach supports future expansions without reworking existing wiring.
The EZ1221BK delivers lower lifecycle costs through durable, maintenance-friendly operation and reduced downtime thanks to reliable 20A performance and robust certifications. Its modular design minimizes retraining and rework during upgrades, while the compact footprint saves panel space and reduces material waste. Over time, this translates to shorter maintenance windows and predictable budgeting.
