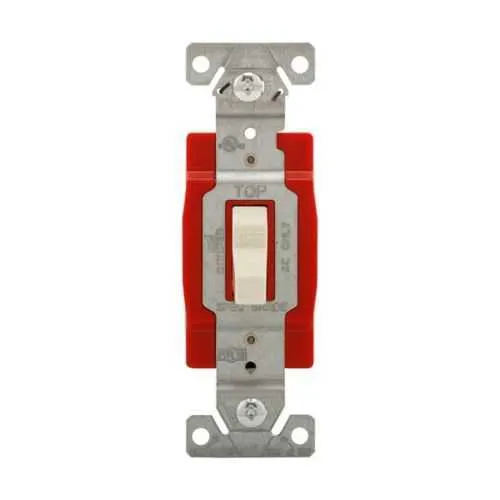

EZ1221LA Eaton Toggle Switch - cULus Listed W-C-596G
Part Number: EZ1221LA
Quick Summary
EZ1221LA Eaton Toggle Switch delivers reliable control for lighting circuits in panel enclosures. In fast-paced projects, engineers need a compact, compliant device that wires quickly and stays dependable over time. The switch carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, providing robust safety and performance in demanding environments. At 20 A and 120-277 Vac, it suits control panels and equipment bays while fitting into tight spaces with a light almond finish. Its modular EZLink compatibility reduces stocking and installation time, delivering lower total cost of ownership for panel designers and maintenance teams.
Product Information
Extended Description
EZ1221LA Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, single-pole, three-wire, light almond
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1221LA
UPC
032664009471
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
Light Almond
The EZ1221LA provides 20A at 120-277 Vac, configured as a single-pole three-wire switch. This electrical rating supports common panel lighting and control loads with a healthy safety margin, reducing nuisance tripping and improving overall system reliability in industrial environments. The compact footprint—1.91 in length, 1.75 in width, and 4.4 in height—minimizes panel real estate usage, enabling more channels per enclosure and faster retrofits in existing cabinets. With a weight of 0.192 lb, installation remains straightforward and reduces handling effort during field servicings. The light almond color helps it blend with standard electrical schemes and user interfaces, supporting intuitive operation in crowded control rooms. Certifications including cULus Listed, NOM, and W-C-596G provide regulatory confidence and risk mitigation for regulated facilities. Compatibility with the EZLink modular devices family streamlines sourcing, stocking, and replacements, which lowers maintenance costs and downtime for plant operations. This device is well-suited for panel builders seeking reliable, scalable solutions that meet industry standards while delivering predictable performance across fluctuating loads and ambient conditions.
Get a Quick Quote for a Eaton EZ1221LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1221LA?
Enquire Now
FAQs
Power must be OFF before installation. Mount the EZ1221LA in a suitable panel opening or backbox, connect the line and load conductors to the appropriate terminals, and complete the three-wire configuration as specified by the wiring diagram. Verify the circuit is within 120-277 Vac and 60 Hz, then test for proper operation after securing the device.
Yes. The EZ1221LA is part of the EZLink modular family, designed for seamless compatibility with other EZLink modules. This enables standardized wiring, simplified stocking, and quicker replacements across modular control panels, reducing downtime and inventory costs.
The switch is rated for 20A at 120-277 Vac with a 60 Hz frequency, configured as a single-pole three-wire device. It is suitable for typical panel lighting and control circuits in industrial environments, delivering reliable performance under load.
The EZ1221LA is cULus Listed, NOM certified, and falls under Federal Specification Classification W-C-596G, ensuring compliance with safety and performance requirements for regulated facilities.
The device measures 1.91 inches in length, 1.75 inches in width, and 4.4 inches in height, with a weight of 0.192 pounds, making it compact for tight panel spaces and easy to handle during installation.
