Eaton EZ1221RD EZLink Modular Toggle Switch - cULus Listed
Part Number: EZ1221RD
Quick Summary
EZ1221RD EZLink modular toggle switch provides reliable control for industrial panels and equipment. Engineers often struggle with limited space, wiring changes, and regulatory hurdles when updating control circuits. This device carries cULus Listed, NOM, and Federal Specification Classification W-C-596G certifications to support safety, reliability, and traceability. Used in machine controls, lighting panels, and automation enclosures, it enables modular, scalable installations and faster maintenance, reducing downtime and lifecycle costs for OEMs and integrators.
Product Information
Extended Description

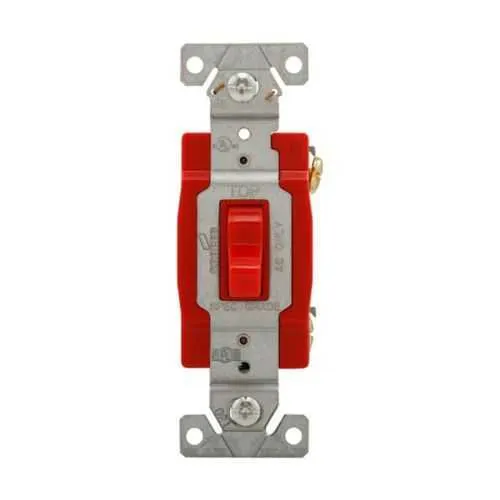

EZ1221RD Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, single-pole, three-wire, red
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1221RD
UPC
032664009488
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Single-pole
Color
Red
Feature: 20 A at 120–277 Vac, 60 Hz. Business impact: This broad rating covers a range of loads from lighting to small motors, reducing part counts and procurement complexity. Application: ideal for control panels and automation enclosures where a compact, reliable toggle switch is needed. Feature: Single-pole, three-wire wiring. Business impact: simplifies wiring schemes, improves fault isolation, and speeds commissioning. Application: machine control circuits and signaling in industrial automation. Feature: Red actuator for visibility. Business impact: enhances operator recognition in dim or crowded panels, reducing misoperation. Application: safety-critical controls and signaling in process lines. Feature: Compact footprint and lightweight design. Business impact: fits into tight panel spaces and reduces enclosure size without compromising performance. Application: compact control panels in automated lines. Feature: EZLink modular compatibility. Business impact: enables rapid maintenance, easy field replacement, and scalable expansions. Application: modular control systems across OEM equipment. Feature: Certifications and compliance. Business impact: supports regulatory compliance, traceability, and end-user confidence. Application: regulated industries and standard industrial automation.
Get a Quick Quote for a Eaton EZ1221RD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1221RD?
Enquire Now
FAQs
The EZ1221RD is a single-pole, three-wire toggle switch rated at 20 A and 120–277 Vac, designed for straightforward panel wiring and easy fault isolation.
Yes. It is cULus Listed and also carries NOM and Federal Specification Classification W-C-596G, ensuring safety compliance and traceability.
Commonly used in control panels, automation enclosures, machine control circuits, and lighting circuits, providing reliable on/off control in harsh industrial environments.
The device measures 1.91 inches in depth, 1.75 inches in width, and 4.4 inches in height and weighs 0.192 lb, with a red actuator for quick visibility in crowded panels.
EZLink design enables rapid field replacements and scalable expansion with other EZLink devices, reducing downtime and simplifying stocking for panel builders and OEMs.
