Eaton EZ1223B EZLink modular toggle switch - cULus Listed
Part Number: EZ1223B
Quick Summary
The Eaton EZLink modular toggle switch provides reliable control of industrial loads in electrical panels. In fast-paced facilities, ambiguous wiring and undersized components drive downtime and costly rework. This device is cULus Listed and NOM approved, with Federal Specification W-C-596G, ensuring regulatory fit for critical installations. The 20A, 120-277 Vac rating paired with a three-pole, four-wire configuration located in brown supports clear, safe wiring schemes. Engineers value predictable performance, standardized wiring, and long-term serviceability—capabilities this switch delivers, reducing commissioning time and enabling scalable upgrades across control panels.
Product Information
Extended Description

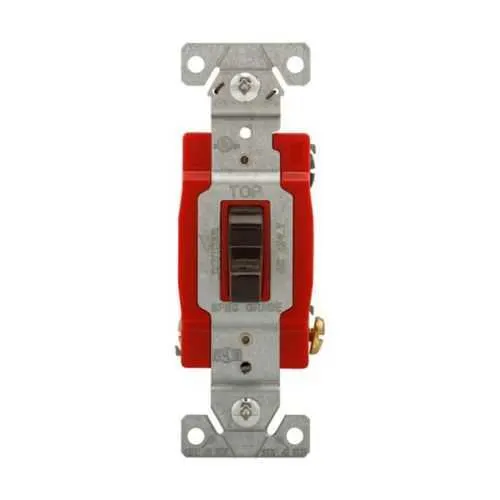

EZ1223B Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, brown
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1223B
UPC
032664009518
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Brown
Feature: 20A amperage rating with a 120-277 Vac voltage range. Business Impact: Supports common industrial loads with sufficient headroom, reducing the need for oversizing components and enabling safer circuit protection. Application: Ideal for machine control panels and HVAC equipment where reliable switching is required. Feature: Three-pole, four-wire configuration. Business Impact: Provides robust control for multi-phase systems while simplifying wiring hierarchies and fault isolation. Application: Three-phase automation panels and process lines where precise pole/wire arrangement matters. Feature: EZLink modular design. Business Impact: Speeds installation, simplifies field upgrades, and minimizes downtime during maintenance or expansion. Application: Retrofitting legacy panels and building scalable modular control architectures. Feature: Brown color and compact dimensions (1.91 in L x 1.75 in W x 4.4 in H). Business Impact: Easier labelling, consistent aesthetics, and fit within standard cutouts to reduce panel interference. Application: New builds and panel upgrades that demand compact, compliant components. Feature: Certifications including cULus Listed, NOM, and W-C-596G. Business Impact: Enhances regulatory confidence and streamlines compliance audits. Application: Environments requiring formal approvals for safety and reliability across industrial automation networks.
