Eaton EZ1223BK Toggle Switch - cULus Listed, 3-Pole
Part Number: EZ1223BK
Quick Summary
EZ1223BK is a modular toggle switch for industrial control in panels and machines. Engineers often struggle with compact, reliable switching in crowded control boxes. This device is cULus listed and NOM certified, with Federal Specification Classification W-C-596G, ensuring robust compliance in harsh environments. It handles 20 A loads at 120–277 Vac and uses a three-pole, four-wire configuration in a compact black body. The Eaton EZLink modular design simplifies wiring, standardizes component footprints, and speeds maintenance, helping manufacturers reduce downtime. For automation projects, this switch delivers dependable performance while keeping installation costs predictable and serviceable over the long term.
Product Information
Extended Description

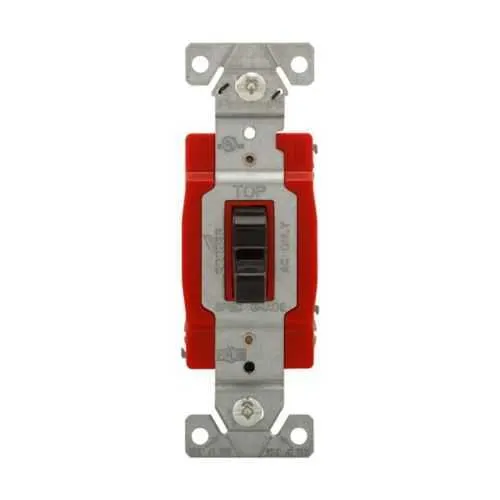

EZ1223BK Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, black
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1223BK
UPC
032664009525
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Black
Feature → Business Impact → Application: The EZ1223BK supports 20 A at 120–277 Vac in a three-pole, four-wire configuration, enabling reliable control of motors, lights, and loads in panel assemblies. This translates to predictable load management, reduced fuse/switch gear issues, and improved machine uptime in manufacturing lines. Application: panel control for conveyors, packaging equipment, and process controls with robust performance in extended duty cycles. Feature → Business Impact → Application: Its cULus Listed, NOM, and W-C-596G classifications provide regulatory compliance and traceability, reducing risk during audits and simplifying qualification for regulated environments. Application: safer, code-compliant installations in food and beverage, pharma, and automotive manufacturing. Feature → Business Impact → Application: Compact footprint (1.91 in L × 1.75 in W × 4.4 in H) and light 0.192 lb weight enable easier rack-and-stack, space optimization, and faster field replacement. Application: retrofit projects and new panel builds where space is at a premium. Feature → Business Impact → Application: EZLink modular design streamlines wiring, accelerates commissioning, and simplifies spare parts management. Application: quick swaps and scalable panel architectures in automation and process lines. Feature → Business Impact → Application: Rated for 60 Hz systems, ensuring compatibility with standard industrial power distribution. Application: reliable operation in typical North American control environments.
