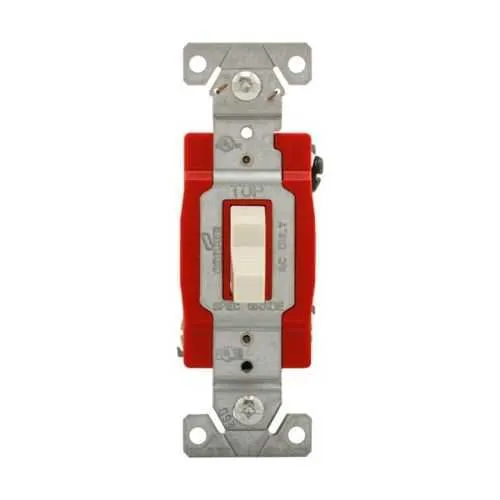

Eaton EZ1223LA EZLink modular toggle switch - cULus Listed
Part Number: EZ1223LA
Quick Summary
The Eaton EZLink modular toggle switch handles 20A control for 120-277 Vac circuits in industrial panels. Engineers often face challenges matching three-pole, four-wire configurations with reliable, code-compliant devices. This model carries cULus Listed, NOM, and Federal Specification Classification W-C-596G, delivering robust regulatory alignment for demanding environments. Its compact form supports flexible panel layouts while delivering dependable operation in harsh industrial settings. By pairing with EZLink modular devices, it simplifies installation, improves wiring consistency, and enables faster maintenance planning, supporting safer, more efficient control system design in modern facilities.
Product Information
Extended Description
EZ1223LA Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, light almond
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1223LA
UPC
032664009549
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Light Almond
Feature: 20A amperage rating and 120-277 Vac range provide broad load compatibility. Business Impact: reduces part variety, improves procurement efficiency, and ensures consistent performance across a wide set of control circuits. Application: feeder panels and motor control centers where a single device handles multiple loads with predictable switching behavior. Feature: Three-pole, four-wire configuration supports versatile wiring schemes. Business Impact: safer, clearer wiring layouts and improved fault isolation. Application: three-phase systems and multi-wire circuits in industrial controls where precise phase separation is critical. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: regulatory compliance, minimized risk, and audit-ready documentation. Application: equipment installed in regulated environments requiring strict certification traceability. Feature: Compact dimensions (1.91 in L, 4.4 in H, 1.75 in W) and light almond finish. Business Impact: easier panel packing, faster installation, and better color-coding integration for operators. Application: space-constrained enclosures and customized control panels. Feature: Compatibility with EZLink modular devices enhances installation ease. Business Impact: streamlined stocking, standardized mounting, and reduced wiring complexity. Application: modular control architectures where quick replacement and scalable design are priorities.
Get a Quick Quote for a Eaton EZ1223LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1223LA?
Enquire Now
FAQs
EZ1223LA is designed to pair with Eaton EZLink modular devices and fits standard control panel enclosures. With its three-pole, four-wire configuration and 1.91 in depth, it aligns with common DIN-rail mounted systems while maintaining accessible wiring terminals. This compatibility reduces integration time and simplifies stocking of modular switch components across multiple panels.
EZ1223LA provides a 20A amperage rating across a 120-277 Vac voltage range at 60 Hz. It is a three-pole, four-wire device suitable for multiple control circuits in industrial applications. These specs support reliable switching of standard loads, with robust insulation and clear phase separation to minimize cycling losses and arcing risks.
This model is cULus Listed and NOM certified, with Federal Specification Classification W-C-596G. These certifications indicate conformity with recognized national and federal standards, ensuring safe operation, elevated reliability in harsh environments, and smoother regulatory approval for equipment installed in controlled facilities and public safety applications.
Yes. With a 20A rating and 120-277 Vac capability, EZ1223LA is well-suited for motor control and lighting circuits in industrial panels. The three-pole, four-wire configuration supports multi-phase and complex circuits, while the modular EZLink ecosystem provides scalable installations and straightforward maintenance for evolving control schemes.
Using EZ1223LA can reduce downtime and maintenance costs by standardizing components and simplifying repairs. Its regulatory certifications minimize compliance delays, while modular design accelerates installation and future expansion. The result is improved panel reliability, fewer spare parts, and faster field service—translating to lower total cost of ownership over the equipment life cycle.
