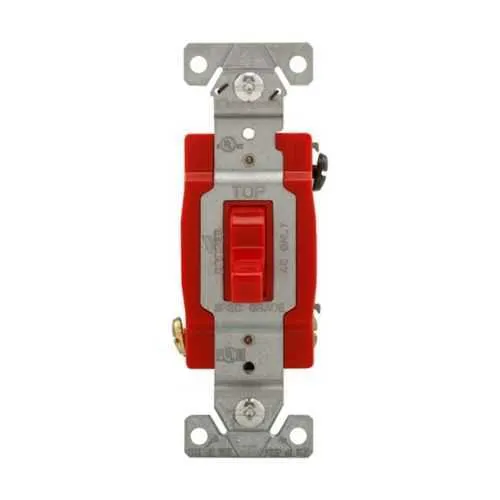

Eaton EZ1223RD EZLink Modular Toggle Switch - cULus
Part Number: EZ1223RD
Quick Summary
Eaton EZ1223RD EZLink modular toggle switch is a compact 20 A control device for three-pole switching in 120-277 Vac electrical panels. Engineers often face space constraints, wiring complexity, and compliance hurdles when expanding modular control stations. This device delivers cULus Listed, NOM, and Federal Specification W-C-596G certifications, helping ensure safety and reliability in critical installations. Its small footprint enables denser panel layouts while maintaining clear, robust control signaling. The EZLink family also supports streamlined installation and maintenance, improving overall project timelines and long-term uptime for machine builders and industrial facilities alike.
Product Information
Extended Description
EZ1223RD Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, red
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1223RD
UPC
032664009556
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Red
Feature: 20 A amperage rating. Business Impact: Supports typical control circuit loads with ample margin, reducing the need for oversized devices and minimizing heat in panels. Application: Industrial automation and machine control panels requiring reliable high-current switching. Feature: 120-277 Vac voltage rating at 60 Hz. Business Impact: Wide compatibility with common industrial power systems, simplifying design and spare-part inventories. Application: Panel boards and control enclosures in mixed-supply environments. Feature: Three-pole, four-wire configuration. Business Impact: Simplifies wiring schemes, reduces miswiring risk, and improves fault isolation. Application: Three-phase or multi-wire control circuits in automation cells. Feature: Compact dimensions (1.91 in L × 1.75 in W × 4.4 in H). Business Impact: Enables denser panel layouts and easier retrofits without sacrificing accessibility. Application: Enclosures with tight spacing and modular device integration. Feature: Red color for clear status indication. Business Impact: Improves operator visibility and quick fault recognition in busy control rooms. Application: Visual signaling in control panels and safety interlocks. Feature: Certifications (cULus Listed, NOM, W-C-596G). Business Impact: Streamlines regulatory approvals, supports compliant equipment deployments, and reduces qualification time. Application: Equipment used in regulated environments and OEM machinery.
Get a Quick Quote for a Eaton EZ1223RD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1223RD?
Enquire Now
FAQs
Begin by verifying the 20 A, 120-277 Vac rating and ensure the supply matches your panel requirement. Mount the EZ1223RD in the designated modular slot, connect the three-pole, four-wire wiring per your control circuit diagram, and confirm red actuator visibility. This approach minimizes wiring errors and speeds up panel assembly in typical automation deployments.
The EZ1223RD is rated for 20 A at 120-277 Vac, operates at 60 Hz, and features a three-pole, four-wire configuration. Its compact red toggle provides clear signaling and supports dense panel layouts. These specifications align with common industrial control requirements and simplify integration with Eaton EZLink modular devices.
Yes. The EZ1223RD carries cULus listing, NOM certification, and Federal Specification Classifications W-C-596G, ensuring compliance for safety, interoperability, and regulated environments. This reduces the time and cost of approvals for OEM panels and machine builds while supporting quality assurance programs.
Absolutely. With dimensions of 1.91 in L × 1.75 in W × 4.4 in H, the EZ1223RD fits tight spaces and enables higher panel density when used with the EZLink modular devices family. Its modular design also simplifies installation and future expansion of control circuits without sacrificing accessibility.
The EZ1223RD leverages Eaton’s proven EZLink modular design, delivering consistent performance across devices, reduced wiring complexity, and regulatory compliance. This translates to lower maintenance costs, fewer field failures, and faster upgrades, delivering a favorable return on investment for OEMs and maintenance teams.
