Eaton EZ1223V EZLink modular toggle switch - cULus Listed
Part Number: EZ1223V
Quick Summary
Eaton EZ1223V EZLink modular toggle switch provides reliable control for industrial loads in panel wiring and automation. Engineers often struggle with finding a compact, standards-compliant switch that fits dense panels without sacrificing performance. This device carries cULus Listed, NOM, and Federal Specification W-C-596G certifications, helping ensure safety and procurement requirements are met. Designed for quick installation with EZLink modular devices and supporting 120-277 VAC at 60 Hz, it delivers reliable operation across diverse environments. For OEMs and maintenance teams, the combination of a compact footprint, robust certifications, and straightforward integration translates to lower total cost of ownership and fewer field failures.
Product Information
Extended Description

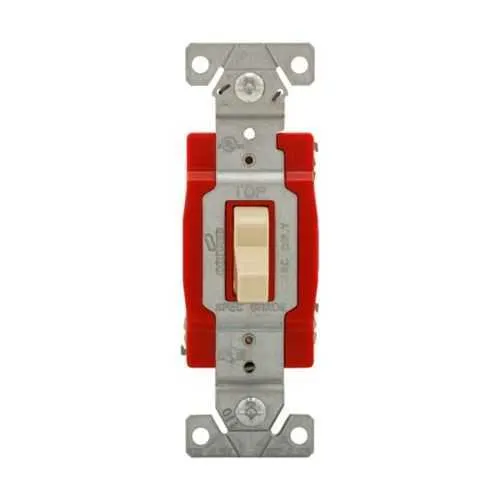

EZ1223V Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, ivory
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1223V
UPC
032664009563
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
Ivory
Feature → Business Impact → Application: The EZ1223V is rated for 20A at 120-277 VAC, 60 Hz, enabling reliable control of a wide range of industrial loads from lighting to machine control circuits. This translates to improved switching performance, reduced nuisance trips, and safer, more predictable operation in factory automation panels. Application: panel-mounted control points and line-side switches in manufacturing lines. Feature → Business Impact → Application: Three-pole, four-wire configuration provides complete circuit control with neutral pathways, supporting multi-wire control schemes and safer electrical distribution. This reduces wiring complexity and improves fault isolation in control cabinets. Application: complex process panels and HVAC control loops. Feature → Business Impact → Application: Compact dimensions (1.91 in depth, 4.4 in height, 1.75 in width) preserve panel real estate, enabling denser wiring and easier serviceability. Application: tight-control environments and retrofit projects where space is at a premium. Feature → Business Impact → Application: Ivory color and modular EZLink compatibility streamline visual integration and supplier interoperability. This supports standardization across equipment fleets and faster procurement. Application: OEM assemblies and serviceable field installations. Feature → Business Impact → Application: Certifications including cULus Listed, NOM, and W-C-596G ensure regulatory compliance and safer operation, reducing audit risk and accelerating purchasing approvals. Application: regulated industrial environments and cross-border projects requiring recognized safety standards.
Get a Quick Quote for a Eaton EZ1223V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ1223V?
Enquire Now
FAQs
EZ1223V is designed for panel mounting in 120-277 VAC systems and uses a three-pole, four-wire configuration. When wiring, verify correct line, load, and neutral connections per the control schematic, ensure clear labeling for future maintenance, and confirm the device fits within the panel’s available depth (1.91 in) while maintaining adequate clearance for heat dissipation.
The switch supports a broad voltage range up to 277 VAC with a 20 A rating, enabling reliable control of diverse loads from lighting to motors in three-pole configurations. This makes it versatile for varying control architectures, reduces the need for multiple different switches, and helps standardize panel designs across equipment lines.
Yes. EZ1223V is part of Eaton’s EZLink modular devices family, designed for straightforward interconnection with compatible modules. This standardization simplifies mounting, wiring harnessing, and downstream maintenance, ensuring a cohesive, scalable approach to panel automation and reducing integration time in large installations.
EZ1223V is cULus Listed and NOM certified with Federal Specification W-C-596G classification. These certifications demonstrate compliance with safety and performance standards, ease cross-border procurement, and support regulator-aligned installations in diverse industrial environments, giving buyers confidence in product legality and reliability.
By standardizing on a single, widely certified modular toggle switch, maintenance teams benefit from fewer spare parts, faster replacements, and consistent performance across panels. The 20A rating and broad voltage range reduce the risk of overloads, while EZLink compatibility shortens installation times, lowering downtime and improving overall line efficiency.
