Eaton EZ1223W EZLink modular toggle switch - cULus/NOM
Part Number: EZ1223W
Quick Summary
The Eaton EZLink modular toggle switch enables reliable on/off control in industrial control panels and equipment enclosures. Engineers often wrestle with wiring complexity and crowded enclosures, and the modular design of EZ1223W helps streamline harness routing and reduce installation time. Certifications include cULus Listed, NOM, and Federal Specification W-C-596G, delivering safety and government-ready compliance. With a 20 A rating at 120–277 Vac and a compact 1.91 in depth, this device supports efficient maintenance and scalable control strategies while reducing spare parts diversity. In practice, it adds predictable performance to machine control loops, improves change-out speed, and simplifies future upgrades in evolving automation architectures.
Product Information
Extended Description

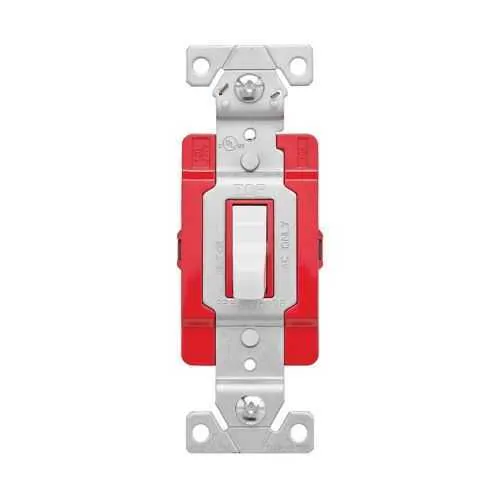

EZ1223W Eaton: Eaton EZLink modular toggle switch, 20 A, 120-277 Vac, 60 Hz, three-pole, four-wire, white
Product Name
Eaton EZLink modular toggle switch
Catalog Number
EZ1223W
UPC
032664009570
Product Length/Depth
1.91 in
Product Height
4.4 in
Product Width
1.75 in
Product Weight
0.192 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
20A
Voltage rating
120-277 Vac
Number Of Poles
Three-pole
Color
White
Feature: 20A amperage rating and 120–277 Vac operation. Business Impact: Supports common industrial loads with a wide voltage range, enabling consistent performance across machinery without adapter hardware. Application: Control panels and process equipment where reliable switching is required. Feature: Three-pole, four-wire configuration. Business Impact: Enables robust, properly grounded multi-wire circuits with reduced wiring errors. Application: Three-phase and four-wire control loops in automation systems. Feature: Compact dimensions (1.91 in depth, 1.75 in width, 4.4 in height) and white visibility. Business Impact: Maximizes enclosure space and improves panel readability during maintenance. Application: Tight panel layouts and equipment racks. Feature: Certifications (cULus Listed, NOM, W-C-596G). Business Impact: Ensures safety compliance and government procurement eligibility across North America. Application: Regulated industries and cross-border sourcing. Feature: Modular design as a scalable switching solution. Business Impact: Reduces spare parts inventory and accelerates upgrades across multiple circuits. Application: Growth-ready control systems and maintenance programs.
