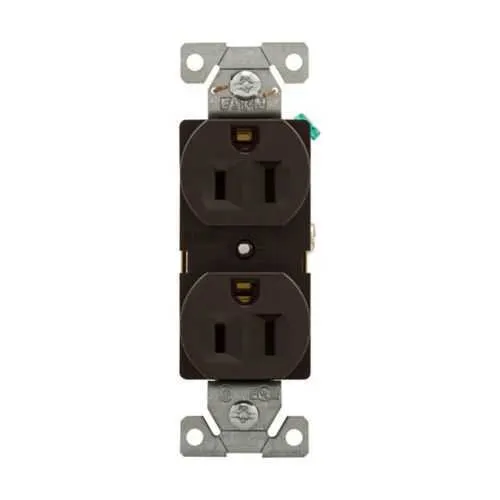

Eaton EZ5262B EZLink duplex receptacle - cULus Listed
Part Number: EZ5262B
Quick Summary
The Eaton EZLink modular duplex receptacle is a compact 15A, 125V outlet solution for controlled residential and industrial wiring in panel assemblies and automation cabinets. For engineers and electricians facing time-consuming wiring and crowded panels, this modular unit streamlines field connections, reduces install time, and frees valuable enclosure space. With cULus Listed, NOM, and Federal Specification W-C-596G, it meets essential safety and regulatory requirements while staying compatible with standard NEMA configurations. This receptacle pairs with EZLink modular devices for scalable, maintainable installations, and its brown color helps blend into equipment interiors while supporting durable, high-visibility labeling. In short, it accelerates commissioning, reduces panel heat and maintenance costs, and supports reliable operation in automation and control environments.
Product Information
Extended Description
EZ5262B Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262B
UPC
032664009600
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature → Business Impact → Application: The EZ5262B delivers a 15A, 125Vac NEMA 5-15R three-wire connection, enabling standardized, safe power delivery in control panels and equipment enclosures; this supports predictable performance and reduces wiring errors during panel builds. Feature → Business Impact → Application: Its compact footprint (1.09 in depth x 1.46 in width x 4.2 in height) allows dense panel layouts, increasing usable space and reducing enclosure size in automation cabinets. Feature → Business Impact → Application: cULus Listed, NOM, and W-C-596G compliance provide regulatory assurance for facilities governed by NEC, UL, and federal standards, minimizing audit risk and accelerating procurement for industrial projects. Feature → Business Impact → Application: Compatibility with EZLink modular devices enables scalable wiring strategies and easy future upgrades, improving lifecycle planning in building automation and process control environments. Feature → Business Impact → Application: The three-wire 125V design and NEMA 5-15R configuration simplify field termination, lowering installation time and reducing rework during commissioning. Feature → Business Impact → Application: Robust construction and modular design improve reliability in industrial environments, supporting long-term operation with reduced maintenance and spare-parts requirements.
Get a Quick Quote for a Eaton EZ5262B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262B?
Enquire Now
FAQs
EZ5262B uses a three-wire NEMA 5-15R configuration rated for 15A at 125Vac. Install in standard electrical boxes and align with EZLink modular devices to ensure proper mating with other modular components. Use correct termination practices to prevent loose connections, and respect panel space and labeling requirements for a tidy, reliable installation in control panels.
EZ5262B is rated 15A and 125Vac with 60 Hz operation, featuring a NEMA 5-15R three-wire connection in a brown housing. These specs ensure compatibility with most North American equipment and automation wiring. The 60 Hz rating supports consistent power delivery in typical industrial environments, while the compact form factor helps manage heat and maintain enclosure integrity.
Yes. The unit’s 1.09 in depth, 1.46 in width, and 4.2 in height enable dense panel layouts, making it ideal for space-constrained control panels and equipment enclosures. Its NEMA 5-15R, three-wire configuration supports reliable earth-grounded power delivery, and compatibility with EZLink modular devices facilitates scalable wiring for future expansions in automation and process control.
EZ5262B is cULus Listed, NOM certified, and carries Federal Specification Classification W-C-596G. These certifications validate safety, interchangeability, and regulatory compliance for North American markets, simplifying audits, reducing procurement risk, and ensuring compatibility with building, industrial, and automation systems that rely on standard electrical components.
The modular design lowers installation time and labor costs by simplifying wiring and terminations. Standardized components reduce spare-parts inventory and rework, while compatibility with EZLink devices supports scalable wiring and easier upgrades. Over the project life, this translates to lower maintenance costs and a faster time-to-value for automation and control initiatives.
