Eaton EZ5262CDB Modular Receptacle - 15A 125V, cULus
Part Number: EZ5262CDB
Quick Summary
The Eaton EZLink modular duplex receptacle provides reliable, plug-and-use power for compact control panels and equipment enclosures. This 15A, 125V device fits into EZLink modular systems, enabling fast, organized wiring in space-constrained installations. In dense electrical layouts, mis-wiring or limited access can slow builds and increase maintenance costs. The unit carries cULus listing with NOM and Federal Specification Classification W-C-596G, supporting safe, code-compliant operation across many facilities. For procurement teams, its modular approach reduces replacement time and simplifies future upgrades, while engineers benefit from a clear, durable design and predictable performance in mixed-use environments. Use cases span automation panels, control cabinets, and equipment housings.
Product Information
Extended Description

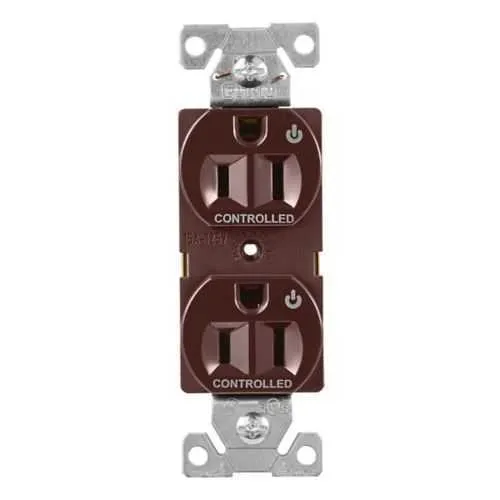

EZ5262CDB Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CDB
UPC
032664009624
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
15A, 125V, 3-wire NEMA 5-15R design drives straightforward integration in most industrial panels. This standard interface reduces mis-wiring risks and supports NEC compliance, cutting commissioning time. It’s ideal for automation panels, robotics cells, and equipment housings where reliable access to power is essential. Dual controlled operation provides flexible control pathways for isolation or testing without swapping hardware. The business impact is improved safety and easier troubleshooting, minimizing downtime during maintenance. This is particularly valuable in test benches, machine tools, and control cabinets where independent circuit control is part of the workflow. The compact footprint supports dense panel layouts without sacrificing accessibility. With a 1.09 in depth and 1.46 in width, it fits into crowded enclosures while leaving space for wiring and other devices. The lightweight form factor also simplifies handling during installation. EZLink modular design enables fast installation and straightforward future upgrades. The receptacle is compatible with standard EZLink modules, ensuring interchangeability and reducing spare-part inventories. This translates to lower total cost of ownership in facilities with frequent panel refresh cycles. Certifications including cULus, NOM, and Federal Specification W-C-596G provide regulatory assurance across North American facilities. These certifications support risk mitigation, audit readiness, and pass-through approvals for panel builds in regulated industries. Brown color aids color-coding schemes within electrical cabinets, supporting organization and safety practices.
Get a Quick Quote for a Eaton EZ5262CDB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CDB?
Enquire Now
FAQs
Yes, EZ5262CDB is designed for EZ-Link modular systems and uses the standard NEMA 5-15R configuration. Its 15A, 125V rating and three-wire setup align with typical control panel wiring practices, facilitating straightforward retrofit or new builds. Ensure proper circuit protection and adherence to NEC guidelines during installation, and you’ll benefit from seamless interoperability with other EZ-Link modules.
The receptacle provides 15A at 125V in a 3-wire configuration and uses a NEMA 5-15R outlet. It carries cULus listing, NOM, and Federal Specification W-C-596G, supporting North American safety and regulatory compliance. Catalog number EZ5262CDB, brown finish, and dual-controlled operation further define its electrical and installation parameters for panel projects.
Yes. Its dual-controlled design, standard NEMA 5-15R configuration, and robust listings make it well-suited for automation panels, control cabinets, and equipment housings. The compact footprint helps maximize usable panel space, while the modular EZ-Link ecosystem enables scalable expansions and straightforward replacements in busy production environments.
EZ5262CDB carries cULus, NOM, and Federal Specification W-C-596G, aligning with North American electrical safety and quality standards. This simplifies regulatory approvals, reduces audit-related questions, and supports reliable field deployment in regulated industries, ensuring ongoing compliance for critical machinery and panels.
The modular EZ-Link approach reduces installation labor, speeds up panel upgrades, and minimizes downtime during replacements. Standardized components like EZ5262CDB lower spare-parts inventories and simplify maintenance. Over a project lifecycle, these factors translate to faster deployments, lower total cost of ownership, and improved overall equipment effectiveness.
