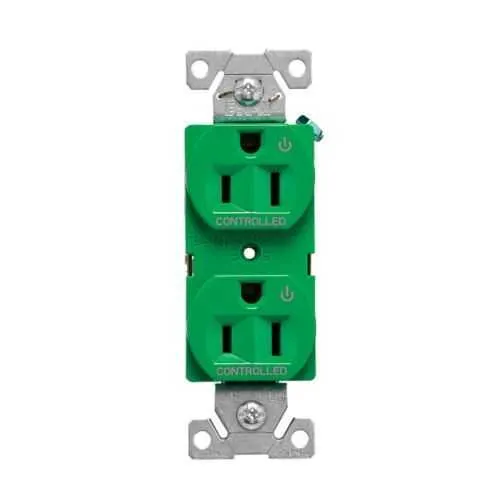

Eaton EZ5262CDGN EZLink Receptacle - cULus Listed
Part Number: EZ5262CDGN
Quick Summary
The Eaton EZLink modular duplex receptacle is a reliable 15 A, 125 Vac outlet designed for control panels and commercial enclosures. Engineers often grapple with limited space, wiring complexity, and slow field assembly; this compact, dual-controlled unit reduces footprint and simplifies wiring. It carries cULus Listed status with NOM and Federal Specification W-C-596G, supporting North American code compliance. Green color coding and a three-wire configuration enhance safety and compatibility, while the modular EZLink design accelerates installation and future expansion. Together, these features deliver lower installation costs and higher panel reliability across industrial environments.
Product Information
Extended Description
EZ5262CDGN Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-15R, three-wire, green
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CDGN
UPC
032664009648
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Green
Amperage and voltage specification are matched to common branch circuits—15A at 125V—offering immediate compatibility with standard NEMA 5-15R outlets. This reduces the need for adapters or rewiring, streamlining procurement and installation. In practice, electricians can deploy EZ5262CDGN in control panels and wall enclosures with predictable performance. Dual-controlled operation enables independent or synchronized switching of the outlet, enhancing safety and process control. The three-wire configuration supports grounded connections, improving fault tolerance and compliance with electrical codes, which is particularly beneficial in automation and process industries where reliability matters. Compact housing dimensions—1.09 in depth, 4.2 in height, and 1.46 in width—plus 0.2 lb weight simplify mounting and cable routing in crowded panels or modular backplanes. Green color coding aids safety labeling, while cULus Listed with NOM and W-C-596G provides regulatory alignment for North American installations. The EZLink modular design supports future expansion and quick replacement, reducing downtime and maintenance costs for facilities with ongoing modernization programs. For detailed installation guidance and compatibility, Eaton provides the EZ Link modular devices brochure to streamline procurement and engineering workflows.
Get a Quick Quote for a Eaton EZ5262CDGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CDGN?
Enquire Now
FAQs
The EZ5262CDGN is rated for 15A at 125V, making it compatible with standard branch circuits and NEMA 5-15R outlets. It supports a three-wire configuration for grounded operation and a dual-controlled setup, which enhances control options in panels and enclosures. This rating ensures reliable performance in typical commercial and light industrial applications.
Yes, EZ5262CDGN is designed as a modular duplex receptacle compatible with standard NEMA 5-15R devices. It uses a three-wire wiring scheme (hot, neutral, ground) and supports dual controlled operation, allowing either local or remote control of the outlet. This simplifies integration with existing control systems and maintains code-compliant grounding practices.
The EZ5262CDGN carries cULus Listed status with NOM and Federal Specification Classification W-C-596G. These certifications indicate compliance with North American safety and performance standards, improving regulatory acceptance, warranty protection, and reliability in regulated industries. For projects in healthcare, manufacturing, and process industries, these certifications support risk management and procurement conformity.
The receptacle occupies a compact footprint with dimensions of 1.09 in depth, 4.2 in height, and 1.46 in width, and weighs about 0.2 lb. This slim profile eases mounting in tight panel cavities and backplanes, reduces cutout complexity, and supports modular device architectures. The small size also helps minimize wiring congestion and improves overall panel density.
Installation benefits include a straightforward three-wire connection, dual control capability, and a compact form factor that speeds panel assembly and future expansion. The green color coding aids safety labeling, while cULus NOM/W-C-596G compliance reduces regulatory risk. These features collectively lower field service time, decrease mis-wiring incidents, and improve uptime in automation-focused facilities.
