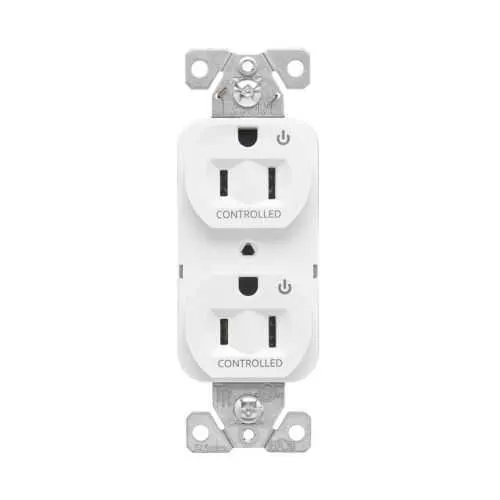

Eaton EZ5262CDRD EZLink duplex receptacle - cULus Listed
Part Number: EZ5262CDRD
Quick Summary
The EZ5262CDRD EZLink modular duplex receptacle provides reliable, controllable power delivery for commercial electrical enclosures and equipment racks. Maintenance teams often face wiring confusion and mismatched receptacles during upgrades, causing project delays and field errors. It carries cULus Listed, NOM, and Federal Specification W-C-596G markings, supporting regulatory compliance for North American installations. Engineered for 15 A at 125 VAC with three-wire NEMA 5-15R configurations, it integrates with standard modular devices and simplifies field wiring. As part of Eaton’s modular receptacle family, it reduces spare parts variety, accelerates assembly timelines, and improves reliability in data centers, manufacturing floors, and controlled environments.
Product Information
Extended Description
EZ5262CDRD Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-15R, three-wire, red
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CDRD
UPC
032664009679
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Red
Feature: EZLink modular design enables rapid compatibility with Eaton's device family. Benefit: reduces spare parts and minimizes downtime during panel upgrades. Application: control enclosures, equipment racks, and retrofit projects. Feature: Dual controlled operation provides selective outlet control for critical circuits. Benefit: enables load management and safety interlocks, reducing unintended power to peripherals. Application: instrumentation panels, test bays, and remote-controlled process lines. Feature: Standard NEMA 5-15R configuration rated at 15 A, 125 VAC, 60 Hz. Benefit: ensures compatibility with common devices and simplifies wiring in standard electrical rooms. Application: control panels and lab benches. Feature: Red color coding supports clear circuit identification and labeling in complex panels. Benefit: improves troubleshooting and safety. Application: panel labeling in industrial environments. Feature: Certifications include cULus Listed, NOM, and Federal Specification W-C-596G. Benefit: reduces project risk and speeds inspections. Application: data centers, manufacturing floors, and service cabinets where compliance matters.
Get a Quick Quote for a Eaton EZ5262CDRD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CDRD?
Enquire Now
FAQs
EZ5262CDRD is designed to integrate with Eaton's EZLink modular family, providing a uniform footprint and lead-in fit with other EZLink modules. It uses a 15A, 125 VAC, three-wire NEMA 5-15R configuration and matches standard DIN-rail or panel-mounting approaches common in industrial control panels. This compatibility reduces engineering time and stocking complexity.
Dual controlled means the receptacle can be managed by separate control inputs, allowing deliberate sequencing, safety interlocks, and remote or local switching. This improves power management for sensors and actuators, reduces accidental energization, and simplifies test procedures in instrument rooms and process lines.
Yes. The EZ5262CDRD carries cULus listing with NOM and Federal Specification W-C-596G markings, meeting North American electrical and safety regulations. These certifications help streamline inspections, ensure consistent product performance, and support installation in commercial facilities where regulatory compliance is critical.
Plan for a compact footprint (1.46 in wide, 1.09 in depth, 4.2 in height) and a red 15A 125V NEMA 5-15R outlet. The unit weighs about 0.2 lb, which eases handling and mounting. Verify compatibility with existing EZLink frames and ensure proper wiring to comply with three-wire grounding.
The modular EZLink design reduces spare parts variety and simplifies upgrades, lowering inventory carrying costs and downtime. The three-wire NEMA 5-15R configuration and regulatory certifications also minimize rework during audits, while the compact form factor supports denser panel layouts, contributing to long-term maintenance and operating cost reductions.
