Eaton EZ5262CDV Modular Duplex Receptacle - cULus Listed
Part Number: EZ5262CDV
Quick Summary
The Eaton EZLink modular duplex receptacle is a reliable power distribution point for electrical panels and equipment. Engineers often struggle with incompatible outlets and crowded enclosures that hamper serviceability. This unit is cULus Listed, NOM, and meets Federal Specification W-C-596G, supporting compliance across facilities. With a 15A, 125Vac rating and dual controlled NEMA 5-15R configuration, it delivers dependable operation in control panels and workstation outlets. Its compact 1.09 in depth, ivory finish, and EZLink compatibility simplify sourcing, accelerate installation, and improve enclosure density for tight spaces.
Product Information
Extended Description

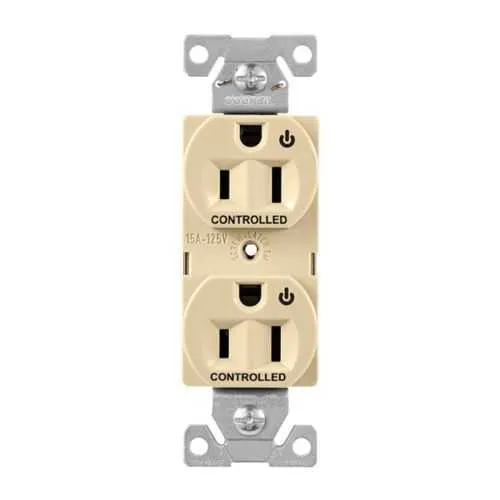

EZ5262CDV Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-15R, three-wire, ivory
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CDV
UPC
032664010354
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Ivory
Feature: Electrical rating and NEMA 5-15R configuration provide standard load compatibility. Business Impact: Reduces rework and ensures reliable outlet performance on common branch circuits. Application: Ideal for control panels, machine enclosures, and workstation outlets that require a familiar, ready-to-wire receptacle. Feature: Dual controlled operation enables switching or independent control of the outlet circuit. Business Impact: Improves energy management and operator safety by allowing selective energization in automation panels. Application: Supports programmable control schemes in industrial equipment and process lines. Feature: Three-wire configuration at 125 Vac supports grounded circuits for enhanced safety and compatibility with modern equipment. Business Impact: Enhances protection against shock and equipment damage, reducing maintenance incidents. Application: Suitable for new installations and retrofit projects in manufacturing environments. Feature: Certifications including cULus Listed, NOM, and Federal Specification W-C-596G ensure regulatory alignment. Business Impact: Simplifies compliance audits and aligns with multi-region procurement standards. Application: Widely applicable across facilities subject to UL, NOM, and federal specs. Feature: Compact dimensions (1.09 in depth, 4.2 in height, 1.46 in width) and a lightweight 0.2 lb weight enable dense enclosure layouts. Business Impact: Maximizes panel density and reduces overall enclosure footprint, cutting capital costs. Application: Useful in space-constrained control cabinets and compact electrical junctions.
Get a Quick Quote for a Eaton EZ5262CDV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CDV?
Enquire Now
FAQs
EZ5262CDV is designed as a modular duplex receptacle with a NEMA 5-15R configuration and dual controlled capability, compatible with standard 15A, 125V circuits. Its compact dimensions (1.09 in depth; 4.2 in height; 1.46 in width) fit tightly in typical control panels and enclosures, and it aligns with EZLink modular device families for straightforward system expansion.
The receptacle delivers 15A at 125V with three wires in a NEMA 5-15R configuration, supporting common office and industrial loads. Dual controlled capability enables independent or coordinated switching. These specs support reliable operation in panel and equipment outlets while maintaining standard wiring practices and compatibility with widely used cords and accessories.
Yes. The unit is cULus Listed, NOM certified, and meets Federal Specification W-C-596G, ensuring regulatory compliance across facilities. Its dual controlled feature supports flexible control schemes, and its compact form factor helps maximize enclosure space in busy automation panels and machine rooms.
EZ5262CDV carries cULus Listing, NOM certification, and Federal Specification W-C-596G. These credentials indicate compliance with safe electrical practices and regional regulatory requirements, facilitating procurement in multi-site operations and reducing qualification time during audits and inspections.
The compact footprint and standard NEMA 5-15R configuration streamline installation and supply chain, reducing labor time and stocking complexity. Dual controlled capability supports improved energy management and safer operation, contributing to lower downtime and potential energy savings across service intervals and preventive maintenance programs.
