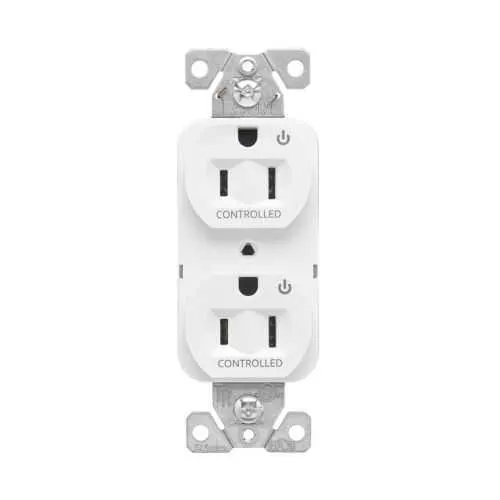

Eaton EZ5262CDW EZLink duplex receptacle - cULus
Part Number: EZ5262CDW
Quick Summary
The Eaton EZ5262CDW EZLink duplex receptacle is a modular wiring device designed for fast, reliable branch circuits in commercial and industrial enclosures. Installers struggle with bulky, non-modular receptacles that slow panel wiring and jeopardize code compliance; EZLink offers a compact, three-wire NEMA 5-15R solution that fits tight spaces. Certifications such as cULus Listed, NOM, and Federal Specification W-C-596G underscore safety and performance in regulated environments. This receptacle delivers straightforward installation, dependable operation, and long-term serviceability, reducing field labor and downtime. By pairing modular design with industry-standard specs, it supports efficient procurement and consistent electrical component sourcing—two critical business benefits for engineering teams and procurement professionals alike.
Product Information
Extended Description
EZ5262CDW Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, dual controlled, NEMA 5-15R, three-wire, white
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CDW
UPC
032664010361
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
White
Feature: 15A, 125V, dual controlled NEMA 5-15R provides independent circuit management and reliable power delivery for everyday enclosures. Business Impact: enables precise control of connected equipment while reducing wiring complexity and risk of mis-wiring. Application: ideal for control panels and equipment racks in manufacturing lines and data centers. Feature: Modular EZLink design with a compact footprint (1.09 in depth, 1.46 in width, 4.2 in height) saves panel space and speeds reconfigurations. Business Impact: improves installation efficiency and minimizes downtime during upgrades. Application: dense panel assemblies and retrofit projects. Feature: 0.2 lb weight and simple wiring create easier handling and faster field deployment. Business Impact: reduces labor time and shipping costs per unit. Application: field installations in cramped enclosures or retrofit jobs. Feature: Regulatory-ready with cULus Listed, NOM, and Federal Specification W-C-596G. Business Impact: lowers compliance risk and extends service life through robust certification. Application: regulated environments like commercial facilities and industrial controls. Feature: White color and standard NEMA 5-15R configuration ensure broad compatibility and consistent aesthetics in panels. Business Impact: streamlines procurement and inventory management across multiple sites. Application: new builds and refurbishments requiring uniform electrical components.
Get a Quick Quote for a Eaton EZ5262CDW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CDW?
Enquire Now
FAQs
Power down the system, select a suitable enclosure, and mount the EZ5262CDW in a single-gang or deeper box as appropriate. Land three wires per NEMA 5-15R configuration, secure with the provided mounting screws, and verify dual controlled operation by testing each circuit independently. Re-energize only after confirming correct polarity and function.
The receptacle is rated at 15A and 125V with a 60 Hz frequency, utilizing a 3-wire NEMA 5-15R configuration. It is designed for standard general-purpose loads in commercial and industrial environments, ensuring reliable power delivery while maintaining proper grounding and insulation.
EZ5262CDW is cULus Listed, NOM certified, and meets Federal Specification W-C-596G. These certifications support safety compliance and reliability in regulated industrial and commercial settings, simplifying procurement and site audits.
Product length/depth is 1.09 inches, height is 4.2 inches, and width is 1.46 inches. The unit weighs 0.2 pounds, making it compact for crowded panels while remaining sturdy for daily use.
The EZ Link modular devices brochure is available at Eaton’s official site: EZ Link modular devices brochure (PDF). This resource covers installation guidance, compatibility notes, and product benefits for engineers and procurement teams.
