Eaton EZ5262CHB Modular Duplex Receptacle - cULus Listed
Part Number: EZ5262CHB
Quick Summary
The Eaton EZ5262CHB modular duplex receptacle delivers reliable 15A, 125V outlets for facility wiring and equipment. End-users and installers grapple with mismatched outlets and outdated hardware causing downtime and inefficiency. This model is cULus Listed with NOM and Federal Specification Classification W-C-596G, delivering robust compliance across challenging industrial environments. As a NEMA 5-15R, 125 Vac solution with modular design, it simplifies installation, reduces inventory complexity, and eases maintenance across projects. Engineers benefit from standardized geometry, quick-back wire access, and compatibility with Eaton EZLink modular devices for fast channeling of circuits. That translates to reduced installation time, lower training cost, and improved reliability across your electrical infrastructure.
Product Information
Extended Description

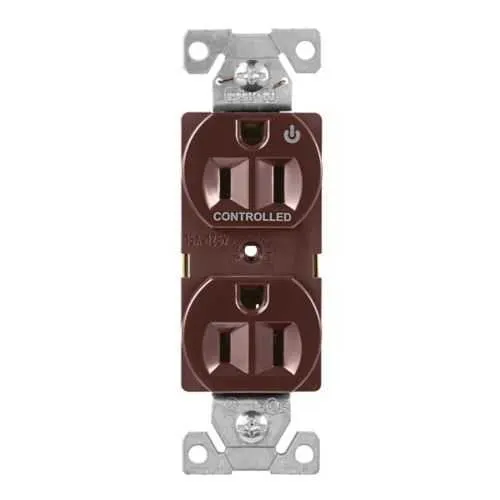

EZ5262CHB Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, half controlled, NEMA 5-15R, three-wire, brown
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CHB
UPC
032664010378
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Brown
Feature: half-controlled NEMA 5-15R duplex receptacle with 15A, 125V rating. Business impact: enables selective outlet control and consistent power delivery, reducing energy waste and wiring confusion. Application: workstations, control panels, and general-purpose outlets in manufacturing and facilities. Feature: cULus Listed, NOM, and Federal Specification W-C-596G compliance. Business impact: minimizes commissioning delays and inspection findings, supporting safer, regulator-ready installations. Application: commercial buildings, data centers, and industrial plants requiring formal conformity. Feature: EZLink modular design. Business impact: simplifies field replacements, accelerates upgrades, and improves spare-part inventory management. Application: modular-device ecosystems and projects with scalable power layouts. Feature: compact footprint (depth 1.09 in, height 4.2 in, width 1.46 in) and light weight (0.2 lb). Business impact: fits tight panel spaces and reduces enclosure crowding, enabling denser power distribution. Application: control panels, electrical boxes, and space-constrained installations. Feature: three-wire configuration and brown color coding. Business impact: ensures proper grounding paths and easy circuit identification, improving safety and maintenance. Application: standard branch circuits within manufacturing lines and facility outlets.
Get a Quick Quote for a Eaton EZ5262CHB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CHB?
Enquire Now
FAQs
EZ5262CHB is designed to integrate with Eaton EZLink modular devices, offering a seamless upgrade path for facilities upgrading from legacy receptacles. The half‑controlled 15A, 125V NEMA 5-15R configuration supports panel mounting in standard electrical boxes and aligns with typical wiring schemes used in industrial and commercial spaces, reducing integration risk and commissioning time.
This receptacle delivers 15A at 125V with a three-wire configuration, meeting general purpose electrical codes for commercial and industrial outlets. Its cULus Listing, NOM compliance, and Federal Spec W-C-596G support regulatory acceptance, while its compact footprint minimizes enclosure impact and supports reliable, consistent power delivery across multiple circuits.
Yes. The unit carries cULus Listed and NOM certifications and complies with Federal Specification W-C-596G, signaling suitability for regulated industrial and commercial environments. Its modular design also enables controlled deployment and straightforward maintenance, helping facilities maintain uptime in demanding conditions.
The EZLink modular design reduces wire routing complexity and speeds field replacements, supporting faster commissioning and simpler inventory management. This translates to fewer on-site labor hours, lower training requirements for maintenance staff, and improved project timelines in new builds or retrofit programs.
By combining standardized electrical characteristics with easy-to-replace modular components, EZ5262CHB minimizes downtime during upgrades and routine servicing. The reduced enclosure footprint and compatibility with modular devices help lower spare parts inventory costs, while regulatory compliance reduces risk and rework across facilities.
