Eaton EZ5262CHGN EZLink modular duplex receptacle - cULus
Part Number: EZ5262CHGN
Quick Summary
EZ5262CHGN is a modular duplex receptacle designed for reliable 15A, 125V outlets in commercial and industrial electrical distributions. The 3-wire configuration simplifies grounding and conductor routing, reducing wiring errors during commissioning and enabling consistent performance across various configurations. Designed for seamless integration within the Eaton EZLink modular ecosystem, it supports predictable field performance, scalable configurations, and straightforward stocking for multi-site installations.
Product Information
Extended Description

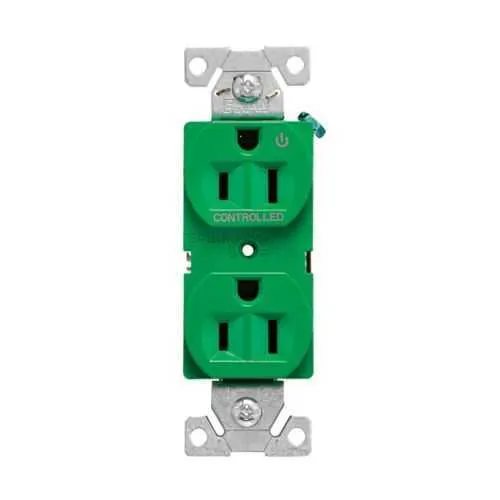

EZ5262CHGN Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, half controlled, NEMA 5-15R, three-wire, green
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CHGN
UPC
032664010392
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Green
EZLink modular design enables rapid field modifications without replacing devices, dramatically cutting rework time during panel changes and line expansions. The modular approach improves compatibility with standard electrical boxes and existing wiring devices, minimizing mismatches and inventory complexity. In busy facilities, this translates to faster line upgrades, shorter downtime, and smoother commissioning workflows across multiple shifts. The receptacle is cULus Listed and NOM certified, with Federal Specification W-C-596G, ensuring compliance across North American installations. Its compact footprint—1.46 in wide, 4.2 in high, 1.09 in deep—and light 0.2 lb weight enable dense panel layouts and easier cable routing in metal enclosures. Green coloration aids quick visual identification during commissioning, inspections, and routine maintenance. With 60 Hz operation at 125 VAC, it supports common commercial and light industrial power needs, while three-wire grounding ensures safe operation across general-purpose outlets and service feeds. Pairing with EZLink modular devices streamlines panel design, simplifies inventory management, and lowers total cost of ownership over traditional fixed-outlet solutions.
Get a Quick Quote for a Eaton EZ5262CHGN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CHGN?
Enquire Now
FAQs
Plan for a panel-ready mount by confirming knockout locations and using a standard one- or multi-gang box compatible with the device’s 1.46 inch width. Wire the EZ5262CHGN with three conductors for a 125 VAC, 15A circuit and maintain proper grounding through the three-wire configuration. Verify the green finish and clear labeling to support quick visual inspection during commissioning and routine maintenance.
Yes. With 15A at 125V, NEMA 5-15R, and cULus NOM plus W-C-596G certifications, the receptacle is designed for harsh environments and regulated installations. It fits standard panel depths and EZLink modular devices, enabling straightforward upgrades without rewiring. Its compact dimensions help maximize panel density while preserving safe grounding and reliable operation across typical industrial duty cycles.
EZ5262CHGN is cULus Listed and NOM, with Federal Specification W-C-596G, reflecting compliance with US and Canadian standards. These certifications simplify procurement and audits, demonstrate safety under normal and fault conditions, and align with common end-user regulatory requirements for panel devices. For regulated environments, the certifications reduce qualification time and reassure stakeholders about long-term reliability.
Dimensions are 1.46 inches wide, 4.2 inches high, and 1.09 inches deep, with an approximate weight of 0.2 pounds. These metrics support dense panel layouts and easier routing in metal enclosures. When planning, consider clearance for wiring and access behind the receptacle to maintain serviceability.
EZ5262CHGN’s modular design reduces rework time during panel changes and line upgrades by letting electricians swap or reconfigure outlets without a full device replacement. This translates to shorter downtime, lower spare-parts inventory, and improved first-pass installation success. Over the life of a panel, these gains contribute to a lower total cost of ownership and faster project payback.
