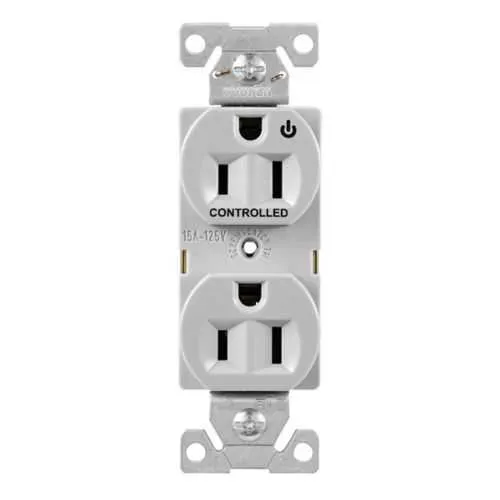

Eaton EZ5262CHGY EZLink duplex receptacle - cULus Listed
Part Number: EZ5262CHGY
Quick Summary
The Eaton EZ5262CHGY EZLink duplex receptacle provides reliable, modular outlet control for general-purpose electrical connections in commercial and industrial spaces. Users often contend with cramped spaces, wiring complexity, and the need to meet strict electrical certifications without lengthy installation times. The unit is cULus Listed and NOM, with Federal Specification Classification W-C-596G—a combination that supports regulatory compliance across North American markets. As a modular gray 15 A 125 Vac option, EZLink streamlines panel layouts for commercial and light-industrial settings, saving installation time and reducing wiring errors. This translates to faster changeouts, easier maintenance, and improved traceability in control panels and equipment racks.
Product Information
Extended Description
EZ5262CHGY Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, half controlled, NEMA 5-15R, three-wire, gray
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CHGY
UPC
032664010408
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Gray
Feature: Modular duplex receptacle design with NEMA 5-15R configuration offers a compact footprint and flexible mounting in standard enclosures. Business Impact: Reduces panel crowding, simplifies wiring runs, and accelerates wiring schematics during project kickoff. Application: Ideal for control panels, data cabinets, and equipment enclosures in offices and workshops. Feature: cULus Listed and NOM certifications with Federal Specification W-C-596G provide regulatory alignment. Business Impact: Lowers AHJ rework risk, speeds approvals, and supports cross-border deployments. Application: US and Mexico installations requiring compliance with North American electrical standards. Feature: 15 A at 125 Vac, three-wire arrangement ensures compatibility with general-purpose loads and NEMA 5-15R devices. Business Impact: Broad device compatibility reduces part variety and stocking requirements, cutting inventory costs. Application: Office equipment, power tools, and light machines in industrial settings. Feature: Half-controlled design offers selective outlet control within the same receptacle. Business Impact: Enables energy management and motor control strategies while maintaining convenience. Application: Enclosures where one outlet is managed by a switch or controller. Feature: Lightweight, gray modular device that integrates with Eaton EZLink ecosystem. Business Impact: Faster commissioning, scalable panel designs, and straightforward upgrades. Application: Modular wiring schemes in commercial and light-industrial facilities.
Get a Quick Quote for a Eaton EZ5262CHGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CHGY?
Enquire Now
FAQs
EZ5262CHGY is designed for standard electrical boxes and aligns with the EZLink modular devices family. Plan for a three-wire connection (hot, neutral, ground) to a NEMA 5-15R receptacle and ensure mounting in a suitable enclosure with proper clearances. The half-controlled feature enables selective outlet control, so coordinate with any upstream controllers or switches to optimize energy management and panel layout while maintaining code compliance.
It provides 15A at 125V with a NEMA 5-15R configuration in gray, which is a standard solution for general-purpose loads in commercial and light-industrial environments. Certified as cULus Listed and NOM with W-C-596G, it supports regulatory compliance and reliability in busy facilities, helping reduce rework and inventory complexity for maintenance teams.
The half-controlled design allows one receptacle to be independently controlled by a switch or controller while the other remains always on. This enables selective load management, improves energy efficiency, and supports safer equipment testing and startup sequences without compromising convenient access to a second, unswitched outlet.
EZ5262CHGY carries cULus Listed and NOM certifications, along with Federal Specification W-C-596G. This combination supports compliance across US and Mexican markets, simplifying approvals, reducing variance in documentation, and aligning with government and industry standards for electrical equipment.
Investing in EZLink modular receptacles can shorten commissioning times, reduce wiring errors due to standardized modular components, and lower maintenance costs. The compatibility with the EZLink ecosystem enables scalable panel designs, minimizes part diversity, and improves traceability, delivering measurable efficiency and compliance gains over project lifecycles.
