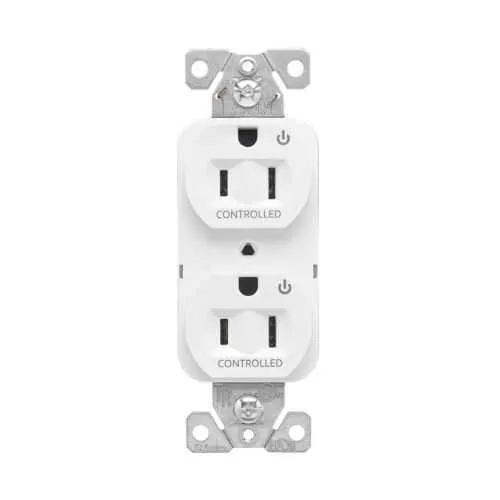

Eaton EZ5262CHLA EZLink duplex receptacle - cULus
Part Number: EZ5262CHLA
Quick Summary
The Eaton EZ5262CHLA EZLink modular duplex receptacle is a reliable 15A, 125V outlet for residential and light commercial circuits. Installers often struggle with bulky backboxes, wiring mistakes, and mismatched device types in crowded panels. This device is cULus listed with NOM and Federal Specification W-C-596G, ensuring compliance and predictability across sites. Designed for 3-wire connections and NEMA 5-15R outlets, it supports standard wiring practices and quick replacement. The compact footprint paired with a light almond finish and modular EZLink design simplifies stocking, procurement, and field install, delivering faster energization and reduced labor costs.
Product Information
Extended Description
EZ5262CHLA Eaton: Eaton EZLink modular duplex receptacle, 15 A, 125 Vac, 60 Hz, half controlled, NEMA 5-15R, three-wire, light almond
Product Name
Eaton EZLink modular duplex receptacle
Catalog Number
EZ5262CHLA
UPC
032664010415
Product Length/Depth
1.09 in
Product Height
4.2 in
Product Width
1.46 in
Product Weight
0.2 lb
Certifications
cULus Listed NOM Federal Specification Classification W-C-596G
Amperage Rating
15A
Voltage rating
125 Vac
Number of wires
3
Color
Light Almond
Feature: 15A, 125Vac operation with a three-wire NEMA 5-15R receptacle. Business impact: aligns with standard branch-circuit practices, delivering predictable performance and safer grounding. Application: ideal for wall outlets and modular panel installs in residential and light-commercial environments where reliable power distribution matters. Feature: Half-controlled operation allows one receptacle half to switch while the other remains energized. Business impact: enables targeted lighting control and energy management without extra wiring or devices, reducing installation time. Application: well-suited for offices, reception areas, and classrooms where task lighting and power are required in targeted zones. Feature: Compact dimensions—1.09 in depth, 1.46 in width, 4.2 in height—with a light almond finish. Business impact: the small footprint reduces box-fill, simplifies installs in crowded enclosures, and improves aesthetics. Application: compatible with standard backboxes and modular EZLink families for quicker retrofits and easier maintenance. Feature: cULus Listed, NOM, and Federal Specification W-C-596G certifications. Business impact: regulatory compliance across multiple markets, with consistent quality and traceability for procurement teams. Application: essential for code-compliant installations and multi-site projects in residential and light commercial sectors. Feature: EZLink modular design supports fast replacement and streamlined stocking. Business impact: reduces field labor, minimizes downtime, and lowers total cost of ownership through standardized parts. Application: beneficial for panel builders and integrators managing modular device suites in distributed electrical installations.
Get a Quick Quote for a Eaton EZ5262CHLA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EZ5262CHLA?
Enquire Now
FAQs
To install EZ5262CHLA, mount the device in a standard wall box and connect three wires to the hot, neutral, and ground terminals, ensuring proper polarity. The 1.09 in depth helps minimize box fill, and the NEMA 5-15R receptacle accommodates typical plugs. Use the EZLink modular framework to pair with compatible modules for a clean, scalable installation.
EZ5262CHLA is rated for 15A, 125Vac with three wires and a NEMA 5-15R configuration. It features half-controlled operation to allow one receptacle half to switch while the other remains energized, enabling flexible lighting control without additional wiring. This configuration supports standard residential and light-commercial circuits and is certified to cULus, NOM, and W-C-596G.
Yes. The unit is suitable for residential kitchens, offices, break rooms, and light commercial panels where modular devices improve installation efficiency. Its compact dimensions fit crowded enclosures, and the light almond finish provides a clean aesthetic. Use with EZLink modules for scalable, serviceable power distribution in varied environments.
The EZ5262CHLA carries cULus Listed, NOM, and Federal Specification W-C-596G certifications. These indicate compliance with safety and Canadian requirements and U.S. federal specifications, ensuring compatibility with regulated projects and multi-site rollouts. They support procurement by reducing compliance risk and speeding site acceptance for electrical installations.
The modular EZLink design supports fast replacement and streamlined stocking, reducing field labor during upgrades or repairs. The 15A, 125Vac rating ensures broad applicability across sites, while the compact footprint minimizes wiring changes. Overall, it lowers total cost of ownership by simplifying maintenance and improving uptime.
